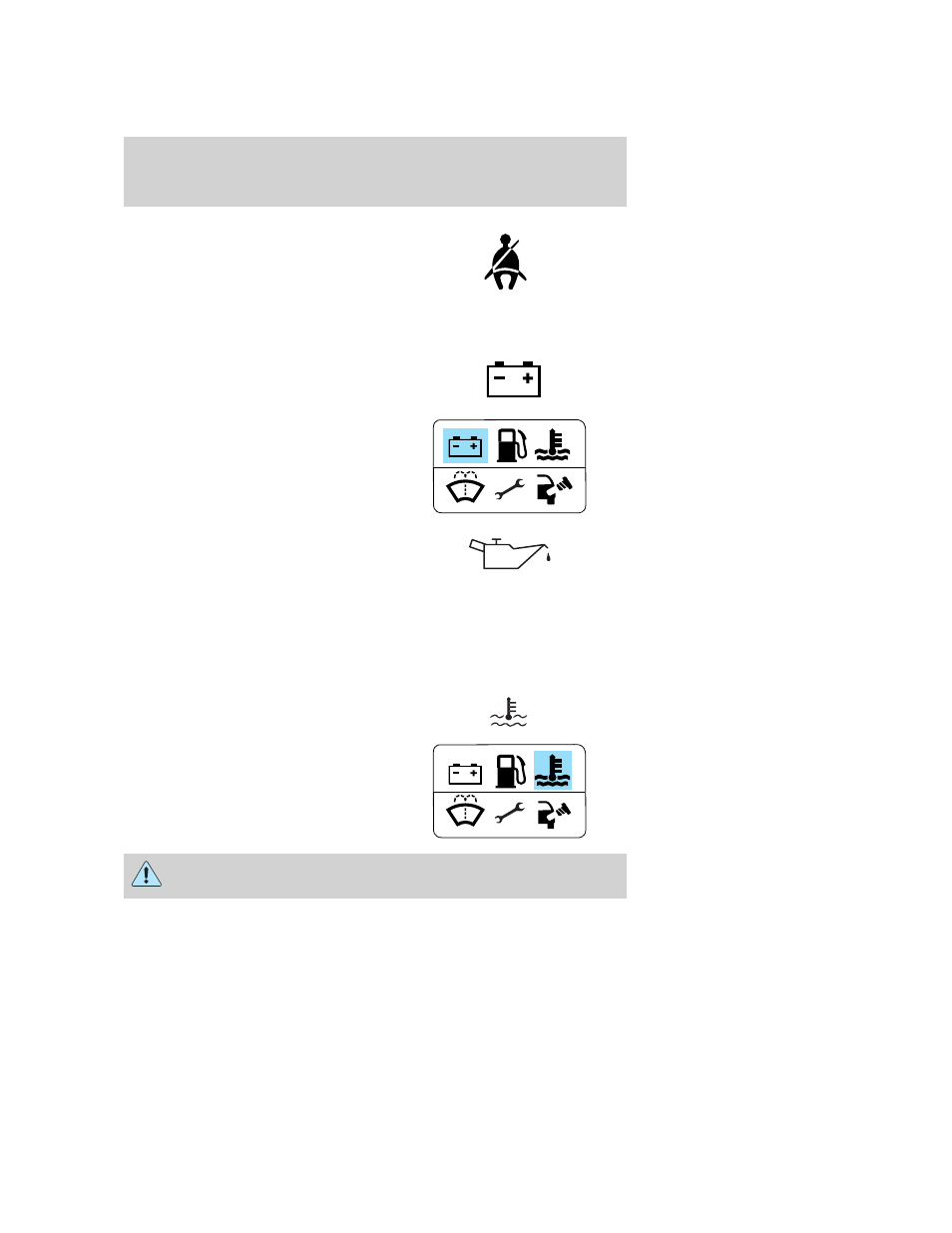

Safety belt: Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
the Seating and Safety Restraints
chapter to activate/deactivate the Belt-Minder
chime feature.
Charging system: Illuminates when the battery is not charging properly.
• Standard instrument cluster
• Optional instrument cluster
Engine oil pressure: Illuminates
when the oil pressure falls below the
normal range. Check the oil level
and add oil if needed. Refer to
Engine oil in the Maintenance and Specifications chapter.
Engine coolant temperature: Illuminates when the engine coolant
temperature is high. Stop the vehicle as soon as possible, switch off the
engine and let cool. Refer to Engine coolant in the Maintenance and
Specifications chapter.
• Standard instrument cluster
• Optional instrument cluster
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
2009 Explorer (exp)
Owners Guide, 1st Printing
USA (fus)
Instrument Cluster
15
