Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
Note: To remove the power distribution box cover, the battery negative
cable clip needs to be removed first. Pull up on the clip to detach it from
the battery tray.

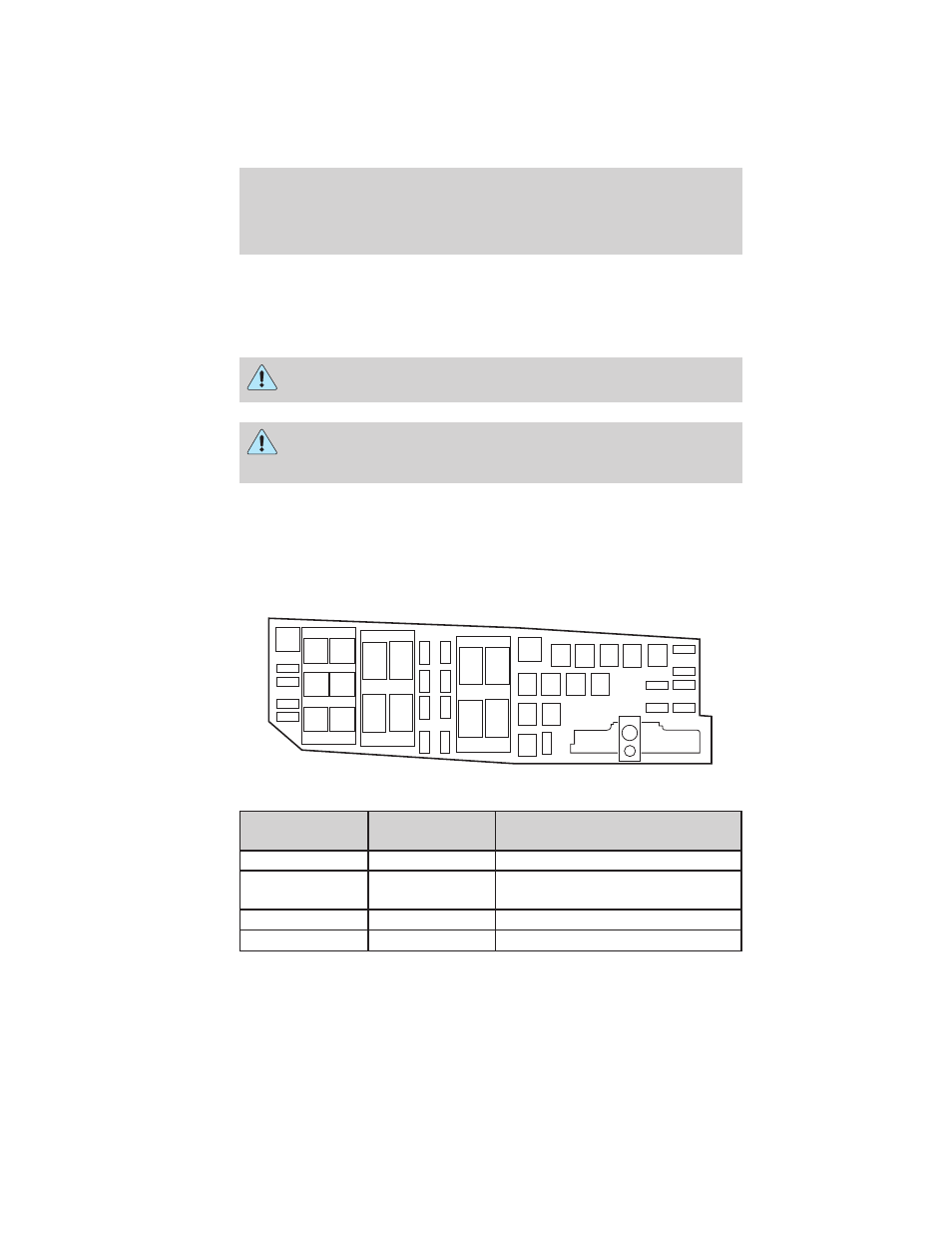

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected circuits
1 — Not used
2 40A** Passenger compartment fuse
panel
3 20A** Ignition switch
4 20A** Fuel pump
25 24
22 23
26 27
28 29
21A 21B
21C 21D
30A 30B
30C 30D
31A 31B
31C 31D
31E 31F
32
33
34
35
36
15 16 17 18 19
20
10 11 12 9
3 4
1 2
5 6
7 8
13
14
Roadside Emergencies
180
