HIGH-VOLTAGE SERVICE DISCONNECT
The high-voltage service disconnect shuts off power from the
high-voltage battery.
Disabling the High-Voltage Battery
Note: There is a disconnect circuit in your vehicle. Disconnecting the
circuit will automatically disable the high-voltage battery.
To disable the high-voltage battery and stop all high-voltage electric
activity in the vehicle you can access high-voltage disconnect circuit. To
do this, you must unplug the circuit from the circuit port that is
connected to the high-voltage battery.
In full hybrid vehicles the high-voltage disconnect circuit is located
behind the rear fold-down seats, near the left side of the vehicle. In
plug-in hybrid vehicles the disconnect circuit is located behind the rear
fold down seats near on the right side of the vehicle. To access this
circuit:
1. Fold down the rear seats.

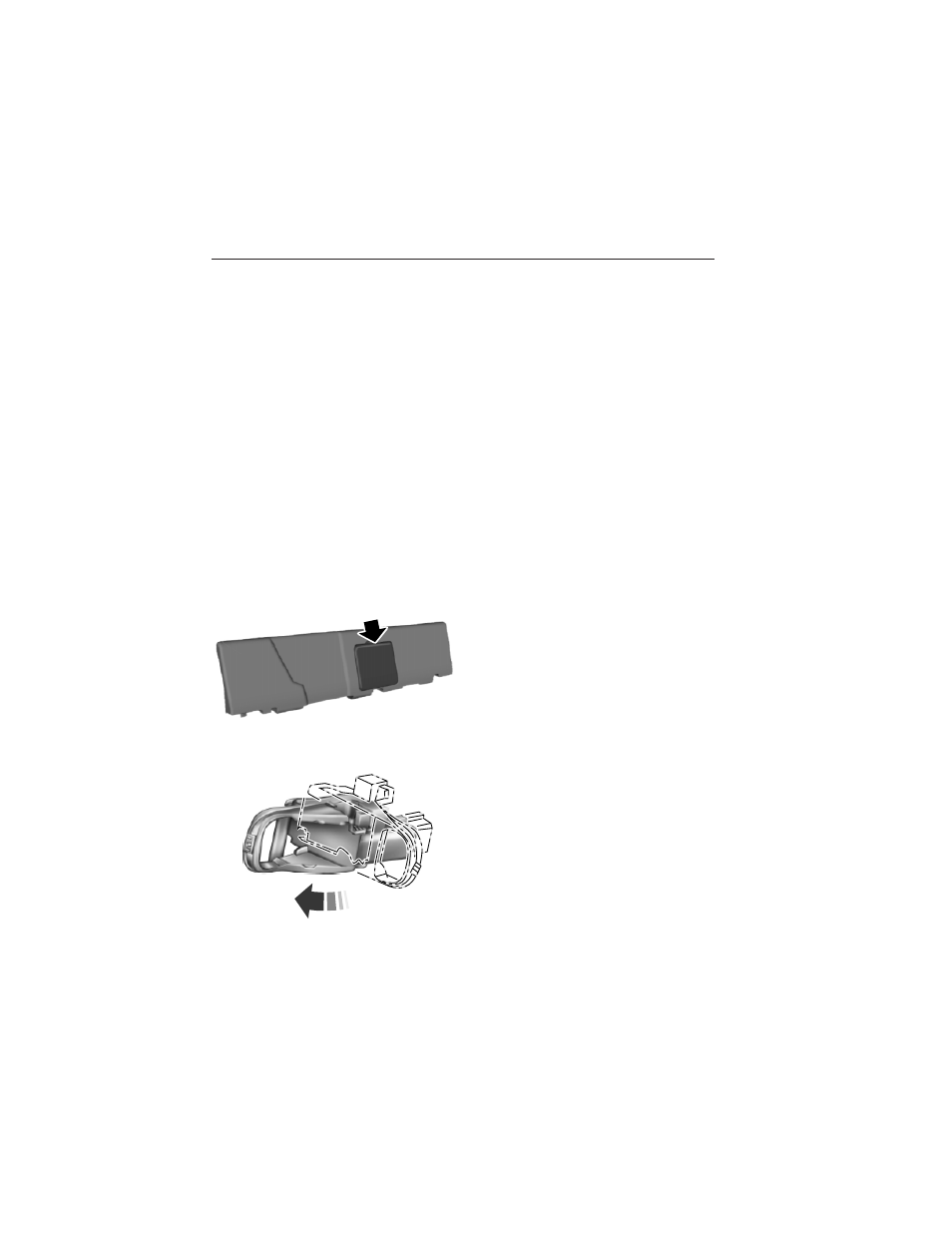

2. Remove the cover panel. A cut
out area will be visible which allows
your hand access to the circuit.
3. Slide the handle on the service
disconnect outboard.
• On C-MAX vehicles, slide the
service disconnect handle to the
left.
