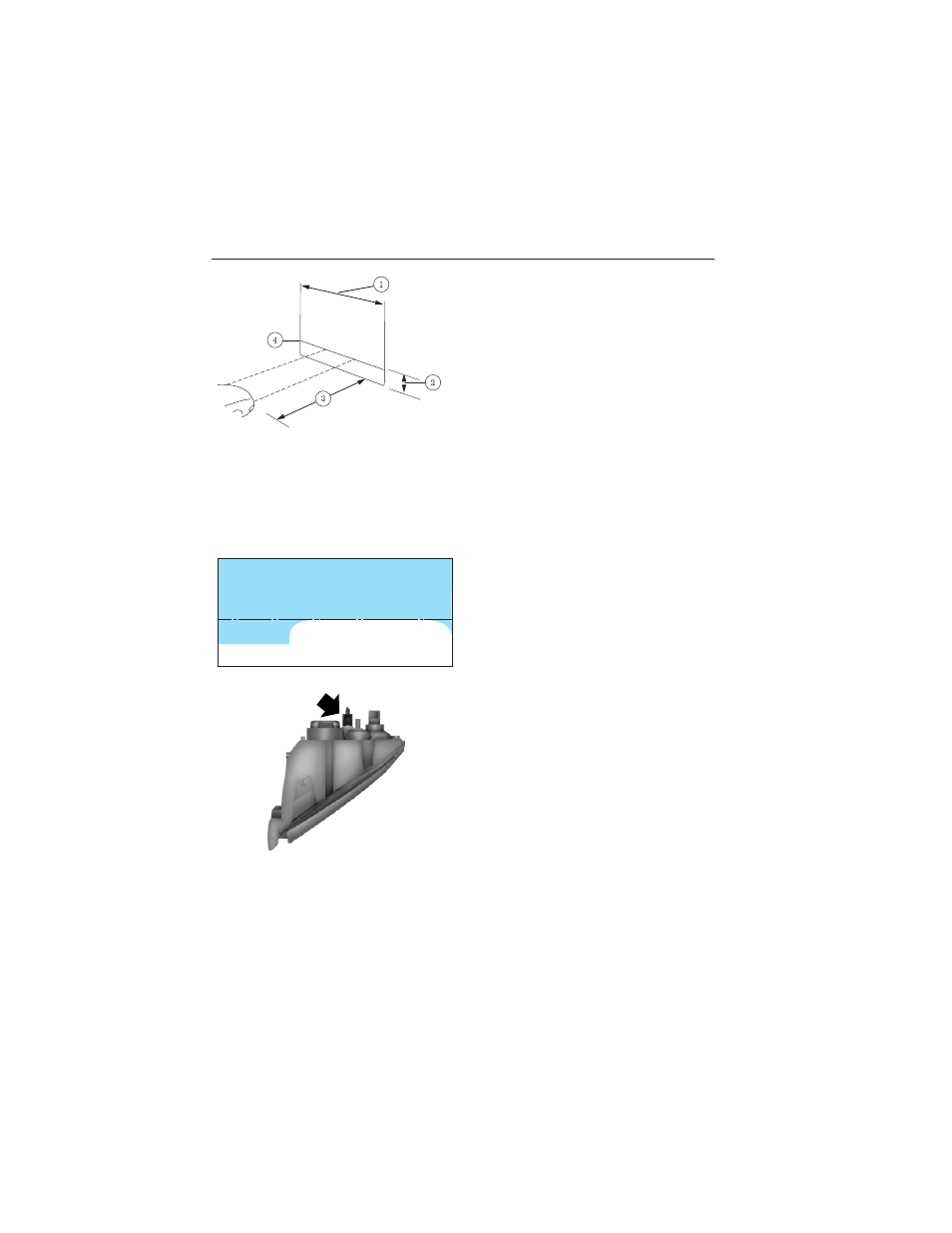

• (1) 8 ft (2.4 m)
• (2) Center height of lamp to
ground
• (3) 25 ft (7.6 m)
• (4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 ft (2.4 m)
horizontal reference line on the
vertical wall or screen at this height
(a piece of masking tape works well). The center of the lamp is marked
by a 3 millimeter circle on the headlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood. To see a clearer light pattern for adjusting, block the
light from one headlamp while adjusting the other.
On the wall or screen, you will
observe a flat zone of high intensity
light located at the top of the right
hand portion of the beam pattern. If
the top edge of the high intensity
light zone is not at the horizontal
reference line, the headlamp will
need to be adjusted.
4. Locate the vertical adjuster on
each headlamp.
5. Then use a 7 mm Allen wrench or a Phillips screwdriver to adjust the
vertical aim of the headlamp. HORIZONTAL AIM IS NOT REQUIRED
FOR THIS VEHICLE AND IS NON-ADJUSTABLE.
6. Close the hood and turn off the lamps.
