C. Crimp the ring terminals to the red and green wires of the WH-1006 Wire
Harness. Attach red wire to the positive terminal of the battery and the
green terminal to the negative terminal. The use of a corrosion preven-
tative on electrical connections is recommended.
D. Secure relay and fuse in an upright position, as shown, to prevent
moisture from entering. Di-electric grease may be applied to prevent
corrosion.
FUSE
RELAY

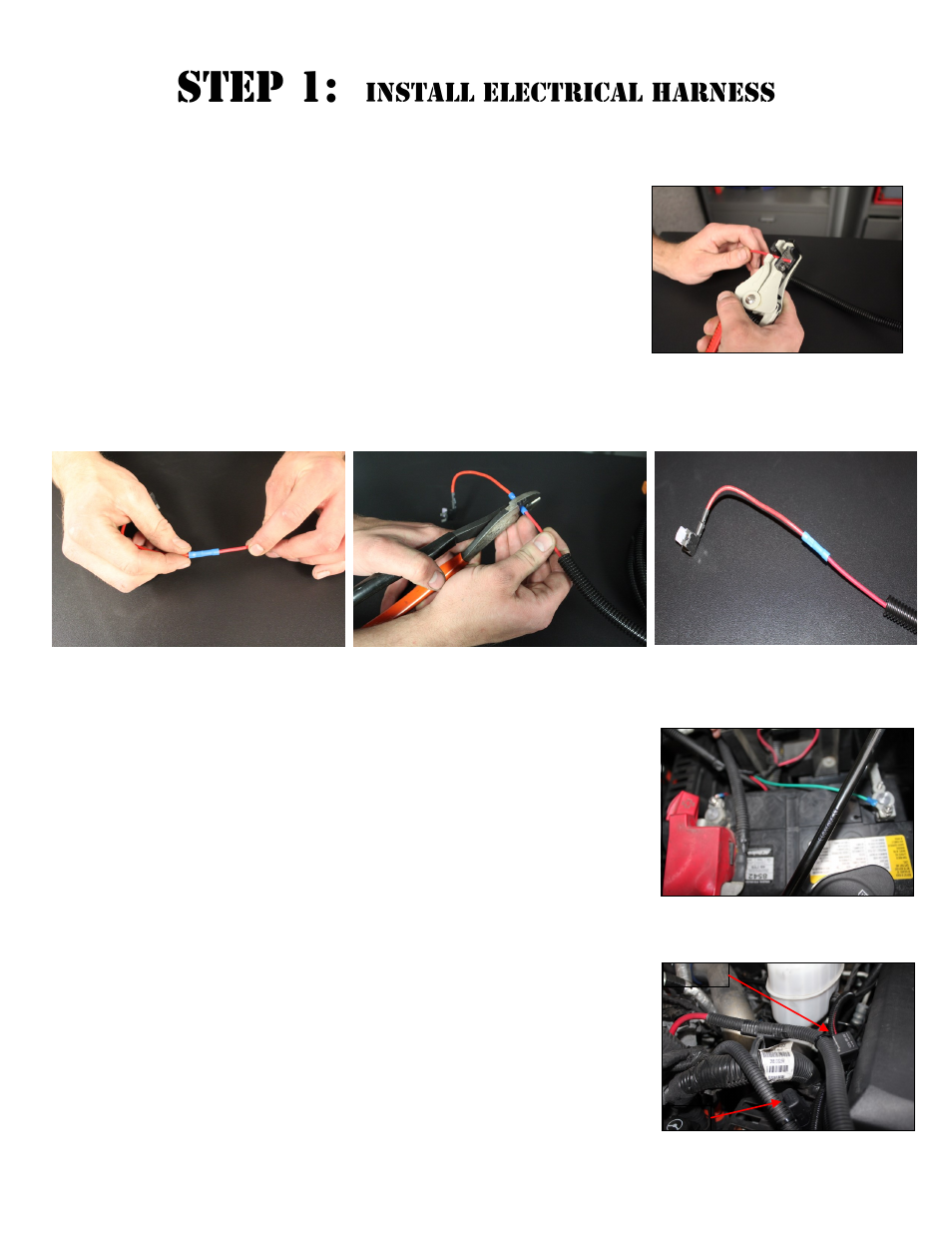

The installation of the electrical harness is done first, allowing power to be applied to the pump for
lubrication purposes later in the installation.
A. Using wire stripping tool remove excess insulation off the add-a-fuse
and the WH-1006.
B. Place 46044 with butt connector to the exposed wire from the WH-1006 into butt connector. Using
crimping tool connect 46044 and WH-1006 with butt connector. Install 46260 to 46044 bottom slot
(opening that is near the spade).
