Miracle Water Installation & Operation Manual

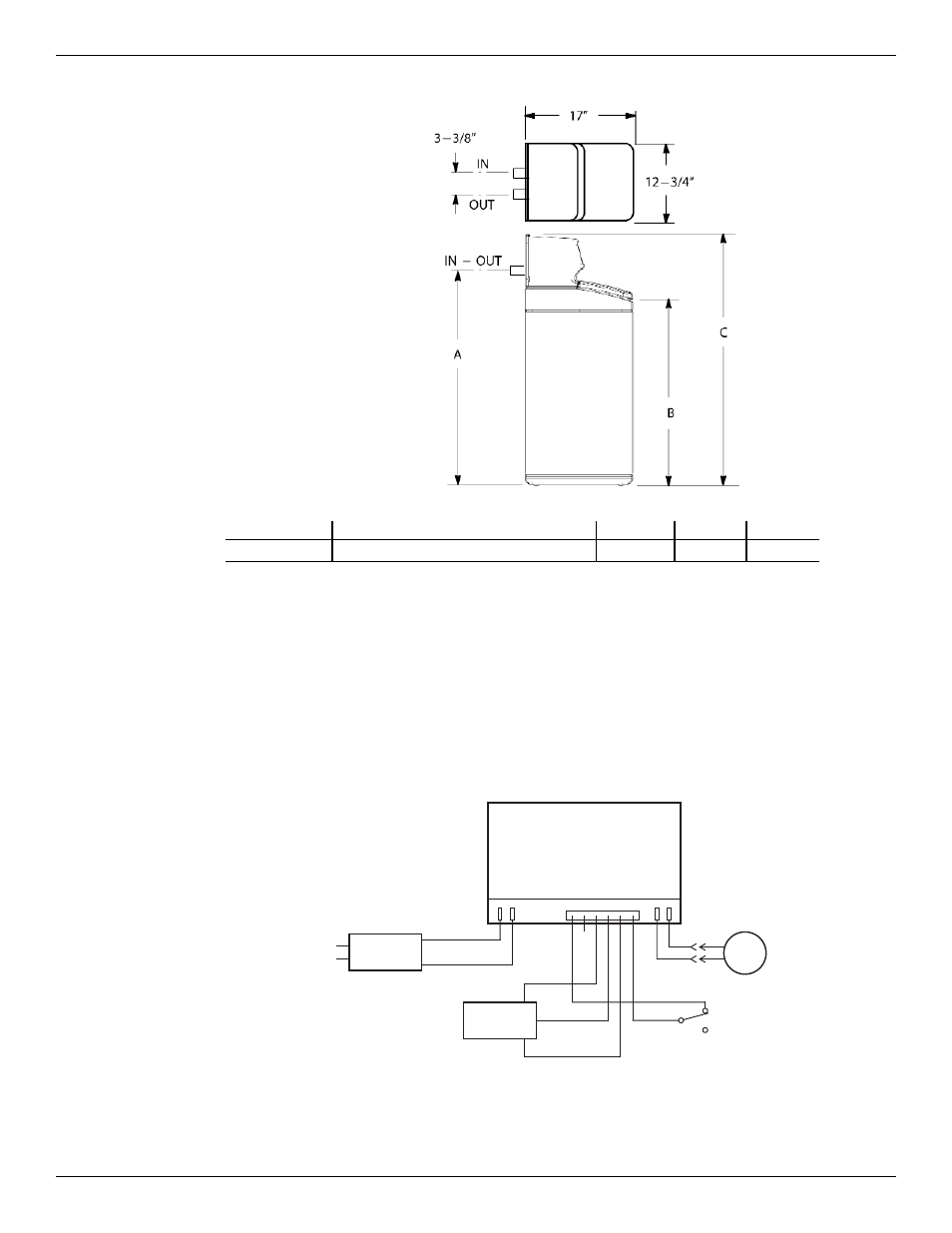

Softener Dimensions
MODEL
NOMINAL RESIN TANK SIZE
A
B
C
MW-30
9” Dia. x 35”
37”
33”
42”
Wiring Schematic
Salt Storage Capacity
MW-30 - 150 lbs.
Back of Electronic
Controller (PWA)
Pwr.
In
Position/
Turbine
Motor
28V DC
Power
Supply
120V AC
60Hz
Valve
Motor
Turbine
Sensor
+5
OUT
GND
NO
Position
Switch
NC
C
org
grn
