SKU 66127 For technical questions, please call 1-800-444-3353. Page 7
speciFications
Charger Input 120V, 60 Hz,
Power Output
19.2 VDC NiCd
Battery, 1.7 aH
Drill Speed
0 - 600 RPM
Forward/Reverse
Chuck Type 3/8” Keyless
Torque Settings
15 Standard Setting
+ One Drill Setting
Trigger Settings Forward/Reverse
unpacKing
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at the number shown on the
cover of this manual as soon as possible.
instructions For
putting into use
read the entire important
saFetY inFormation
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
to preVent
serious injurY
From accidental
operation:
turn the Forward/reverse
switch of the tool to its center,
locked position and remove
the Battery before assembling
or making any adjustments to
the tool.
note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
charging the Battery
The Battery Pack (15) must be 1.
charged for three to five hours before
use. Do not charge the Battery Pack
longer than five hours; the Battery
Pack and/or Charger (21) may be
damaged. Do not leave the Charger
unattended while charging. Charge
the Battery on a inflammable surface.
Move the Forward/Reverse Switch of
2.
the Drill to its center, locked position.
Push the Battery Release Button on
3.
top of the Battery down, and slide the
Battery off the handle of the Drill.

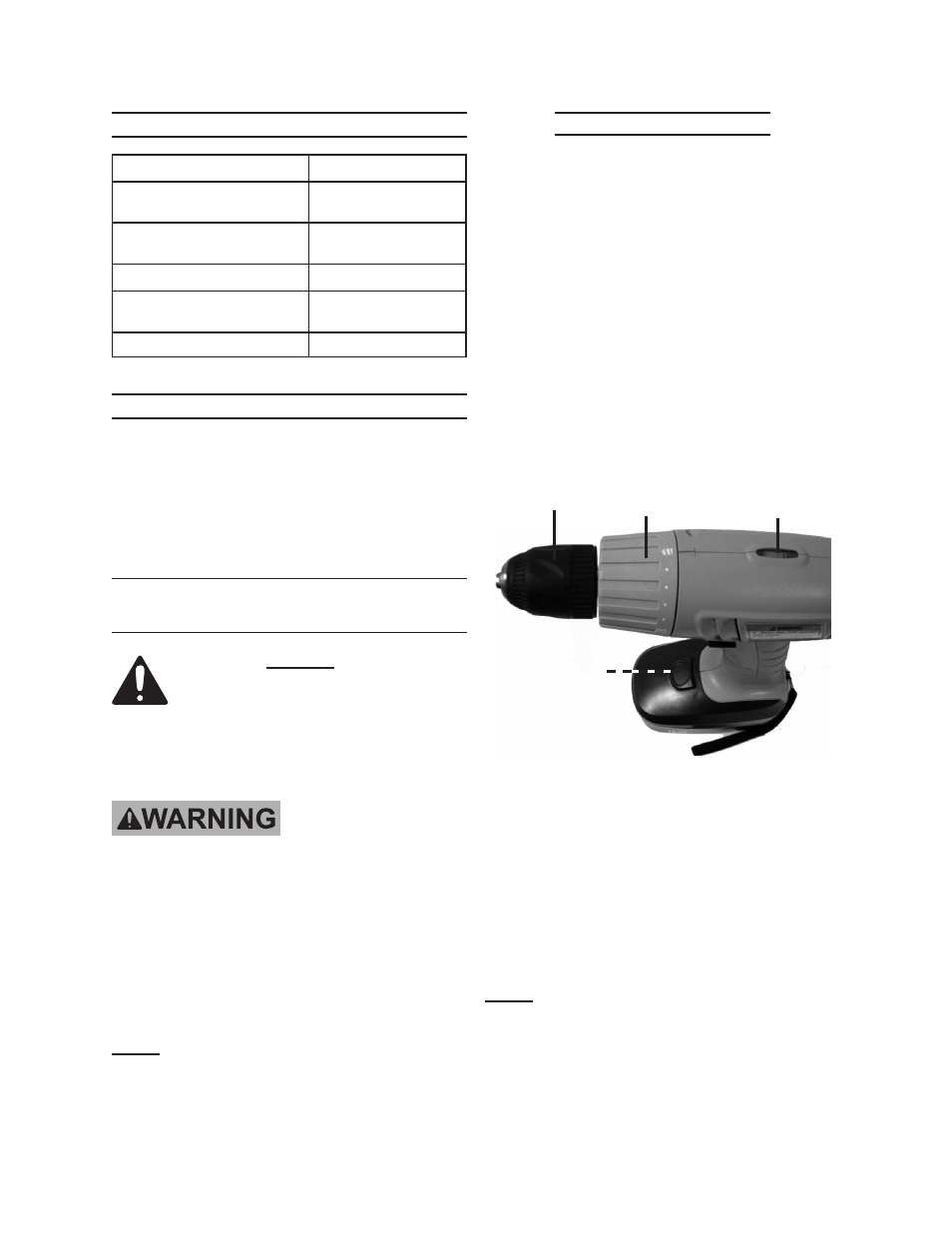

chuck (4)
torque
selector
level
(18)
Battery
release
Button
Slide the Battery onto the Charger. 4.
Plug the Charger into a grounded120
volt electrical outlet.
Verify that the charging indicator light
5.
comes on. If it does not come on,
check the power cord connection.
Charge the Battery until the charging
indicator light turns off.
note: While charging, the Battery and
Charger may become warm to the
touch. This is normal, and does not
indicate a problem.
