Fixing Instructions

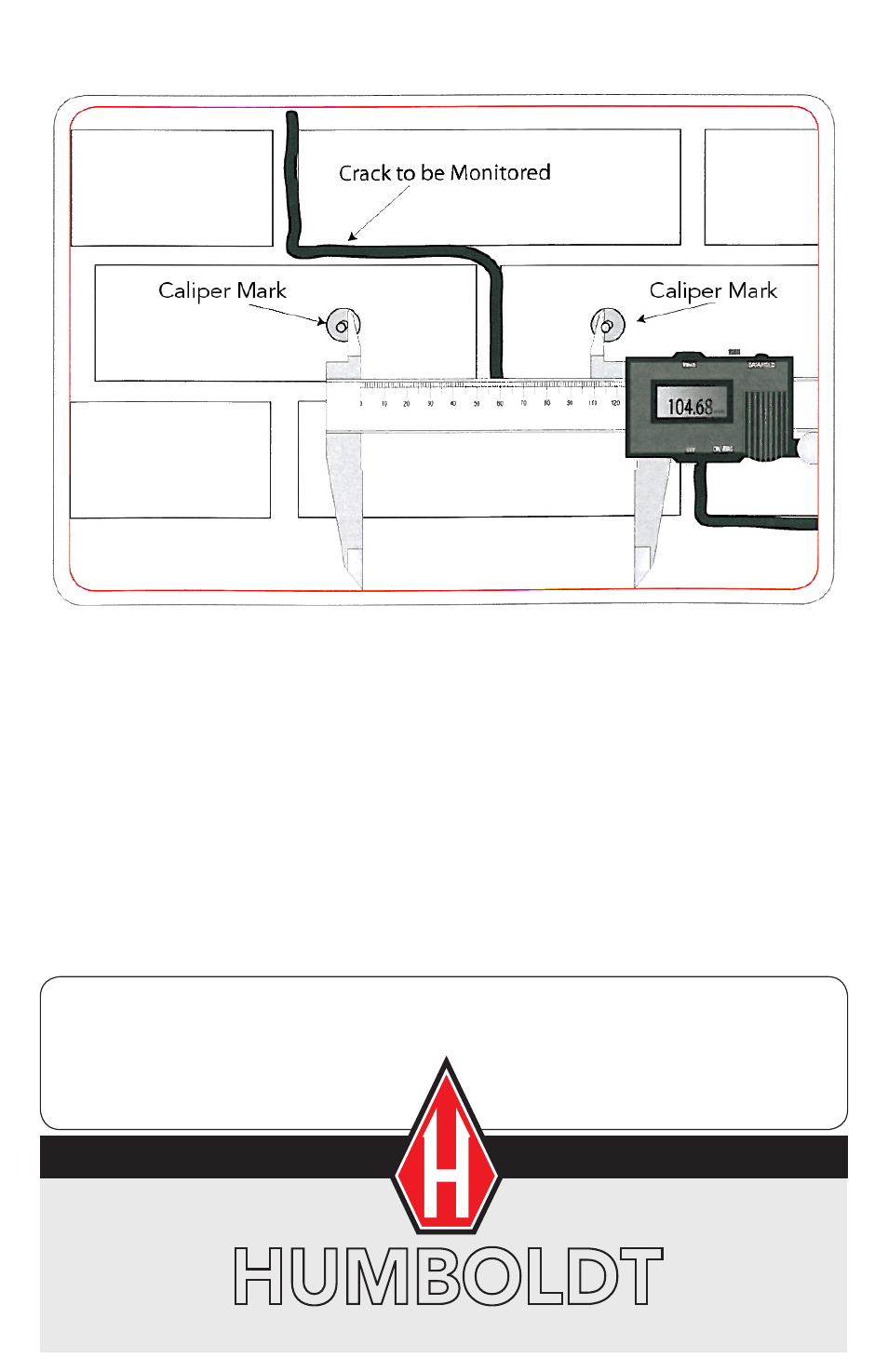

1. Fix the Caliper Marks with adhesive about 80mm to 100mm apart on either
side of the crack to be monitored.
2. The line of Caliper Marks should be perpendicular to the crack.
3. Allow the adhesive to harden thoroughly before taking the first reading.
4. The distance between the Caliper Marks is measured by locating the top
caliper jaw on the inside of each Caliper Mark.
