Humboldt H-1356D Marshall Mechanical Compactors - Manual (Page 7)

H-1338.37
H-1338.36
H-1338.25
H-1338.25.2
H-1338.25.3
H-1338.25.1
H-1338.25.4
H-1338.26.1
H-1338.26
H-1338.27
H-1338.35 or
H-1338.38 or
H-1338.39
H-1338.35.1
H-1338.27.1 H-1338.27
H-1338.34
H-1338.33
H-1338.32
H-1338.40 H-1338.29
H-1338.40.1
H-1338.30
H-1338.28.1
H-1338.31
H-1338.28
H-1338.40A
Complete
lift catch
assembly

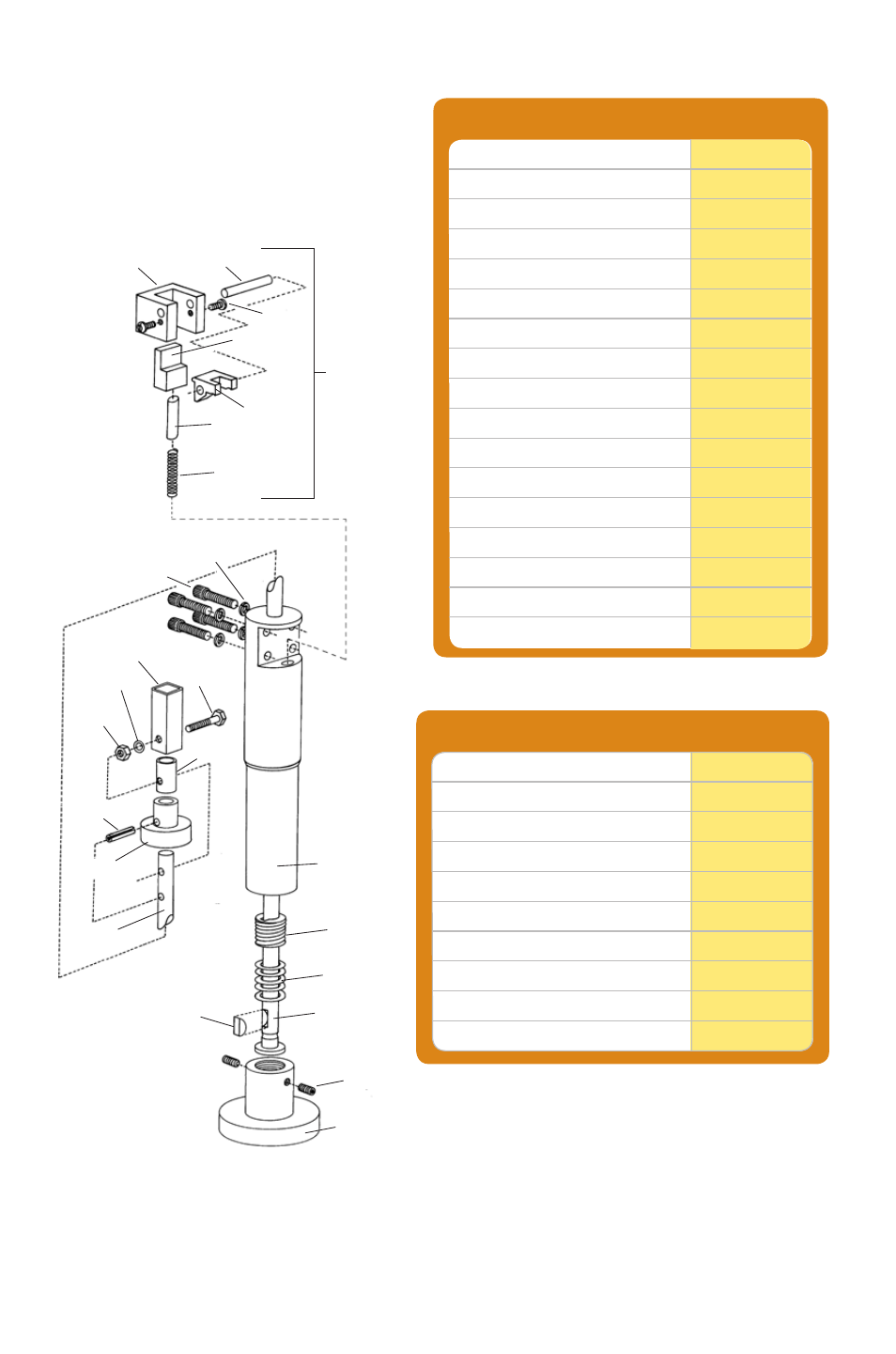

Hammer Replacement Parts
Description Model
Clevis pin with screw H-1338.29
Locator guide H-1338.25
Hex head bolt H-1338.25.1
Washer H-1338.25.2
Nut H-1338.25.3
Spacer H-1338.25.4
Hammer handle H-1338.26
Spring pin H-1338.26.1
Hammer rod H-1338.27
Key H-1338.27.1
Hammer weight (complete) H-1338.32
Plug H-1338.33
Spring H-1338.34
Hammer foot, flat H-1338.35
Hammer foot, tapered H-1338.38
Hammer foot, Canadian spec H-1338.39
Screw for foot H-1338.35.1
Lift Catch Replacement Parts
Description Model
Complete lift catch assembly H-1338.40A
Release block H-1338.28
Pin H-1338.28.1
Clevis pin H-1338.29
Lift catch H-1338.30
Spring H-1338.31
Screw H-1338.36
Washer H-1338.37
Release housing H-1338.40
Screw for release housing H-1338.40.1
