INSTALLATION MANUAL CL20 Page 35
CABINET CARD MENU SYSTEM 16.
This chapter describes the menu system of the ColorLight Cabinet Card displayed on the on-
board LCD.

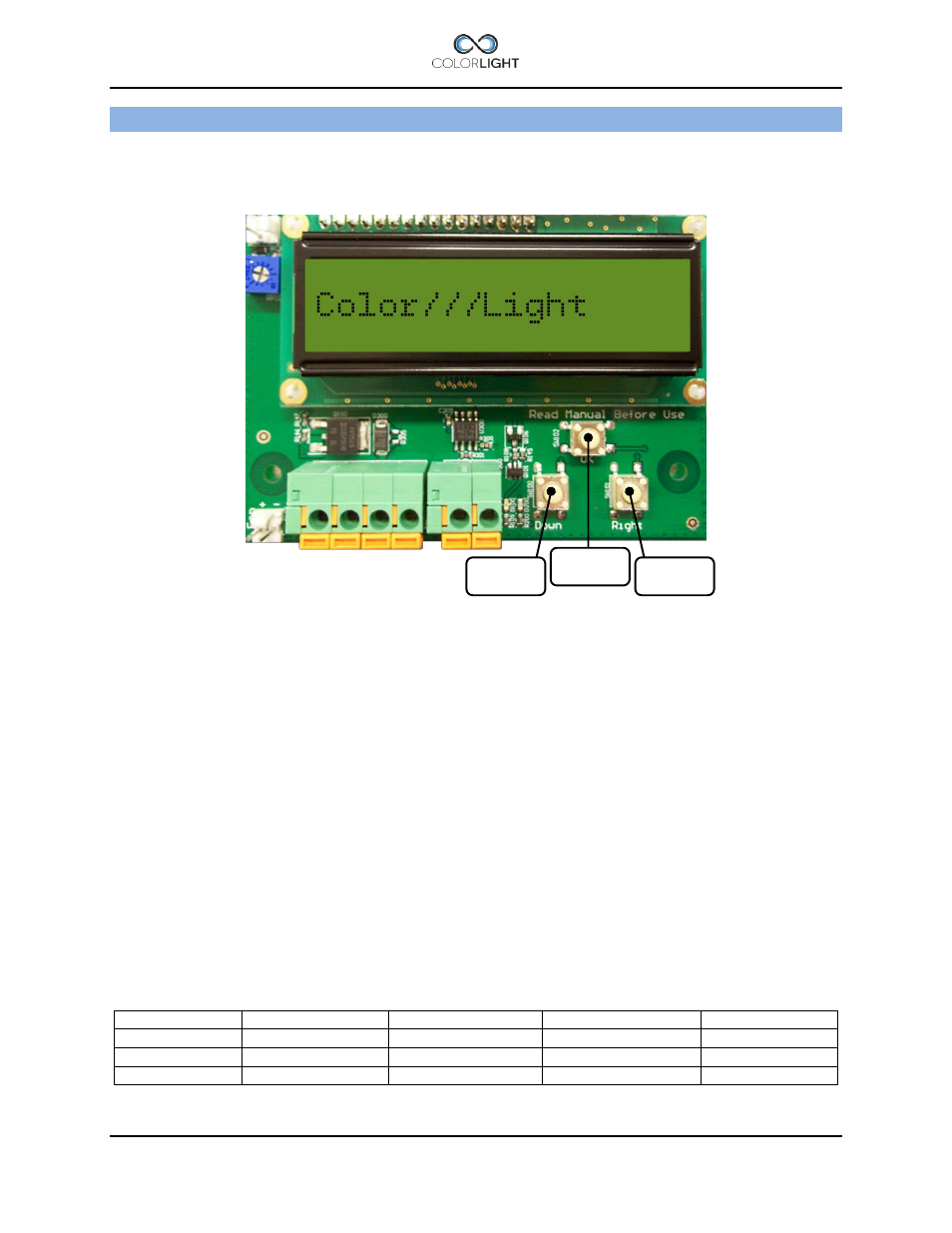

16.1 Menu navigation
The user interacts with the menu system using the three bu
ttons, the “Down” button, the “Right”
button and the “OK” button.
16.1.1 Down Button
The main function of the “Down” button is to shift between the menu categories. It also has two
alternate generic functions.
1. While in submenus listing items of various types
the “Down” button scrolls down in the list.
2. While entering a value of some sort, the “Down” button decrements that value.
16.1.2 Right Button
The main function of the “Right” button is to shift between the submenus of the selected menu
category. It also has two alternate generic functions.
1. While in submenus listing items of various types the “Right” button scrolls up in the list.
2. While entering a value of some sort, the “Right” button increments that value.
16.1.3 OK Button
The “OK” button enters and exits submenus.
1. About 1.1 MAC Address 1.2 IP Address 1.3 Light Model 1.4 SW Version
2. Diagnostics 2.1 Start 2.2 View Results
3. Usage Stats 3.1 Left Light 3.2 Right Light 3.3 Reset Left 3. 4 Reset Right
4. Settings 4.1 OP WDT 4.2 OP WDT Stats 4.3 OP WDT Reset
Right
OK
Down
