27
099403

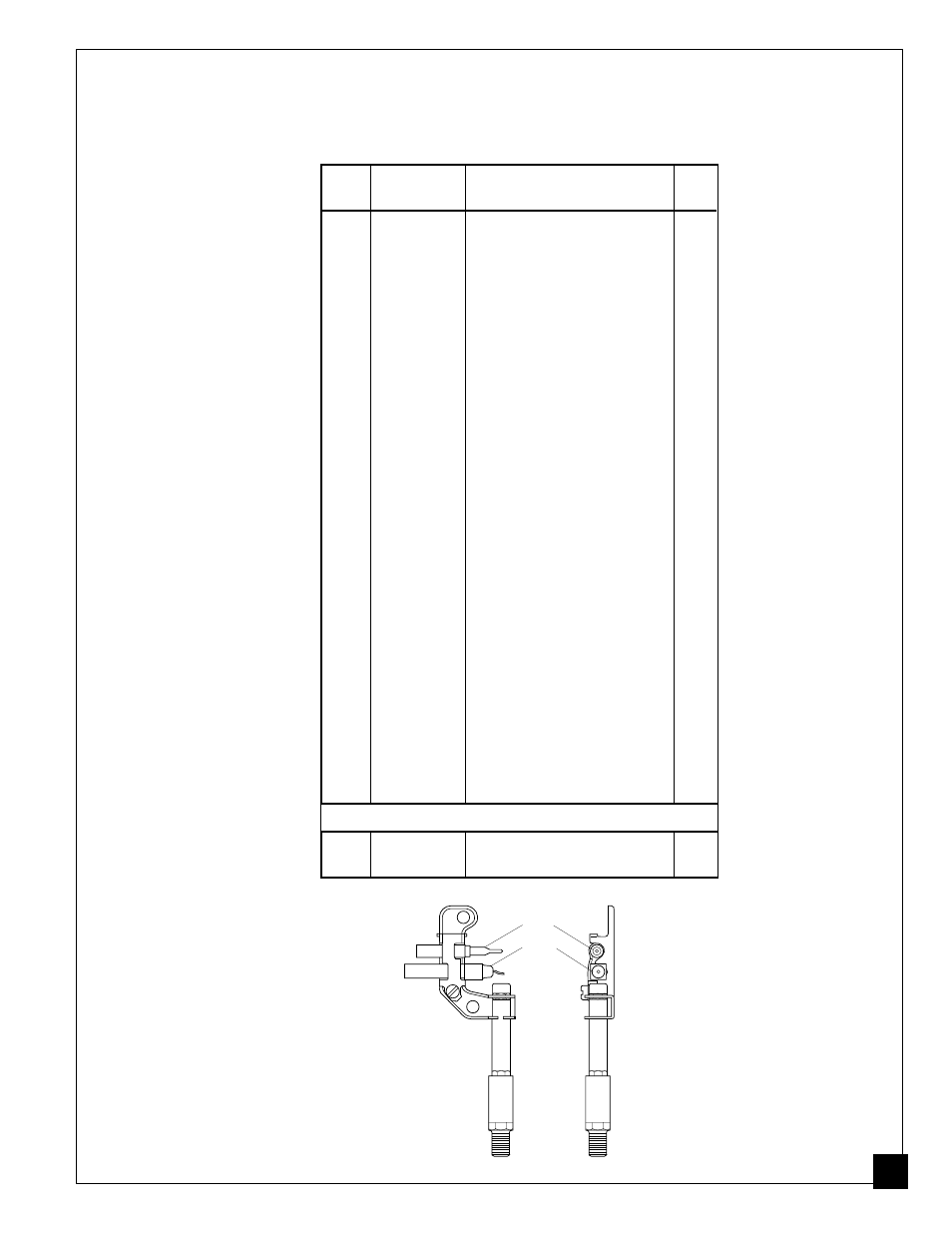

PARTS LIST
CGP10
This list contains replaceable parts used in your heater. When ordering parts, follow
the instructions listed under Replacement Parts on page 24 of this manual.
12-2
12-1
ODS/PILOT
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 098304-01 Screw, #10 x 3/8" 2
2 099467-02 Front Panel Assembly 1
3 099318-04 Grill Guard 1
4 098342-01 Grill Guard Clip 2
5 098533-03AA Bottom Glass Retainer 1
6 098260-03 Glass Panel 1
7 098532-03AA Top Glass Retainer 1
8 M11084-38 Screw, #8 x 3/8" 8
9 098352-03BR Deflector Unit 1
10 098271-03 Ignitor Cable 1
11 098249-01 Nut, M5 2
12 099440-04 ODS/Pilot Assembly 1
12-1 098514-01 Thermocouple 1
12-2 098594-01 Ignitor Electrode 1
13 099386-02 Burner 1
14 099387-05 Pilot Tubing 1
15 098251-07 Injector 1
16 099463-01 Injector Holder 1
17 099415-02 Pressure Regulator 1
18 099462-01 Burner Tubing 1
19 099391-02 Regulator Tubing 1
20 098276-01 1/8" NPT Plug 1
21 099057-01 Pressure Tap Fitting 1
22 099413-02 Control Valve 1
23 099468-01 Cabinet 1
24 097159-02 Piezo Ignitor 1
25 099393-01 Control Knob 1
26 098508-01 Valve Retainer Nut 1
27 098303-02 Screw, #6 x 5/16" 2
28 099553-01 Pilot Shield 1
29 099818-01 Internal Tooth Washer 1
PARTS AVAILABLE - NOT SHOWN
099395-03 Control Position Label 1
