Speaker B connections
The Speaker B connections on the back of the amplifier allow for a
second set of speakers to be used (i.e. speakers located in another
room). The Speaker A/B button on the front panel allows this second set
of speakers to be switched on and off.
Note: When using two pairs of speakers, use speakers with a nominal
impedance of between 6-8 ohms each minimum.
Preamp Out connections
The Preamp Out sockets are for connecting to the input sockets of a
power amplifier or active subwoofer. The diagram below shows how to
connect the amplifier to an active subwoofer via the Line In inputs on the
subwoofer.
8
Connections
When designing our amplifiers we have tried to include features that
allow you to connect your system in various ways. The inclusion of
features such as Pre-Out and Speaker B connections mean that you can
flexibly configure your system depending on your requirements.

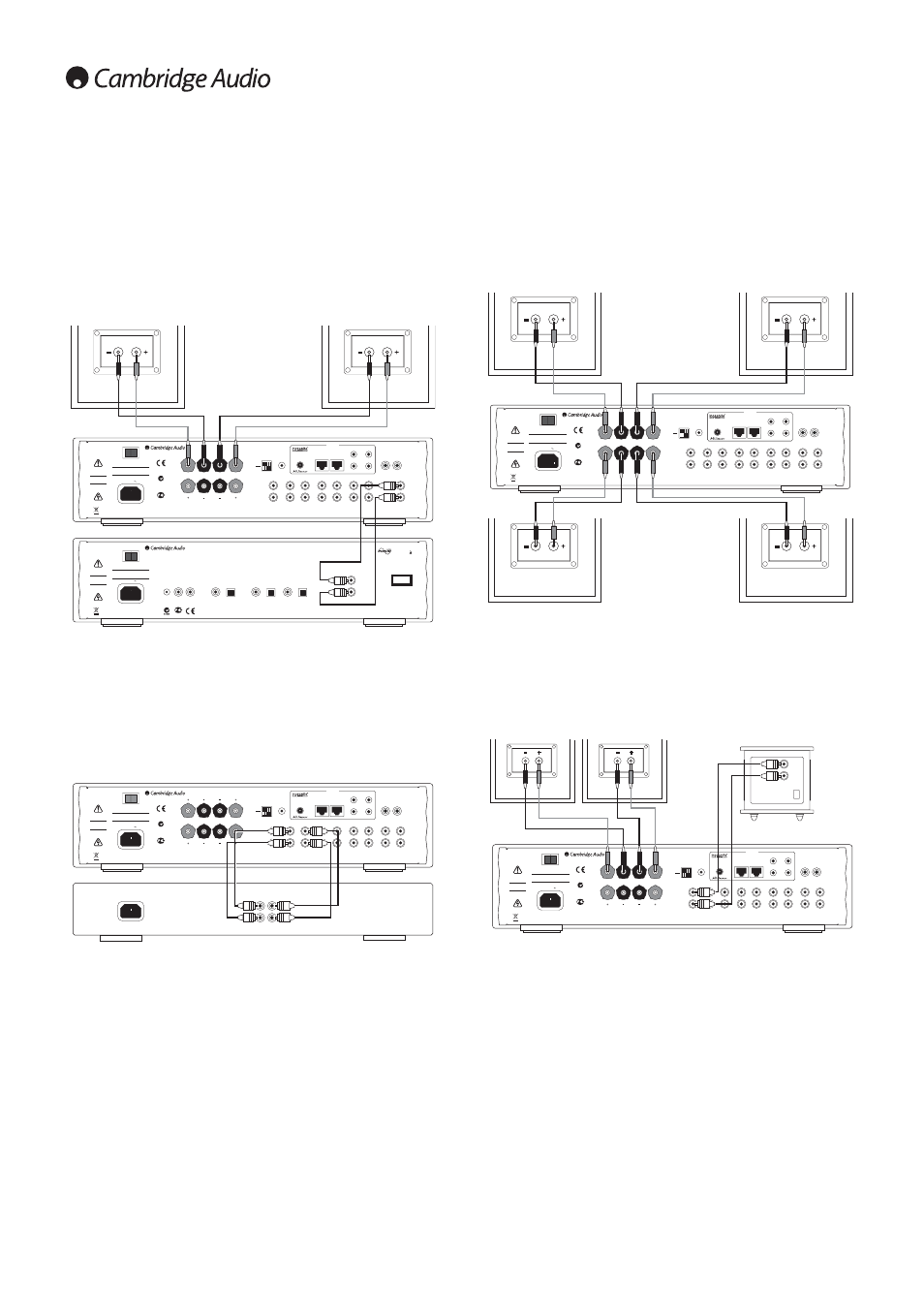

Basic connection
The diagram below shows the basic connection of your amplifier to a CD
player and a single pair of loudspeakers.
Tape connection
The diagram below shows how to connect the amplifier to a tape
recorder or other source with a record and monitor connection.
Please note that either of the tape outputs can be used (as they are both
the same signal in parallel).
