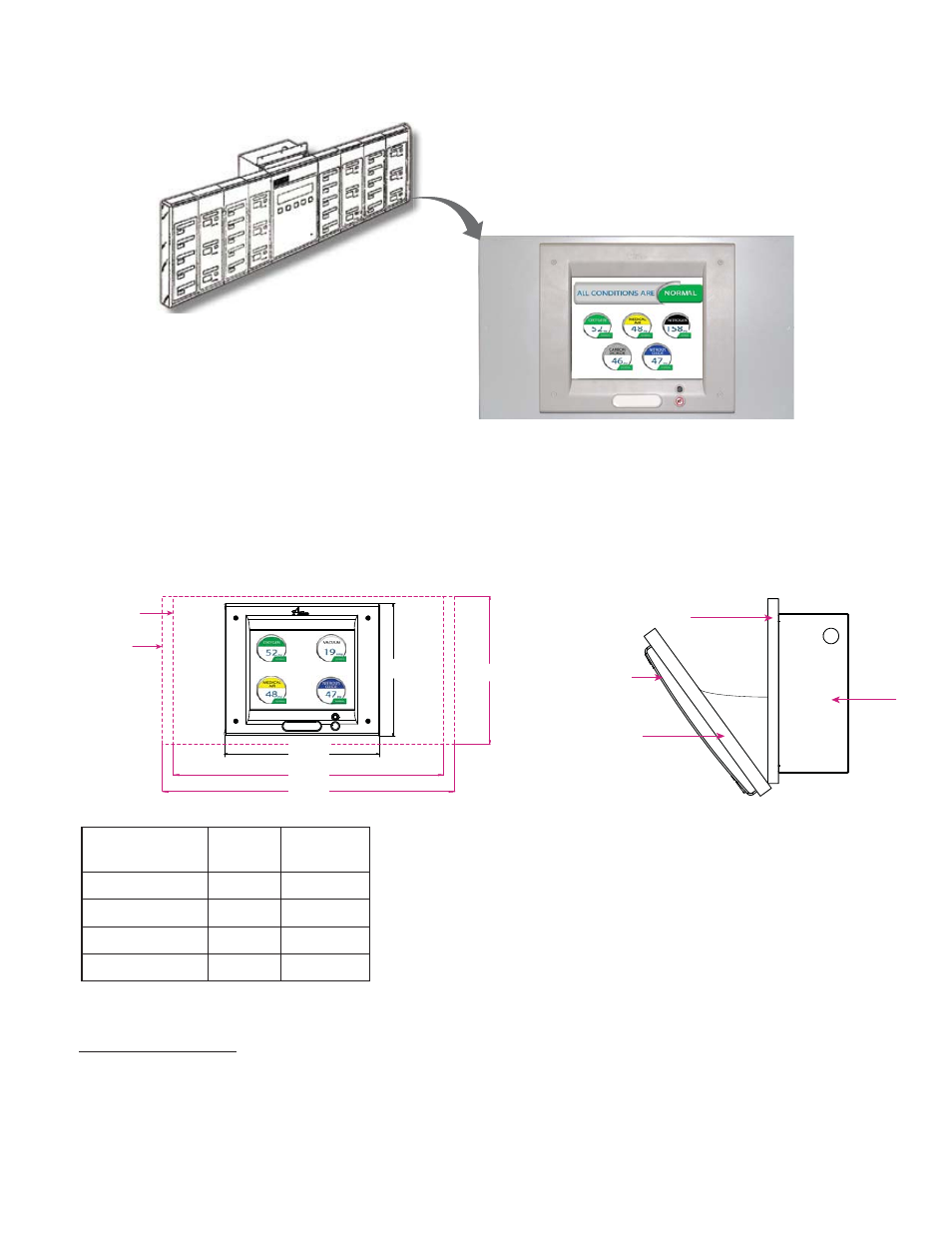

Product dimensions – Amico LCD Retro-Fit Alarm User Manual
Page 3
A complete alarm assembly conversion from Madaes to Amico.
10.25
[260.35]
Front View
11
[279.40]
12
[304.8]
A
B
Filler Frame
Filler Box
Side View
Existing
Back Box
Filler Frame
Filler Box
LCD Display
Module
Product Dimensions
Inch
[mm]
Filler Frame Part Numbers
A3P-LCD-FILLER-4
Alert-3 LCD Conversion Alarm Filler Frame 4-Station
A3P-LCD-FILLER-5
Alert-3 LCD Conversion Alarm Filler Frame 5-Station
A3P-LCD-FILLER-7
Alert-3 LCD Conversion Alarm Filler Frame 7-Station
Number of Gangs
A
(Filler Box)
B
(Filler Frame)
3
12 (305)
4
15 (381)
16 (406)
5
18 (465)
19.3 (490)
7
25 (635)
25.9 (658)
NOTE: Alert-2 Sensor Modules are not compatible with the Alert-3 LCD Alarm.
NOTE: No filler frame is required when converting 3 gang alarms.
www.amico.com
3
