Amico Gas Control Panel - Manual (Page 5)

www.amico.com 5
16
Disconnect Here
Adjustable
Mounting Bracket
15
14

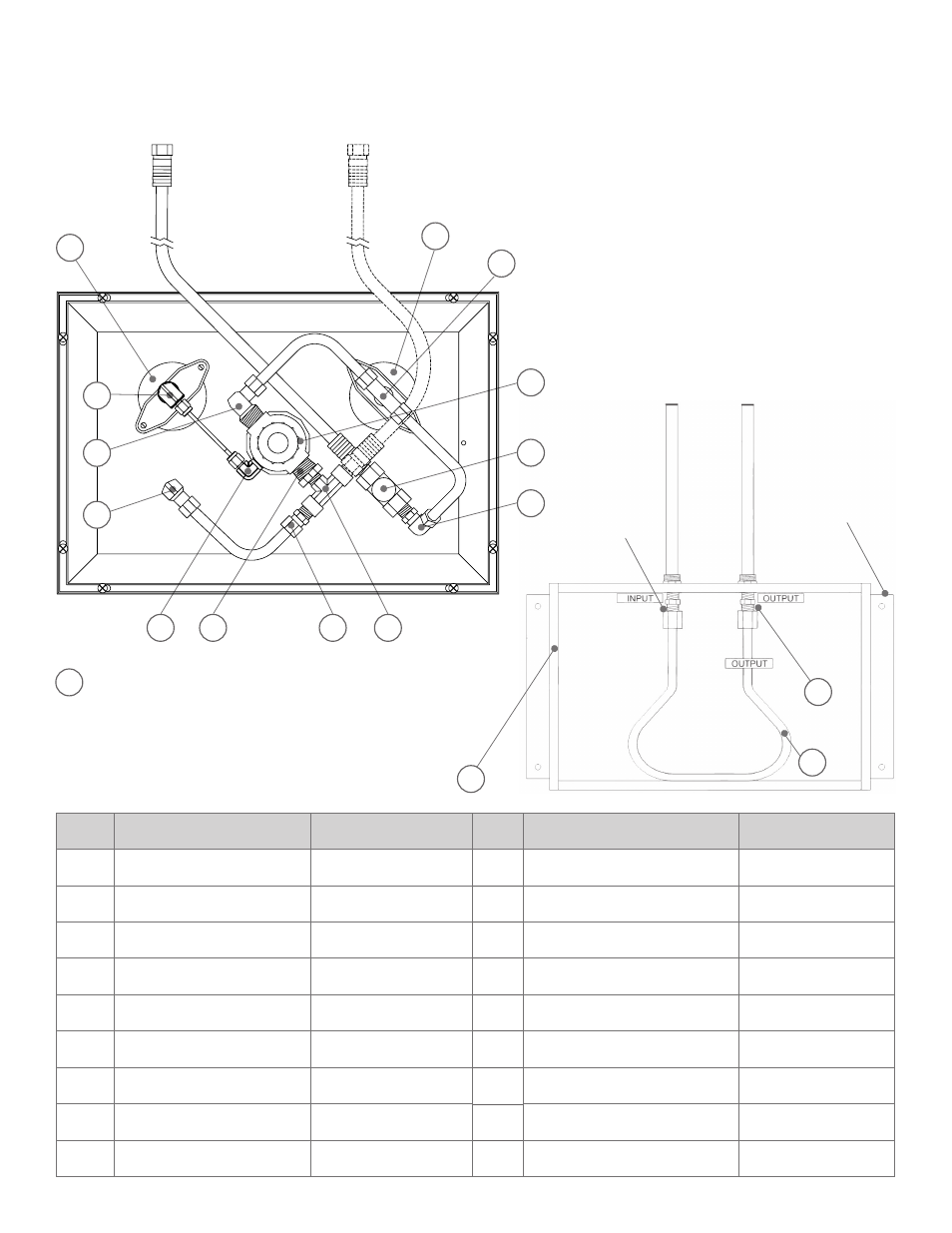

Diagrams
9 8 7 6
5
4
2
1
3
1
10
13
11
12 Not visible
Item Description Part Number Item Description Part Number
1
2 1/2" Gauge, 0-400 psi, 1/4"
Center Back Mount
M-X-MAN-52B 9 Elbow 90° 1/4" MNPT * 1/8" Tube N-X-ELB-ALM2508
2
Brass Tee 1/4" FNPT
* 3/8" Tube
N-X-TEE-AL-F304 10 Elbow 90° 1/4" FNPT * 1/8" Tube N-X-ELB-ALF2508
3a. Regulator Relieving N-X-REG-W-HP-R 11. Elbow 90° 1/4" FNPT * 3/8" Tube N-X-ELBOW-AL
3b. Regulator Non-Relieving N-X-REG-W-HP 12a.
DISS Demand Check Valve
1/4" MNPT - Nitrogen
S-DIS-DEMC-NIT
4 Shut-off Valve (Brass) N-X-VALVE 12b.
DISS Demand Check Valve
1/4" MNPT - Instrument Air
S-DIS-DEMC-IAIR
5
Elbow 90° 3/8" MNPT
* 3/8" Tube
N-X-ELBW-AL-M37 13 Elbow 90° 1/2" MNPT * 3/8" Tube N-X-ELBW-AL-305
6
Brass Tee 1/4" FNPT
* 3/8" Tube
N-X-TEE-AL-F304 14
18" Long Braided Pigtail
(3/8" Inner Diameter)
N-X-PIGTAIL
7
Connector 3/8" MNPT
* 3/8" Tube
N-X-CON-AL-375 15
Pigtail/Pipe Adapter for
Nitrogen Control Panel
N-X-PT-ADAPTER
8 Bushing 1/2" * 3/8" N-X-BUSH 16 Box for Nitrogen Control Panel N-X-BOX
Gas Inlet Gas Outlet
