Page 7

www.amico.com
7
Check
Valve
1”
VV-CHK3-EXT10
Check
Valve
1-1/2”
VV-CHK3-EXT15
Check
Valve
2”
VV-CHK3-EXT20
Relief Valve Pipe Away Adapter ½” NPT (NFPA)
M-X-PIPEAWAY-05
Relief
Valve
(NFPA)
M-X-MAN-72W-075
Relief
Valve
(CSA) M2-X-MAN-73-075
Optional Check and Relief Valves (to be ordered separately):
Model Number: M-FILL-OXY-LP2S
Model numbers also available:
M-FILL-OXY-LP-S
Emergency low pressure oxygen inlet station 1” surface mounted
M-FILL-OXY-LP
Emergency low pressure oxygen inlet station 1” recessed mounted
M-FILL-OXY-S
Emergency high pressure oxygen inlet station 1” surface mounted
M-FILL-OXY
Emergency high pressure oxygen inlet station 1” recessed mounted

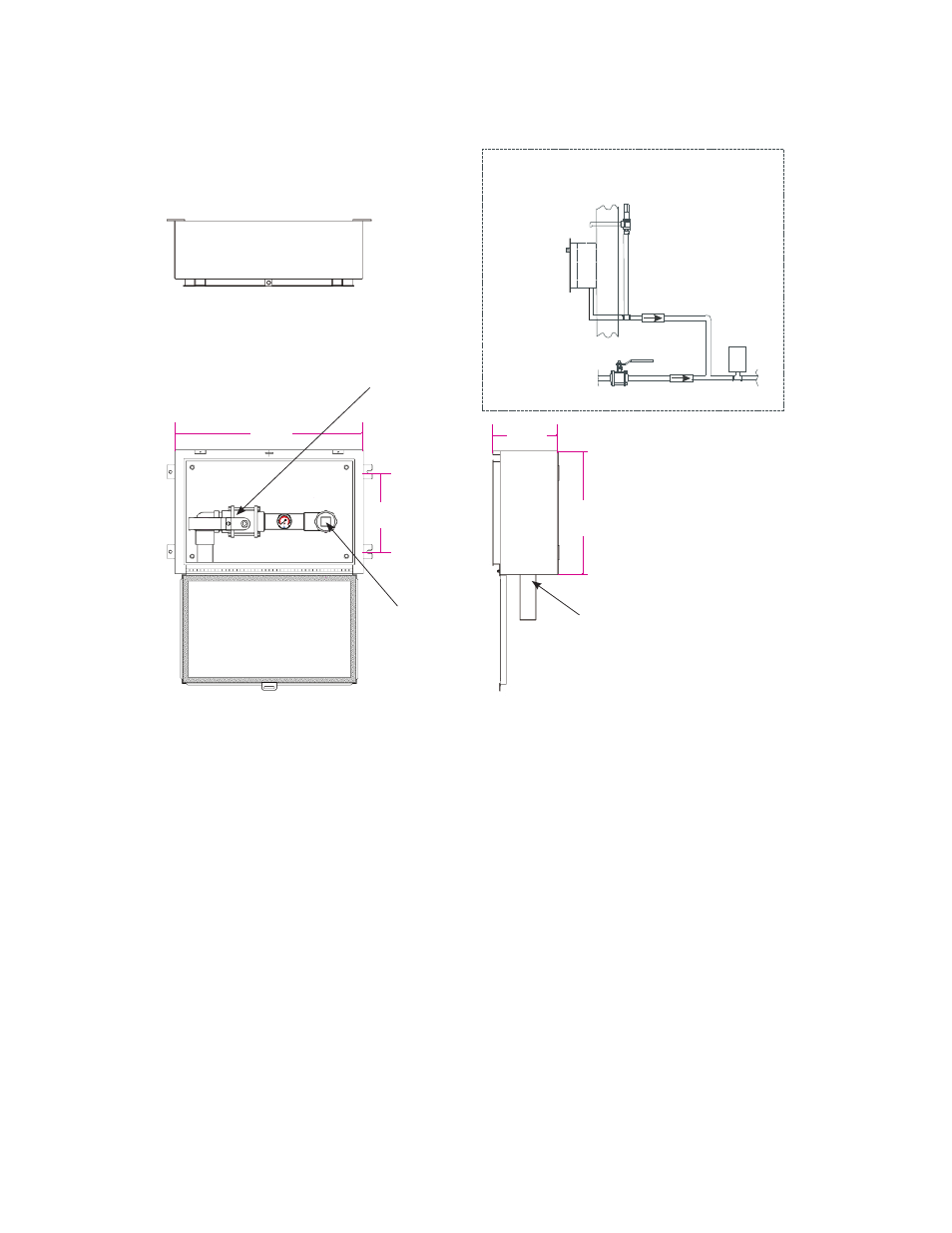

Schematic Drawing - Surface Mount
26"
[660]
2" Type "K"
Copper outlet pipes
Inlet Oxygen
connection
2" NPT
Shutoff
Valve
8"
[203]
17"
[431]
18"
[457]
Typical Piping
Turn Down
and Screen
Emergency Low
Pressure Oxygen
Inlet Box
Main Oxygen
Supply
Main Line
Shutoff Valve
Check Valve
Pressure
Switch
Relief Valve
75 PSIG
Shutoff
Valve
Inlet
Oxygen
connection
2” NPT
11
[279.4]
8
[203]
17
[431]
26
[660]
2” Type “K”
Copper Outlet Pipes
