OPERATING ALARM SYSTEMS
The manifold control cabinet contains the required circuitry to send a dry contact signal to the alarm unit when a
bank is empty and change-over occurs. The normally closed internal circuitry is designed to alarm when there is an
open circuit. The depletion of a bank triggers a relay, which renders the alarm circuit open and initiates the alarm
signal.
GAS SERVICE IDENTIFICATION
Amico manifolds are clearly labeled for the intended gas use, indicating the appropriate gas that is attached on the cabi-
net door. There two pipes extending from the top of the cabinet, one is for the main line pressure and the other is the
vent for the pressure relief valves, which is also labeled accordingly.
HEADER BAR CONNECTIONS
The gas specifi c header bar should be attached to the In-let block on either side of the manifold. The In-let block is pro-
vided with a sintered bronze fi lter and a “C” clip to secure it. The header should contain the proper gas connections and
all cylinder bar connections, as well as the pigtail (hose) assemblies should comply with CGA standard B96, “Com-
10 Amico Pipeline

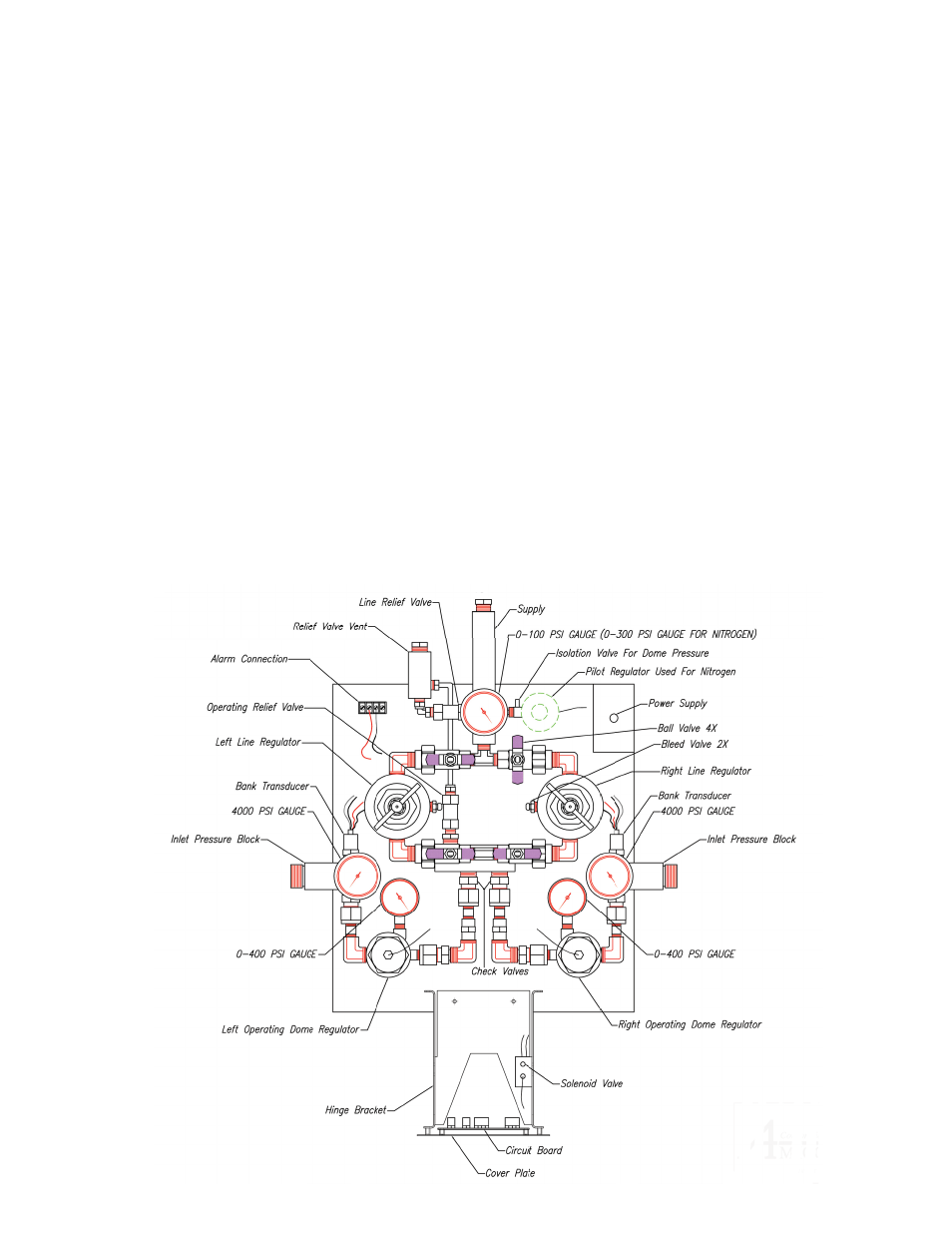

Description of Parts
