IF YOU BELIEVE THE BATTERY HAS BECOME DAMAGED OR IS NO LONGER CHARGEABLE, YOU CAN SEND
YOUR UNIT BACK TO AEO FOR BATTERY REPLACEMENT, OR YOU CAN ATTEMPT TO CHANGE THE
BATTERY YOURSELF, BY FOLLOWING THE INSTRUCTIONS BELOW, MAKING SURE THAT THE POLARITY IS
CORRECT BEFORE PLUGGING IN A USB POWER SOURCE.

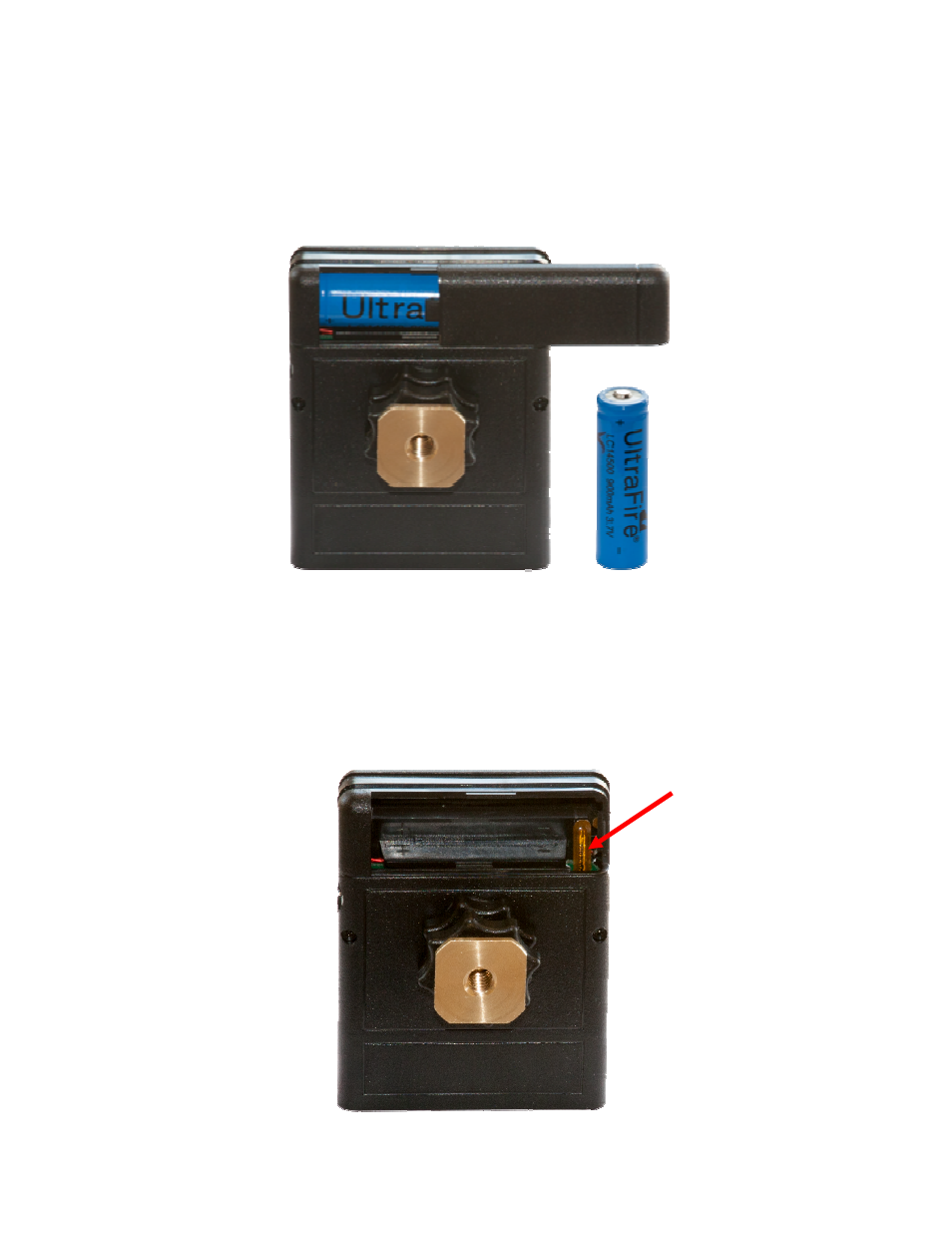

The Li-Ion 14500 battery is accessible via a slide out battery compartment cover on the bottom of the
device as shown below:
Take note of the polarity of the battery, and ensure that the replacement battery is inserted correctly.
IF the battery is inserted incorrectly, AND the USB Charger is plugged in, THE DEVICE WILL BE
DAMAGED.
Pro-Models include a built-in recharge system. An integral part of that system is a temperature monitor
that ensures the battery does not overheat and become damaged. A yellow thermistor probe can be
seen in the battery compartment when the battery is removed.
DO NOT handle the probe. Insert a new battery into the compartment on top of this probe so that the
probe remains under the battery and NOT VISIBLE after the battery is installed.
Battery Temperature Sensor
POSITIVE POLARITY SIDE
NEGATIVE POLARITY SIDE
