Placing the unit in an equipment rack, Figure 8.1. placing the unit in a telco rack – Compatible Systems IntraPort A00-1869 User Manual
Page 19

Chapter 2 - Mounting Instructions
13
Placing the Unit in an Equipment Rack

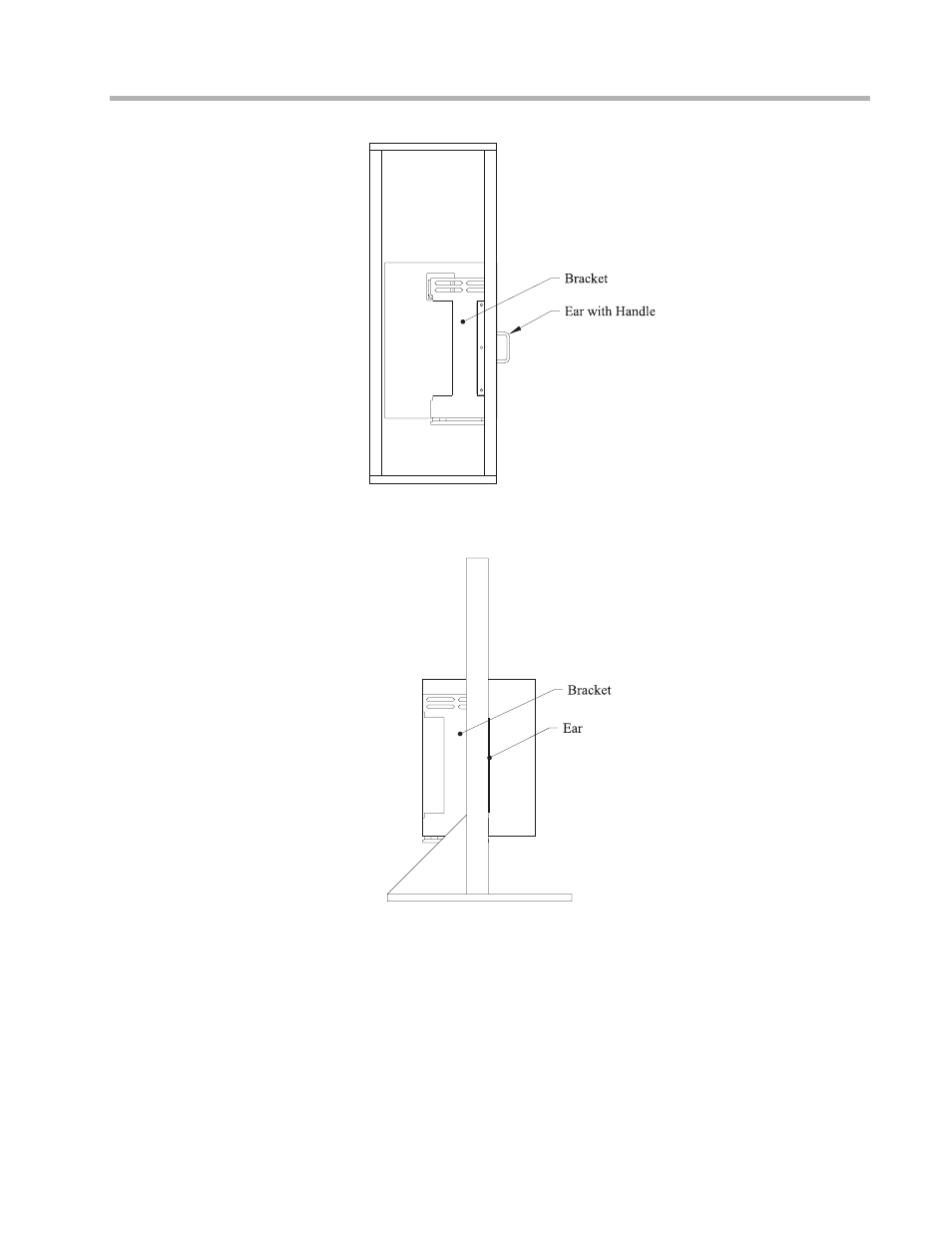

Figure 8. Placing the Unit in a Standard Equipment Rack
Figure 8.1. Placing the Unit in a Telco Rack
1. Slide the unit back into the rack until the mounting ears are flush with the sides of the
rack.
Proper placement in a standard equipment rack should look like Figure 8.
Proper placement in a Telco rack should look like Figure 8.1.
