Section 2: Assembly & Set-Up Great Plains Mfg., Inc.
SeriesII 1200TT-4000TT Turbo-Till Attachments 586-216M 10/25/2007
6
Rear Stand Assembly
Mount the rear stand bracket (1)
Figure 3, if applicable, to the drag frame
using 5/8 x 3 x 4 1/2 u-bolts, lock washer and
hex nut. The rear stand leg (3) should be
pinned in the rear stand bracket (1) using a
3/4 x 4 1/2 pin (4) and retainer.

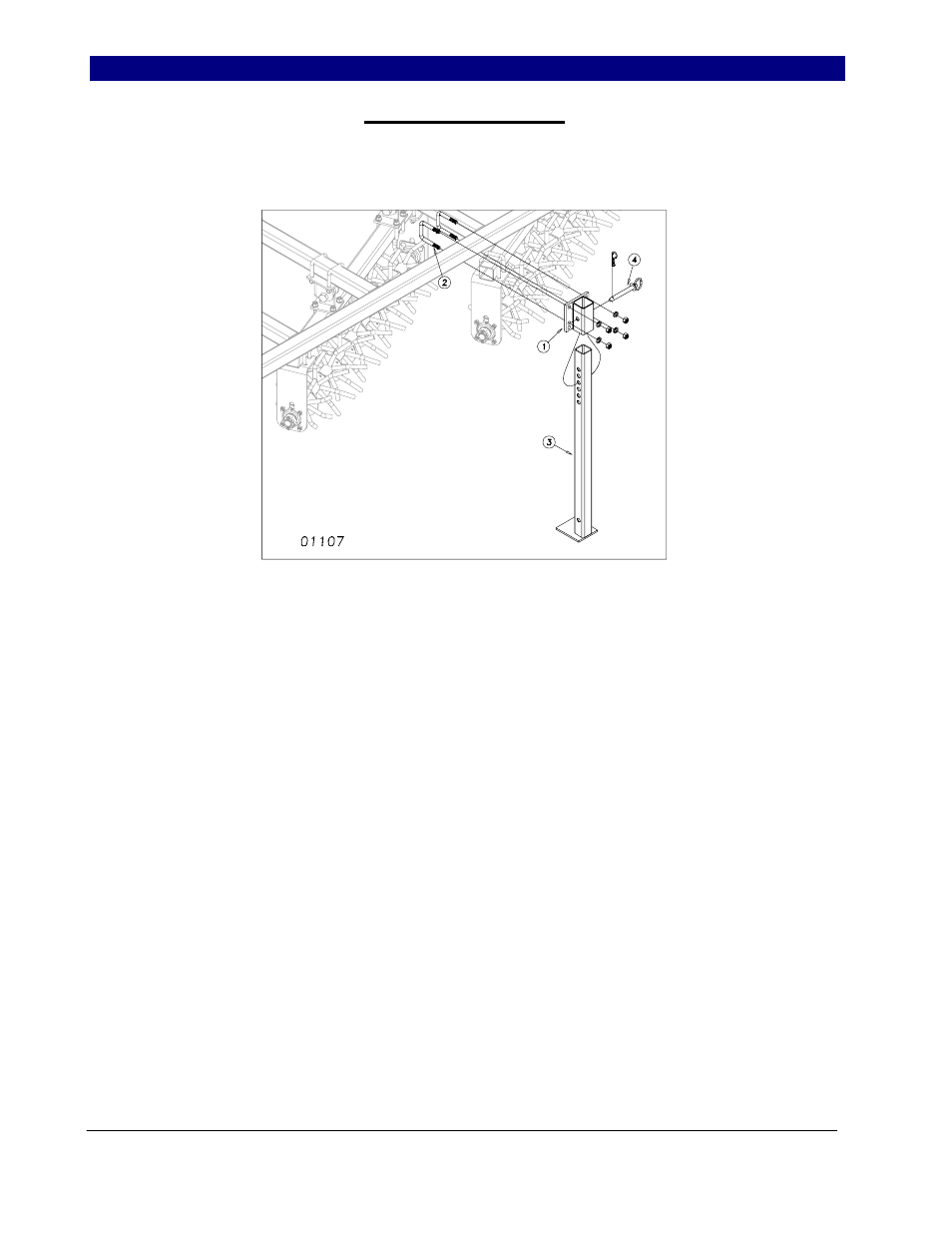

Figure 3
