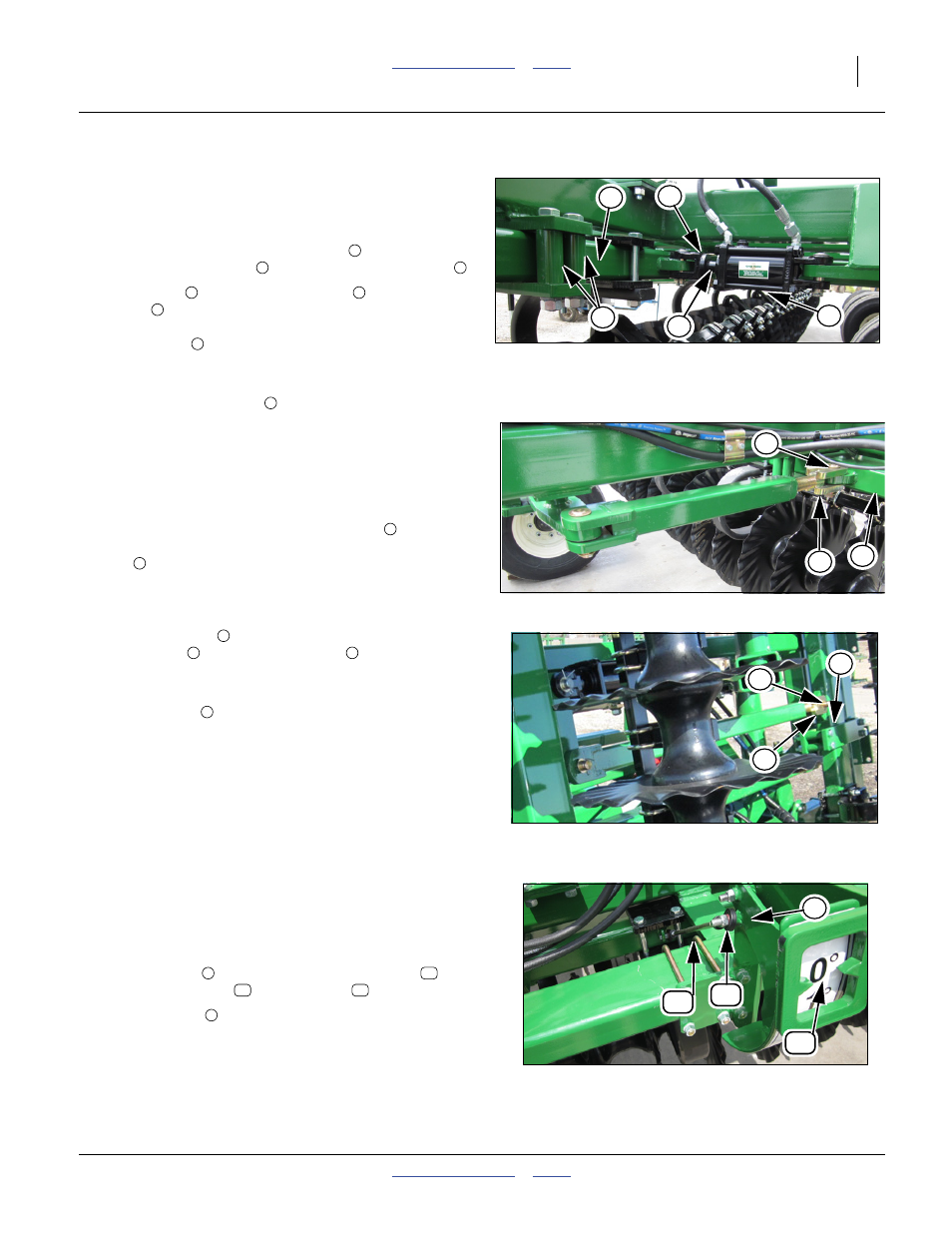

Gang Angle Adjustment
Refer to Figure 15
Note: Check gang angle adjustment when machine is new
and annually after, as wear may occur.
20. With front gang adjusting cylinders in the full retract
position the gang bar should be 1/8” from tubes .
21. If gang bar is not 1/8” from tubes loosen allen
screw on clevis on rod end of cylinder (there are two
flat spots on rod to get wrench on to adjust) and shorten
cylinder rod
by turning cylinder rod to bring gang bar
closer and lengthen clevis to get cylinder to retract all
the way.
22. Re-tighten allen screw when adjustment is made.
Refer to Figure 16 and Refer to Figure 17
Note: Note the two different turnbuckles used. One has a
rocker between two turnbuckles and the other has just
one turnbuckle between the front and rear gang bars.
They both adjust the same way.
23. When the front gang adjusting cylinders , have been
adjusted and are in the full retract position the rear gang
bar
should be parallel to back frame tube.
24. If rear gang bar is not parallel to back frame tube,
remove pin from turnbuckle end and shorten turn-
buckle end by turning clevis to bring gang bar closer and
lengthen clevis to get gang bar to retract all the way.
25. Re-install pin when adjustment is made.
Refer to Figure 18
26. When the front and rear gangs are adjusted and gang
angle cylinders are fully retracted then the gang angle
indicator will need adjusted.
27. Remove bolt from either end of gauge link and
turn threaded end until indicator reads 0 degrees.
28. Re-install bolt to secure gauge link.
