3 5/5/06 3N-3010P, No-Till Flat Fold Marker Option 113-739M
Great Plains Mfg., Inc.
Assembly Instructions
■

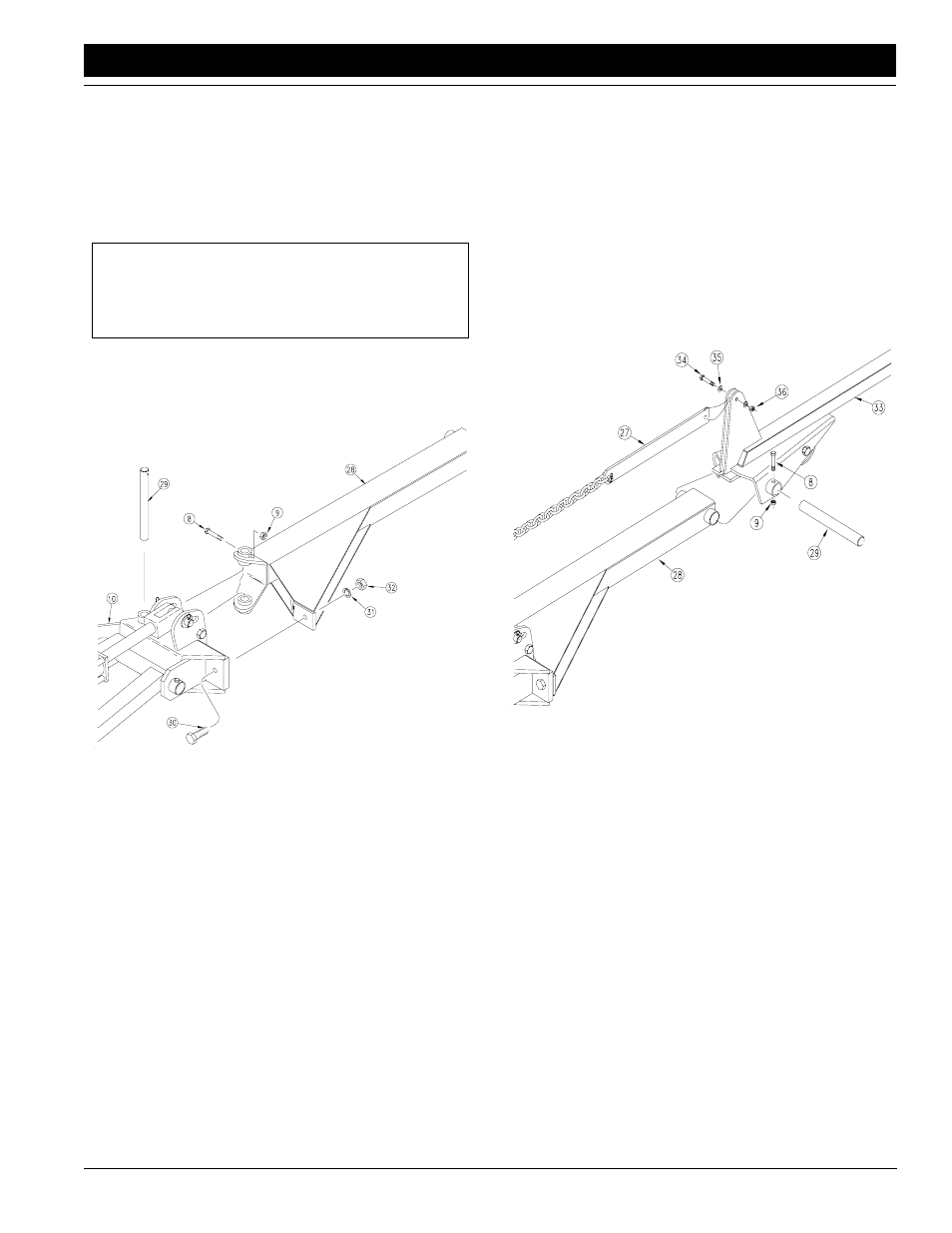

Refer to Figure 3.
9. Attach the second section (28) to the breakaway hinge (10)
with the pivot pin (29). Secure the pivot pin (29) with the bolt
and lock nut (8 and 9). Complete this joint by passing the
grade 5 breakaway bolt (30) through the holes in the hinge
and second section. Install the lock washer (31) and nut (32)
on the breakaway bolt.
IMPORTANT: The breakaway bolt (30) is a 7/16 x
2 1/4-inch, grade 5 (G.P. # 802-234C). It is identified as a
grade 5 by having three marks on the head. If it breaks, re-
place it with an equivalent grade 5 bolt to prevent marker
damage.
Figure 3
Attaching Second Section
11101
Refer to Figure 4.
10. Attach the third section (33) to the second section (28) by us-
ing the pivot pin (29). Secure the pivot pin with the bolt (8) and
lock nut (9).
Fasten the loose end of chain bar (27) to the ears on the
third section (33) by using the bolt (34) flat washers (35) and
lock nut (36). Do not over tighten this pivot, which would
cause the ears to bend in. The chain bar must pivot freely
around the bolt.
Figure 4
Attaching Third Section
11102
