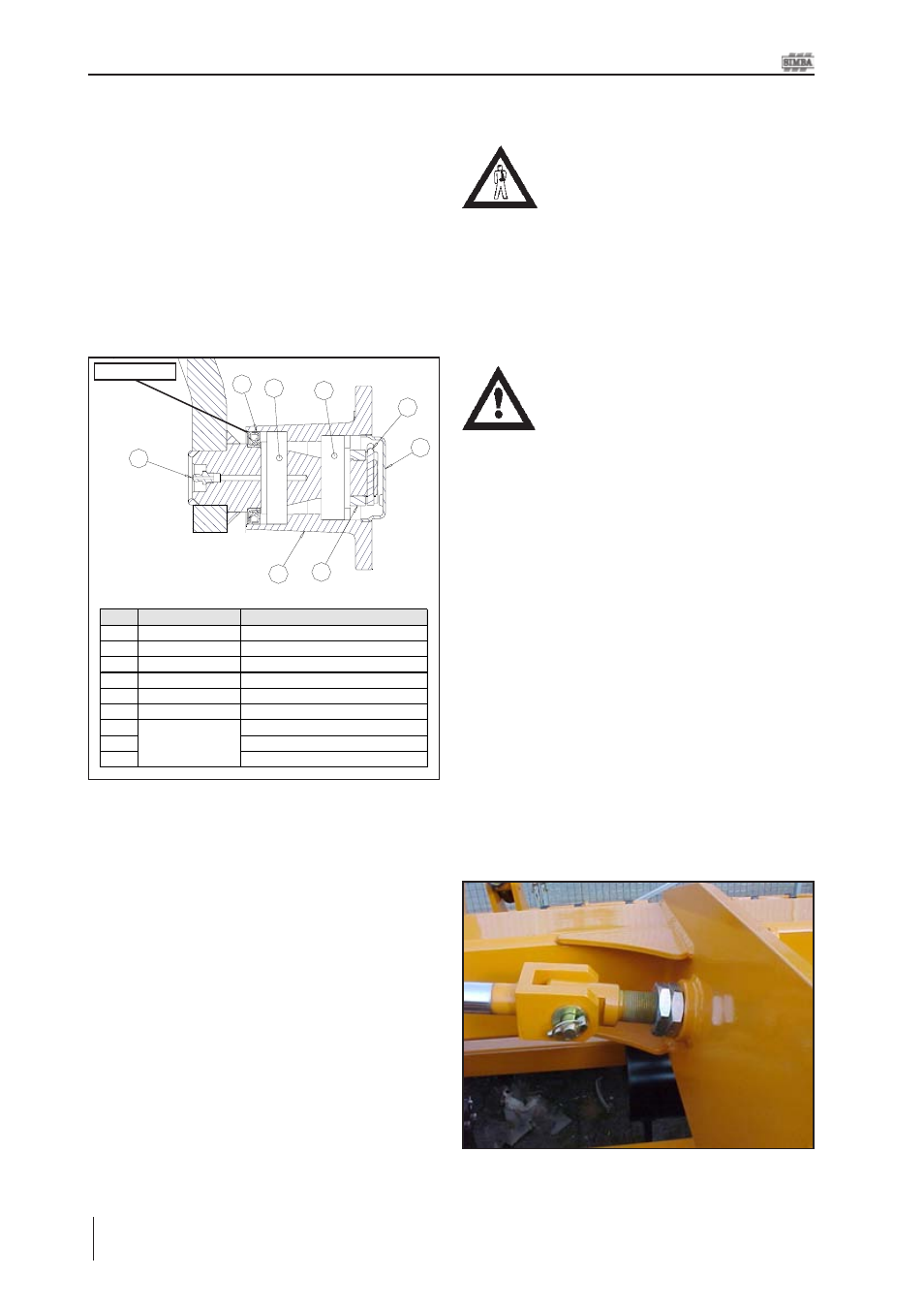

8-10m Press Range

Operating Instructions

36

5. Servicing and Maintenance

5.5 Double Disc Axles

The axles on this roller are tensioned by the
main axle through the centre of the rings and
bearings.

Specialist equipment is required
for the disassembly of Double Disc
axles. Please consult your dealer

under any circumstances that
require disassembly of these
axles.

Maintenance of these rollers is limited to daily
greasing of the bearings to flush out dirt, and
regular inspection to ensure the assemblies
are tight, and scrapers are correctly set. The
axles can be tightened provided the bearing
pillar ‘U’ bolts are loosened to avoid
preloading the bearings as they move
sideways to each other. Ensure the bearing
pillars are re- tightened to the mainframe after
this.

5.4 Pro-Active Tine Points

When changing points on Pro-
Active tines extreme care should
be taken. Wear goggles at all

times when changing tine points.

5.6 Wing Pitch

The pitch of the wings can be altered by using
the threaded ends of the wing cylinders.
Tightening will raise the outer tips of the wings
and loosening will lower the tips of the wings.

Fig. 5.04: Wing Pitch Adjustment

5.3.1 Bearing Seals

It is important when replacing the labyrinth
type bearing seals in disc hubs that the seal
is fitted the right way round. The chamfered
lip side should be at the outside of the bearing
housing, nearest the disc arm (see Fig. 5.02).
This chamfered lip prevents dirt ingress into
the housing and also allows grease to be
flushed though when greasing.

Chamfered Seal

Fig. 5.02: Correct Seal Orientation

3

6

4

5

9

8

7

2

14.00

IT EM

PAR T N O

D ESCR IPT ION

1

---

DISC ARM

2

P12900

NIPPLE - GREASE M8

3

P14593

HUB CASTING

4

P14594

HUB CAP

5

P12908

SPRING PIN

6

P12907

NUT CASTLE M27x1.5

7

SEAL 64x45x9.5

8

BEARING 32008 40x68x19

9

BEARING 32206 30x62x21

P12415
