Great Plains 3P600 Assembly Instructions User Manual
Page 6

151-071M
3/31/2004
Great Plains Mfg., Inc.
Seed Box Agitator Option
6

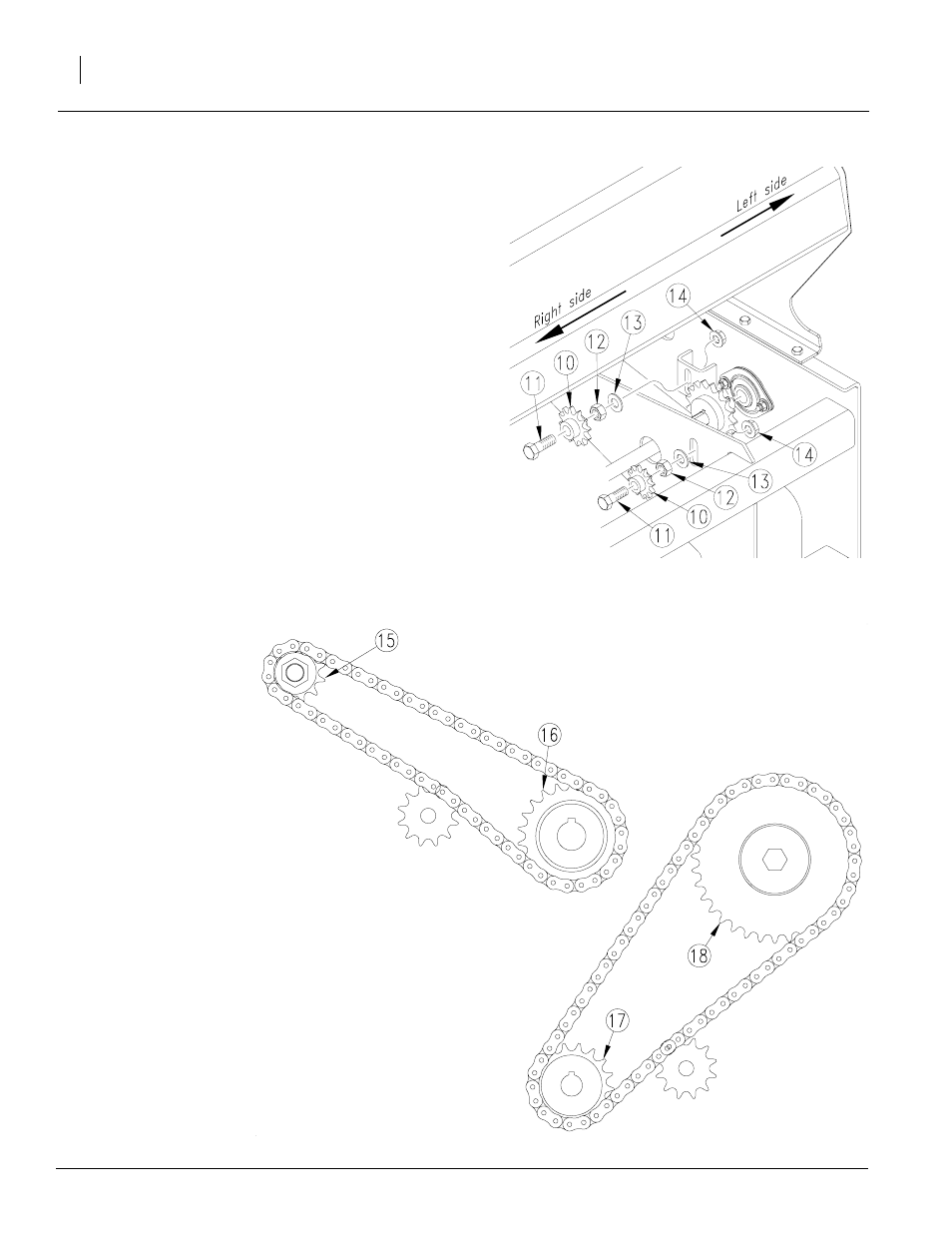

Figure 7
Idler Installation
18731
6.
Install two 12 tooth idler sprockets (10) in lo-
cations shown, using 1/2 x 3 1/2 inch bolts
(11), hex jam nuts (12), USS flat washers (13)
and hex flange nuts (14).
Figure 8
3P600 Chain Routing
18732
7.
Route chains as follows:
a.
The 63 pitch chain around new 12 tooth
sprocket (15) on gearbox to 22 tooth
sprocket (16).
b.
The 68 pitch chain around 17 tooth
sprocket (17) near left side of frame to 35
tooth sprocket (18) on agitator shaft.
8.
Adjust idlers to remove chain slack.
