4
Section 1 Assembly
1300 13-Foot, End-Wheel Drill 175-179M 1/4/06
Great Plains Mfg., Inc.
Refer to Figure 1-2.
5. Install the left-hand pull bar (1). Slide the pull bar into
the brace (2) on the frame. Install but do not tighten
the 1/2-by-5-inch bolt, lock washer and nut (3). Install
but do not tighten the 1/2-by-3-inch bolt, lock washer
and nut (4). Repeat for right-hand pull bar.
6. Clamp pull bars around tongue by installing the 1/2-by
1 3/4-inch bolts, flat washers, lock washers, and nuts
(5). Do not tighten bolts.
7. When both pull bars are installed and clamped around
the tongue, tighten all pull-bar bolts.
8. Install hydraulic-hose holder (6) with 3/8-by-3/4-inch
bolt, lock washer and flat washer (7).
9. Plug the tongue portion of light harness (8) into the
connector on the drill frame. Route the light harness
over tongue. Secure harness to avoid damage.
10. Tighten all bolts as specified on Torque Valves Chart,
page 5.

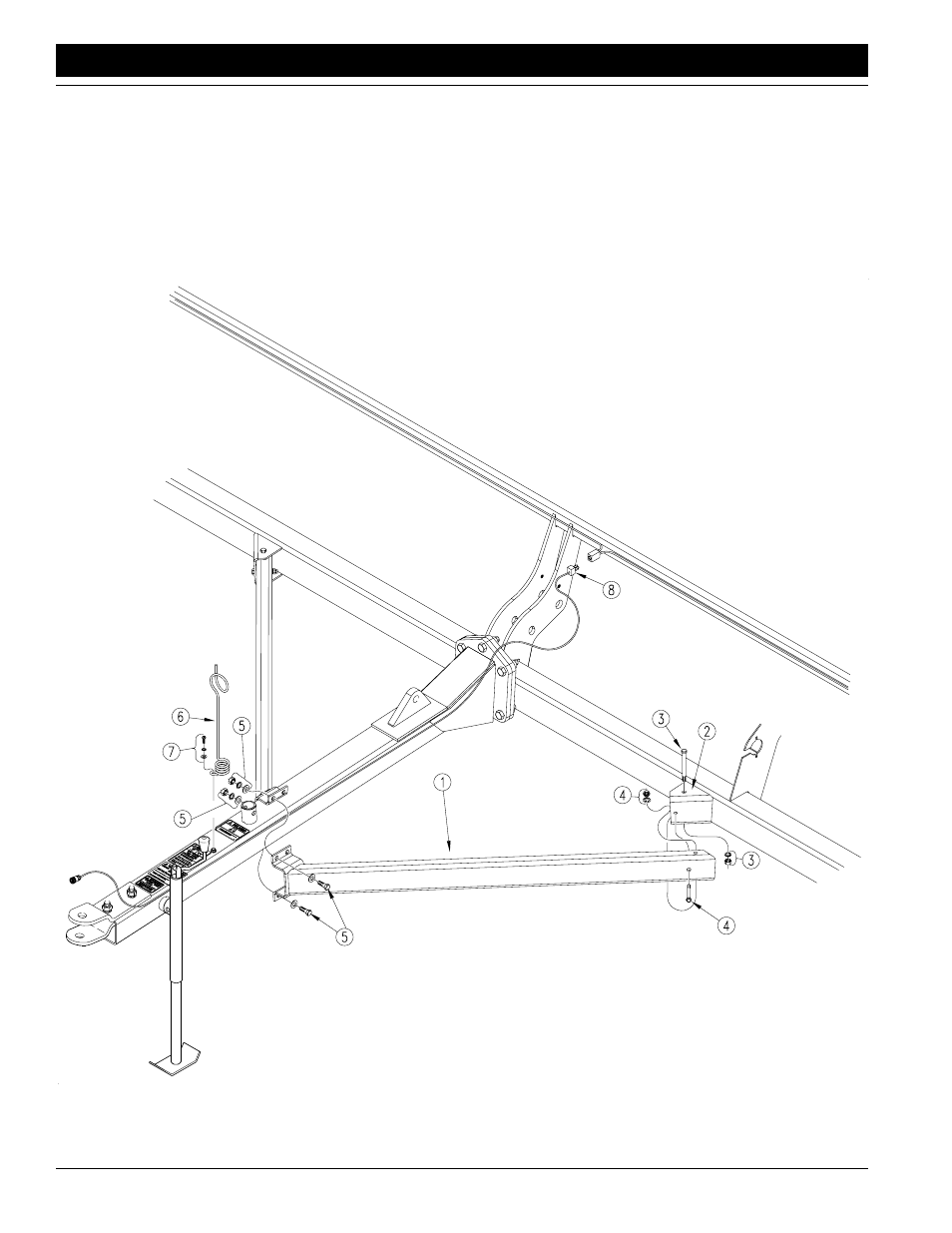

Figure 1-2
Pull Bar Assembly
16692
