Section 3 Hydraulics
2SBD30 30-Foot, Folding, Soybean Machine 173-086M
3. Apply hydraulic pressure to the raising and lowering
system. Raising the machine may be required to
free up the transport lock pins in the vertical tubes
For removal, Figure 3-3.
4. Place pins into storage position, Figure 3-4
10739

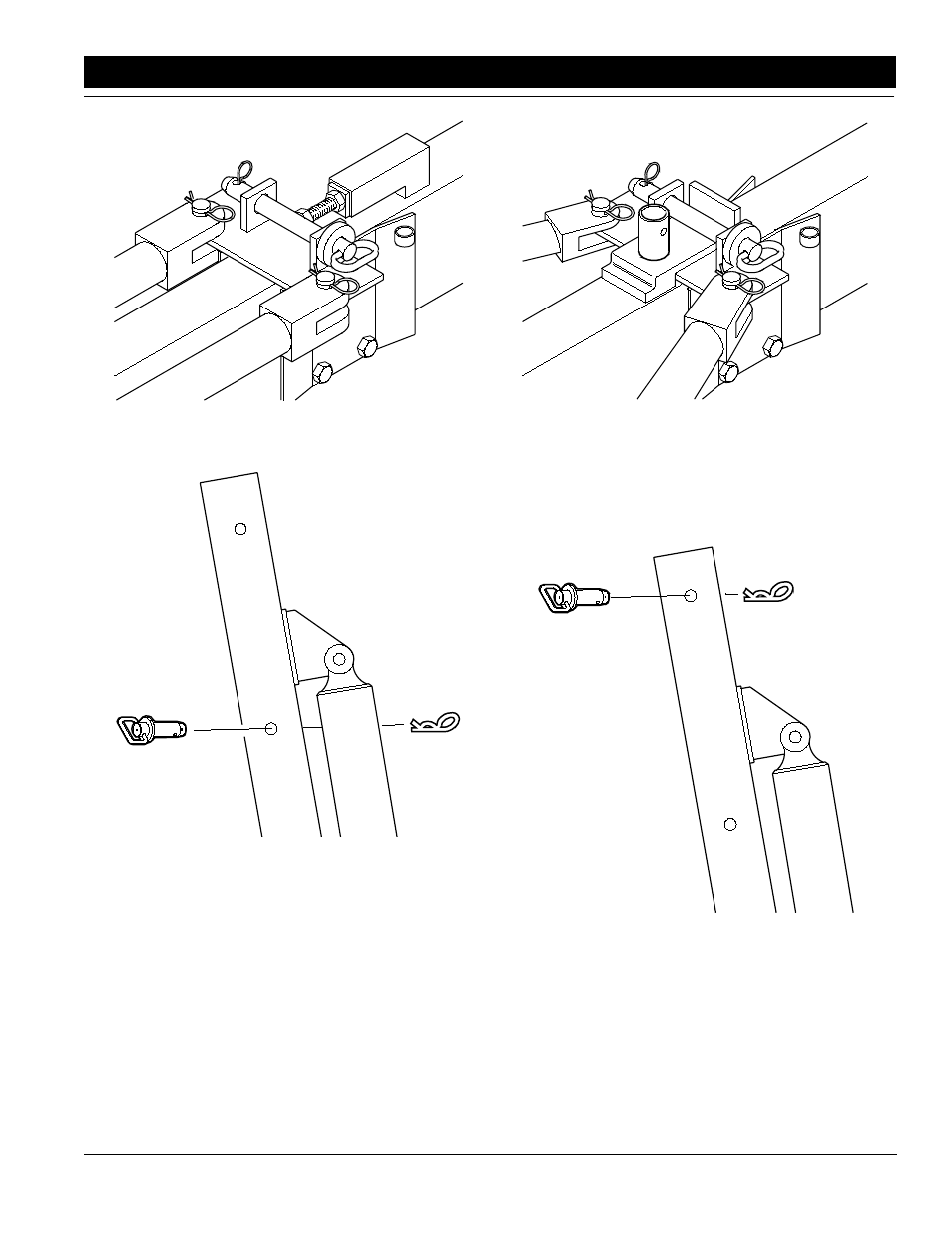

Pull Bar Pin Transport Lock Location
Figure 3-2
12608
Transport Lock Pin Location
Figure 3-3
Folding
1.
To fold the machine, reverse the order of the unfold-
ing instructions. Be sure all transport devices are in
place before transporting, Figure 3-2 & Figure 3-3.
10740
Pins in Storage Location
Figure 3-4
10730 Pull Bar Pin In Field Location
Figure 3-5
