5. Servicing and Maintenance
5.9 Overview of Lubricating Points
* See page 32, section 5.12 for details
DD Light Roll Bearings (One pump only!) 200 hours 5.04
DD Light Roll Pivot 50 hours 5.05
Disc Hub Bearings 100 hours. * 5.06
Disc Angle Adjusters 50 hours 5.07
Wing Cylinder Pivots (4m Folding models only) 50 hours 5.08
Wing Hinges (4m Folding models only) 50 hours 5.09
X-Press lubrication points Interval Diag. No.

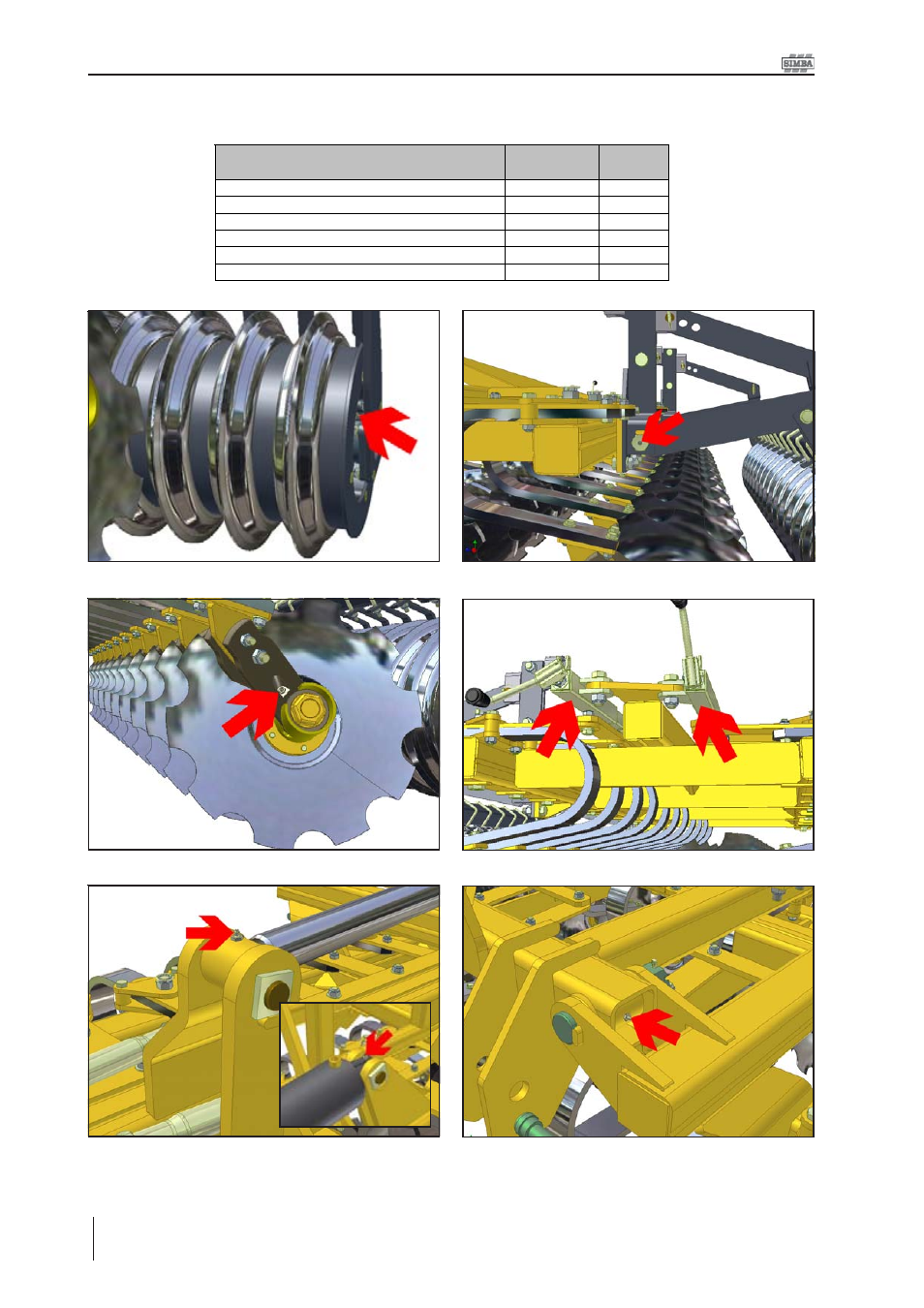

Fig. 5.04: DD Light Grease Points Fig. 5.05: Roll Pivot Grease Points
Fig. 5.06: Disc Hub Grease Points Fig. 5.07: Disc Angle Adj. Jacks Grease Points
Fig. 5.08: Wing Cylinder Pivots Fig. 5.09: Wing Hinges
