35 X-Press
Operating Instructions

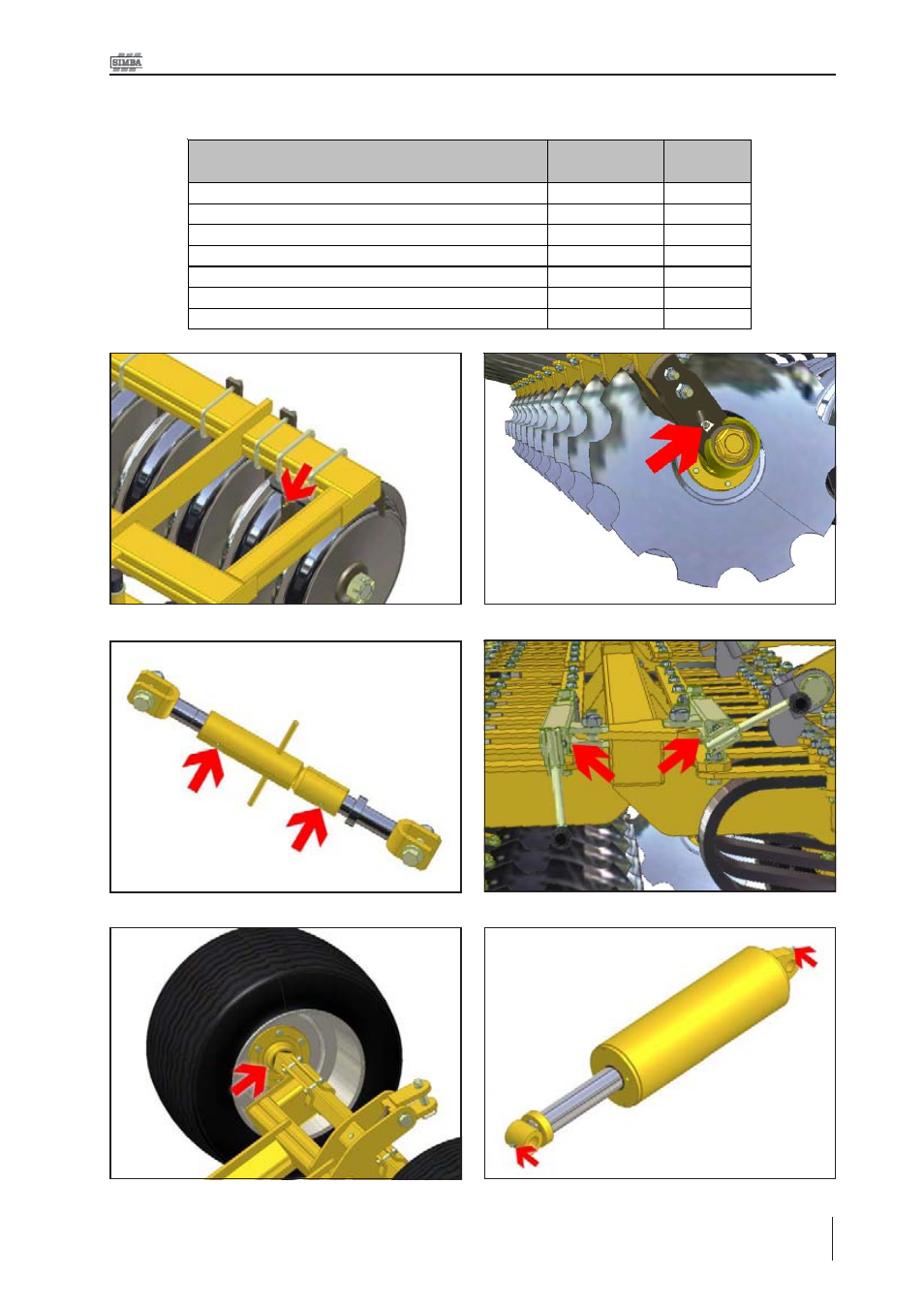

5.10 Overview of Lubricating Points
Fig. 5.06: DD Roll Grease Points Fig. 5.07: Disc Hub Grease Points
Fig. 5.08: Disc Frame Pitch Adj. Grease Points
Fig. 5.09: Gang Angling Jack Grease Points
Fig. 5.10: Wheel Bearing Grease Points Fig. 5.11: Drawbar / Axle Cylinder Grease Points
* See page 37, section 5.13 for details
DD Roll Bearings 10 hours 5.06
Disc Hub Bearings 100 hours* 5.07
Disc Pitch Adjuster 50 hours 5.08
Disc Angle Adjustment Jacks 200 hours 5.09
Wheel Bearings 50 hours 5.10
Drawbar & Transport Axle Cylinders 50 hours 5.11
Pivot Points on Wings / Drawbar 50 hours -
X-Press lubrication points Interval Diag. No.
5. Servicing and Maintenance
