5
Section 1 Assembly
2S-2600 and 2S-2600F Two-Section Folding Drill 195-201Q 2012-04-04
Great Plains Mfg., Inc.

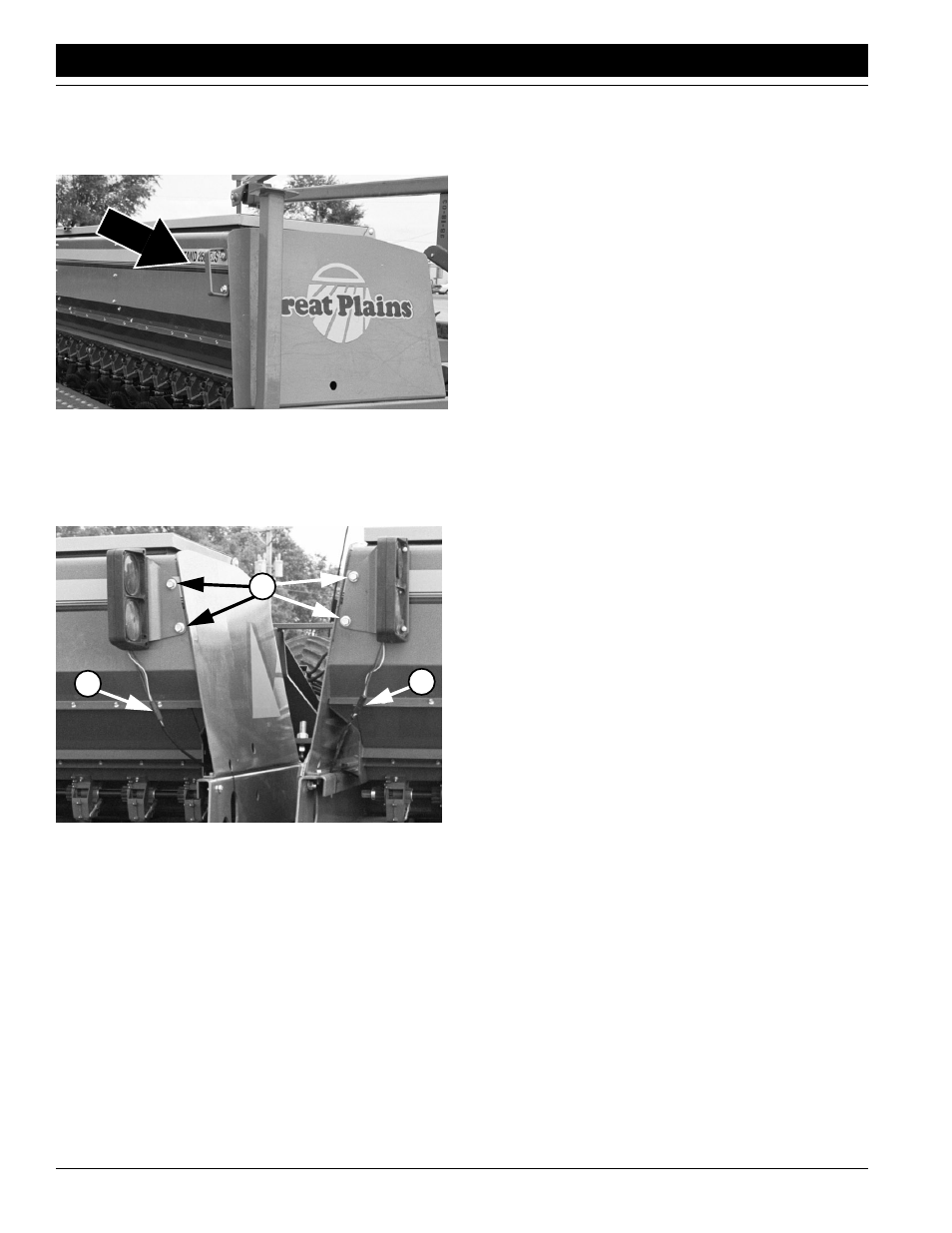

Installing Handles and Lights
1. On outside ends of drill boxes, bolt handles to boxes
as shown in Figure 1-5. Use 1/2-inch, hex-flange
screws and lock nuts.
Figure 1-5
Install Box Handles
2. On inside ends of drill boxes, bolt warning lights to
boxes as shown in Figure 1-6. Use 1/2-inch, hex-
flange screws (1) and lock nuts.
3. Plug warning-light leads into drill harness (2).
Figure 1-6
Install Warning Lights
4. Check lights for correct installation. Fold drill, then
check that both lights have an amber and a red lens
facing toward rear of drill. If necessary, re-install lights
properly.
17347
17346
1
2 2
