4
Section 1 Assembly
Models 2410, 3010, 2420 and 3020 Folding No-Till Drill 196-202M 1/3/06
Great Plains Mfg., Inc.
Assemble Drill Frame and Boxes
Refer to Figure 1-1.
1. Position the main frame (1) in a clear, level area. With
the transport cylinders (2) collapsed allow the frame to
rest on the dual transport wheels. Block the frame in a
safe, level position.
2. Remove the jack from the storage stob on top of the
tongue. Attach jack (3) to stob on left side of tongue as
shown in Figure 1-1. Raise tongue with forklift, then
crank jack until it is supporting tongue high enough for
tractor hook-up.
3. Position the two drill boxes in line, end to end, with the
gauge wheels on the outside. The boxes should be
spaced 4 in. apart at the lower end panels (4).
!
CAUTION!
This drill has negative tongue weight when unfolded and raised.
Be certain that the drill is hitched securely to your tractor draw-
bar and the hitch safety chain is securely attached to the drill
and tractor before raising or unfolding the drill.
4. Hitch a tractor of suitable size and hydraulic capacity
to the tongue and main frame. Refer to Tools Required
on page 3. Crank the jack until tongue weight is on
tractor drawbar.
5. Plug control console cable to drill harness.
6. Unpin the jack from the hitching stob. Pin jack to stob
on top of the tongue.
!
WARNING!
Escaping fluid under pressure can have sufficient pressure to
penetrate the skin causing serious injury. Avoid the hazard by
relieving pressure before disconnecting hydraulic lines. Use a
piece of paper or cardboard, NOT BODY PARTS, to check for
leaks. Wear protective gloves and safety glasses or goggles
when working with hydraulic systems. If an accident occurs, see
a doctor immediately. Any fluid injected into the skin must be
surgically removed within a few hours or gangrene will result.
7. Connect hoses from electro-hydraulic circuit to tractor
remotes.
8. Bleed the lift-to-fold and fold hydraulics. Follow the
proper bleeding procedures for these systems on
page 7.
9. Select the fold system on the control console. Using
the tractor hydraulics, unfold the tool bars.
10. Select the lift-to-fold system on the control console.
Using the tractor hydraulics, raise the main frame.
11. Chain forklift to one of the drill boxes. Raise, lower or
shift the box to align the box mount (5) with the pivot
hub (6) on the tool bar. Leaving the bolts in place, re-
move the nuts and lock washers from the box mount.

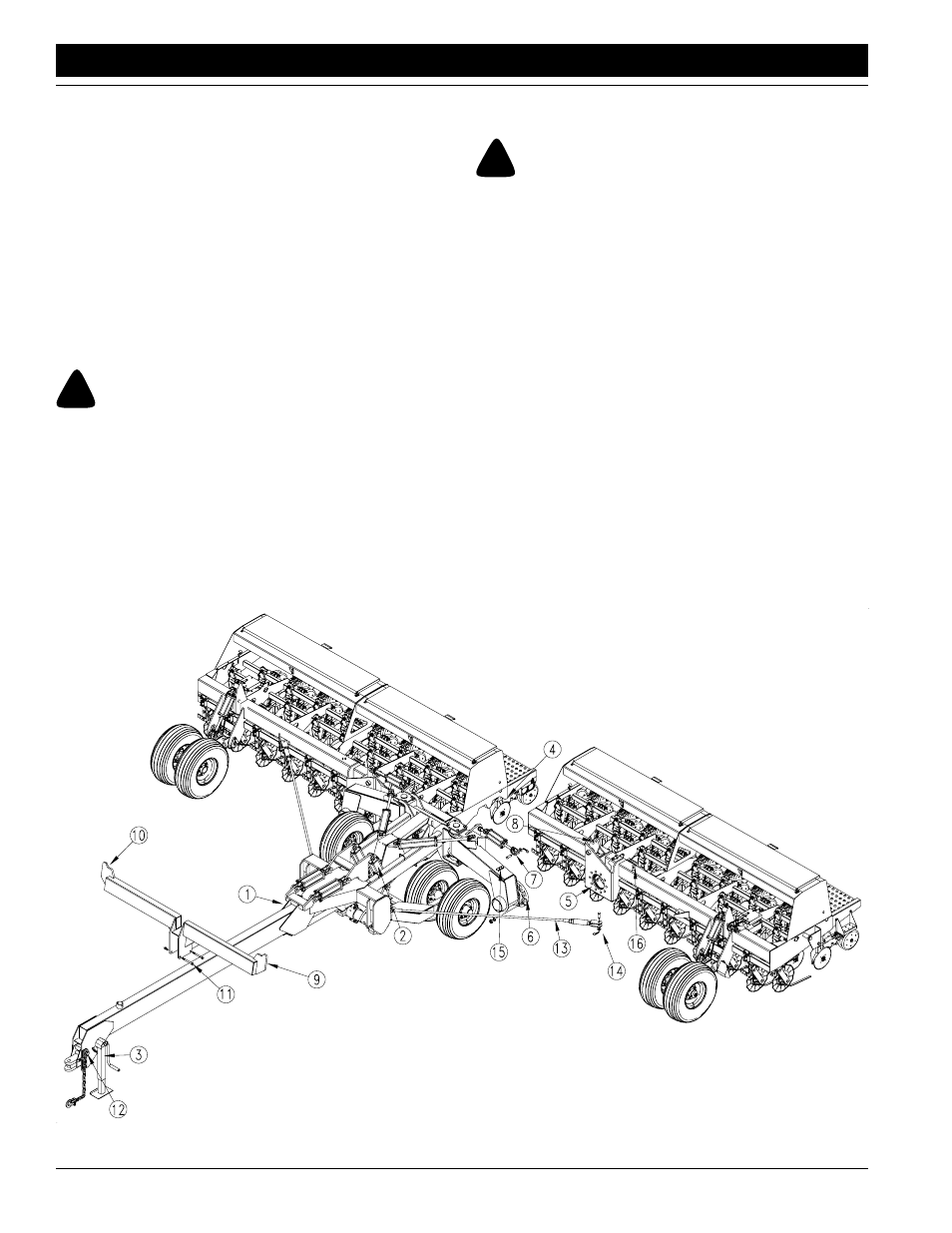

Figure 1-1
Assemble Frame and Boxes
16262
