Clarion AUTOMOTIVE INFRARED WH100 - Manual (Page 2)

Part No. OMWH100
1. GROUND
2. WHITE
3. RED
4. BLACK
5.RED
LEFT CHANNNEL INPUT
(200mv to 500mv MAX.)
RIGHT CHANNNEL INPUT
GROUND
+12V IGNITION

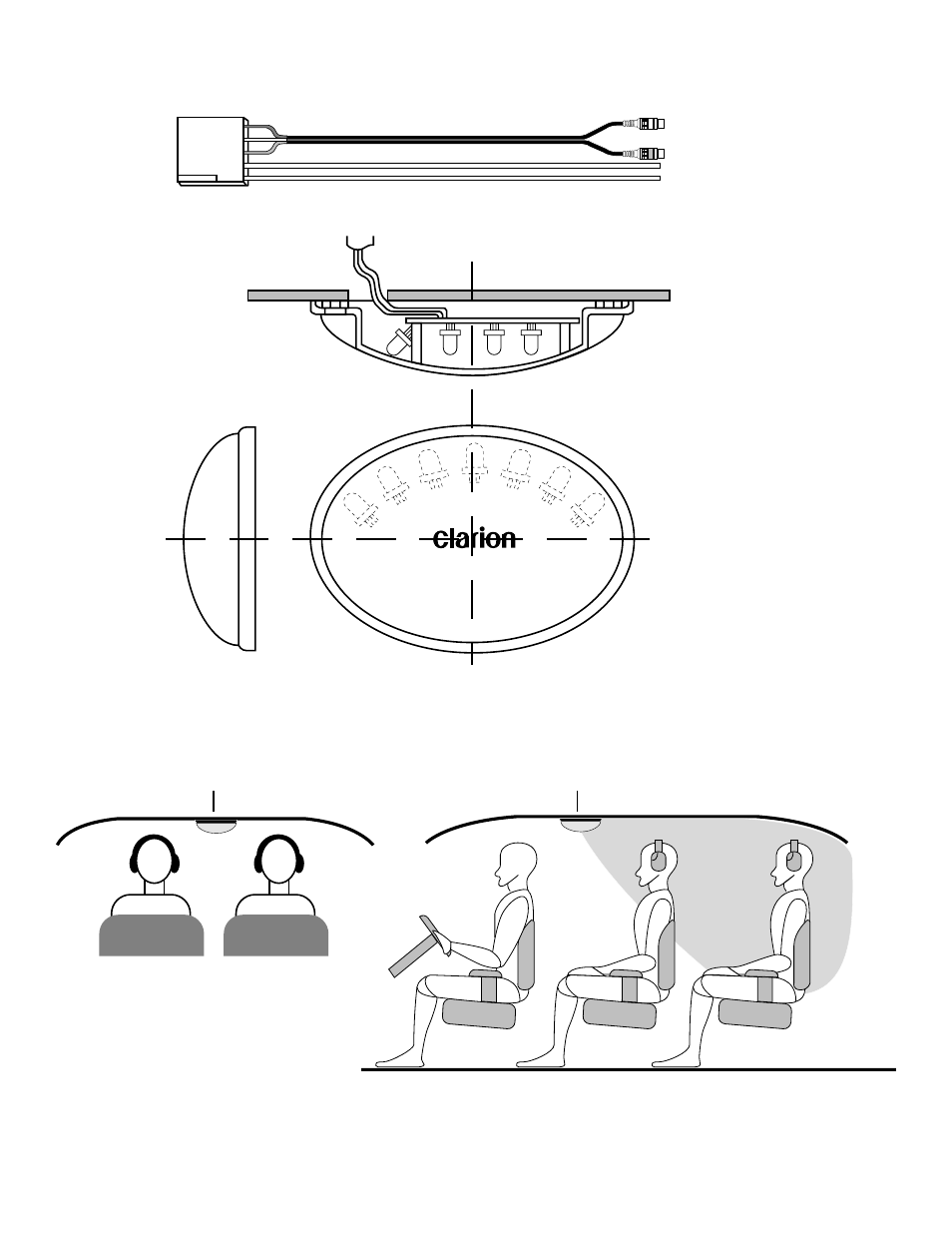

WIRING DIAGRAM
TOP VIEW
TRANSMITTER POSITIONING DIAGRAM
SIDE VIEW
IN-CAR TRANSMITTER
HEADLINER OF CAR
FACE LEDs TOWARD REAR OF VEHICLE
TRANSMITTER
POSITION IN MIDDLE
OF SEATING AREA
TRANSMITTER
POSITION JUST ABOVE THIGH AREA
OF SECOND PASSENGER ROW SEATING
