INTEGRATED POWER MODULE (IPM)
An Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini fuses. A description of
each fuse and component may be stamped on the inside
of the cover.
Cavity Cartridge
Fuse
Mini Fuse Description
1 40 Amp
Green Power Top Feed
2 20 Amp Yellow AWD ECU Feed
3 10 Amp Red CHMSL Brake
Switch Feed
4 10 Amp Red Ignition Switch
Feed
5 20 Amp Yellow Trailer Tow
6 10 Amp Red IOD Sw/Pwr
Mir/Ocm Steer-
ing Cntrl Sdar/
Hfm
7 30 Amp Green IOD Sense1
8 30 Amp Green IOD Sense2
9 40 Amp
Green Power Seats

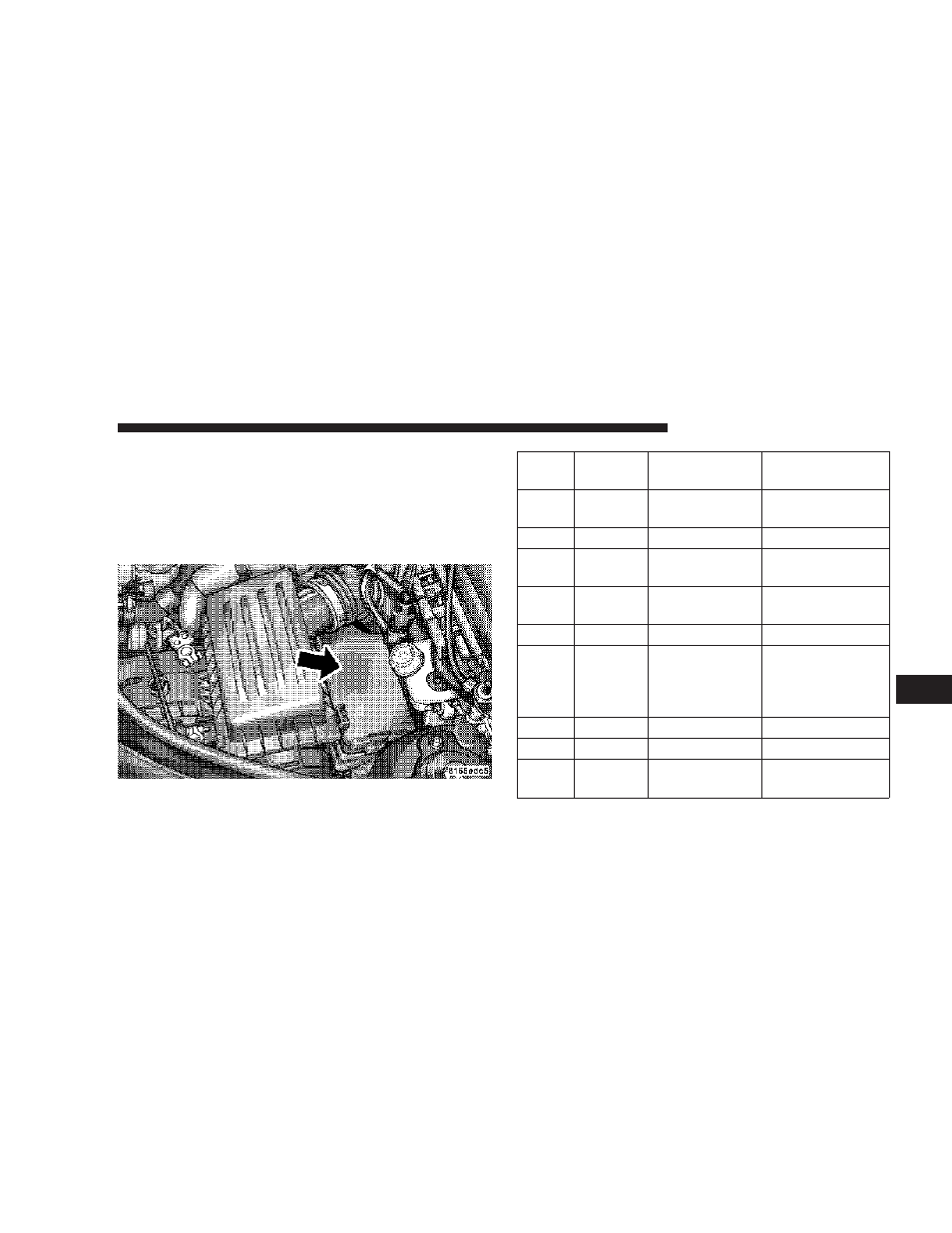

Integrated Power Module Location
MAINTAINING YOUR VEHICLE 403
