The drop measurement of the comb is determined by
measuring the distance between the plane formed by the
top of the rib and the forward most point of the cheek
piece. The drop at heel is determined by measuring the
distance between the plane formed by the top of the rib
and the top end of the buttstock or recoil pad. Spacers
labeled 1, 2, and 3 adjust drop at comb and heel. They do
not give any cast on/off adjustment. The stock remains
straight. These spacers with their respective stamps are
identified here:
1 Raises the comb approximately 1 ⁄
16
", and heel
approximately 1 ⁄
8
".
2 Neutral. This spacer is already installed on your Super
X2 shotgun. It sets drop at comb at 1 1 ⁄
2
", and heel at 2 3 ⁄
8
".
3 Lowers the comb approximately 1 ⁄
16
", and heel
approximately 1 ⁄
8
".
C AST O N AND C AST O FF :
Adjusting cast on and cast off allows you to achieve a
perfect fit from the stock to your face. This is a most
crucial adjustment, as it determines how correctly and
consistently your eye will line up with the sight plane
along the barrel rib. Some right-hand shooters like the
stock to bend away (cast off) from the face, while many
left-handed shooters prefer a bend to the left (cast on).
A shotgun correctly adjusted for cast on and cast off will
3

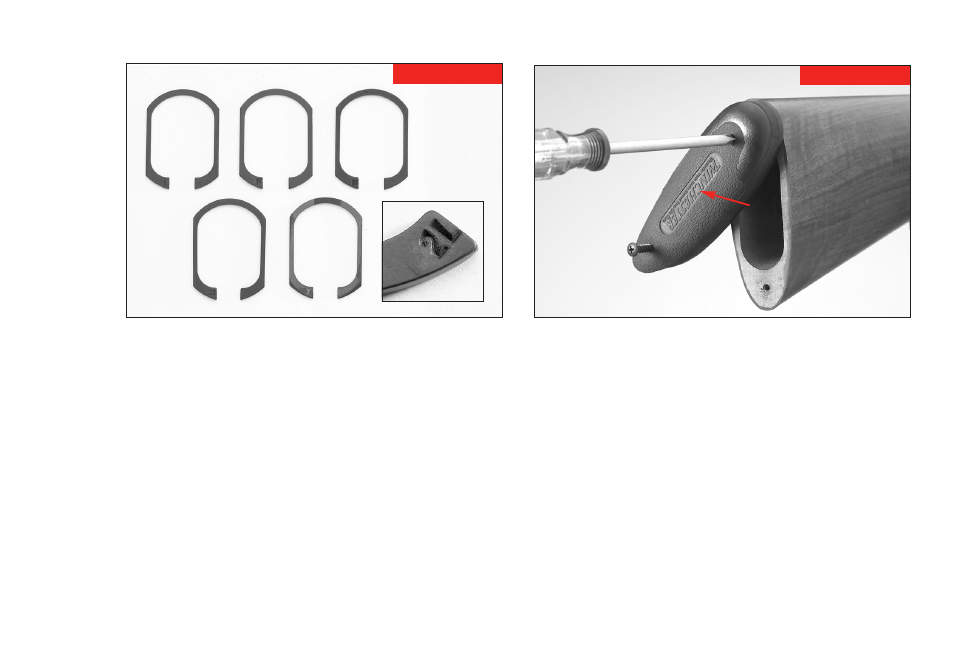

Remove both screws from the buttstock.
FIGURE 3 FIGURE 2
One spacer comes already installed on the gun. Five extra spacers are provided
for custom adjustments.
Stamp
