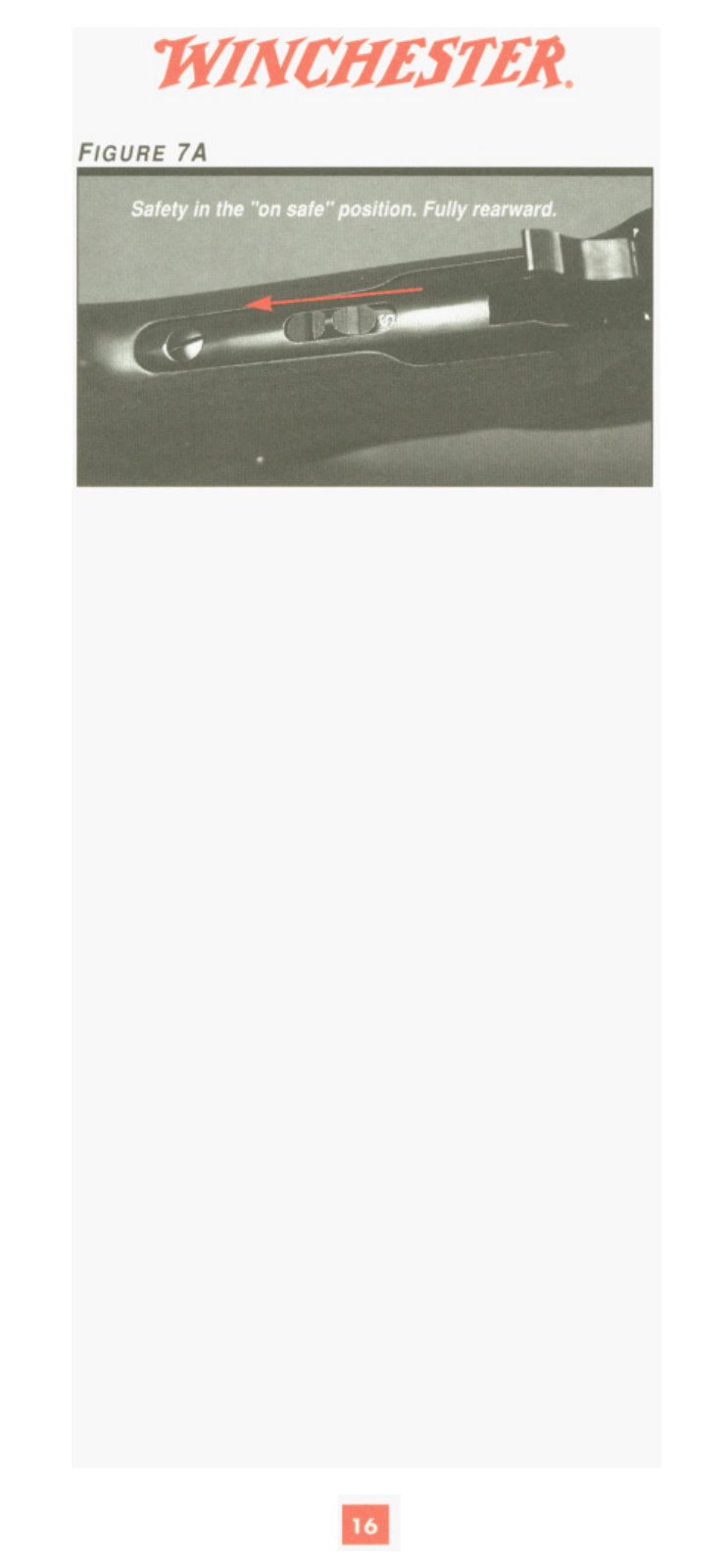

“On” Position.

When the safety is pushed all the way rearward it is

in the “on” position (See Figure

7-A).

In this position

an

“S”

is visible directly in front of the safety. Moving

the safety fully rearward and exposing the

“S”

blocks

the hammer from striking the firing pin.

THIS IS THE RECOMMENDED POSITION

OF

THE SAFETY

FOR

ALL TIMES EXCEPT

WHEN FIRING IS IMMINENT.

“Off”

Position.

When the safety (manual hammer stop) is pushed all

the way forward it is in the

“off”

position (See Figure

WHEN FIRING IS IMMINENT.

In this position,

when the trigger is pulled, the cocked hammer will
fall and strike the firing pin.

If

a cartridge is in the

chamber, the firing pin will strike the primer and fire
the cartridge.

7-B).

THIS IS THE POSITION OF THE SAFETY

USING

THE SAFETY

-

To

place the safety (hammer stop) in the “on” posi-

tion: First, point your rifle in a safe direction, then

place the safety in the “on” position

by

pulling it fully

to the rear with your thumb until the red “warning”
spot is covered

by

the safety and the

“S”

is

visible

(Refer again to Figure

7-A).
