3. With your finger or the edge of a screwdriver, slide
the adjusting screw lock in the slot away from the
adjusting screw until it disengages its notches from
the notches on the adjusting screw.
4. Adjust the fit of the receiver and barrel/forearm by
turning the adjusting screw underneath the barrel
with a standard screwdriver (Figure 9). To tighten
the fit, turn the adjusting screw counterclockwise.
To loosen the fit, turn the adjusting screw
clockwise. Turn the adjustment screw only one
notch at a time.
9 9
Licensee

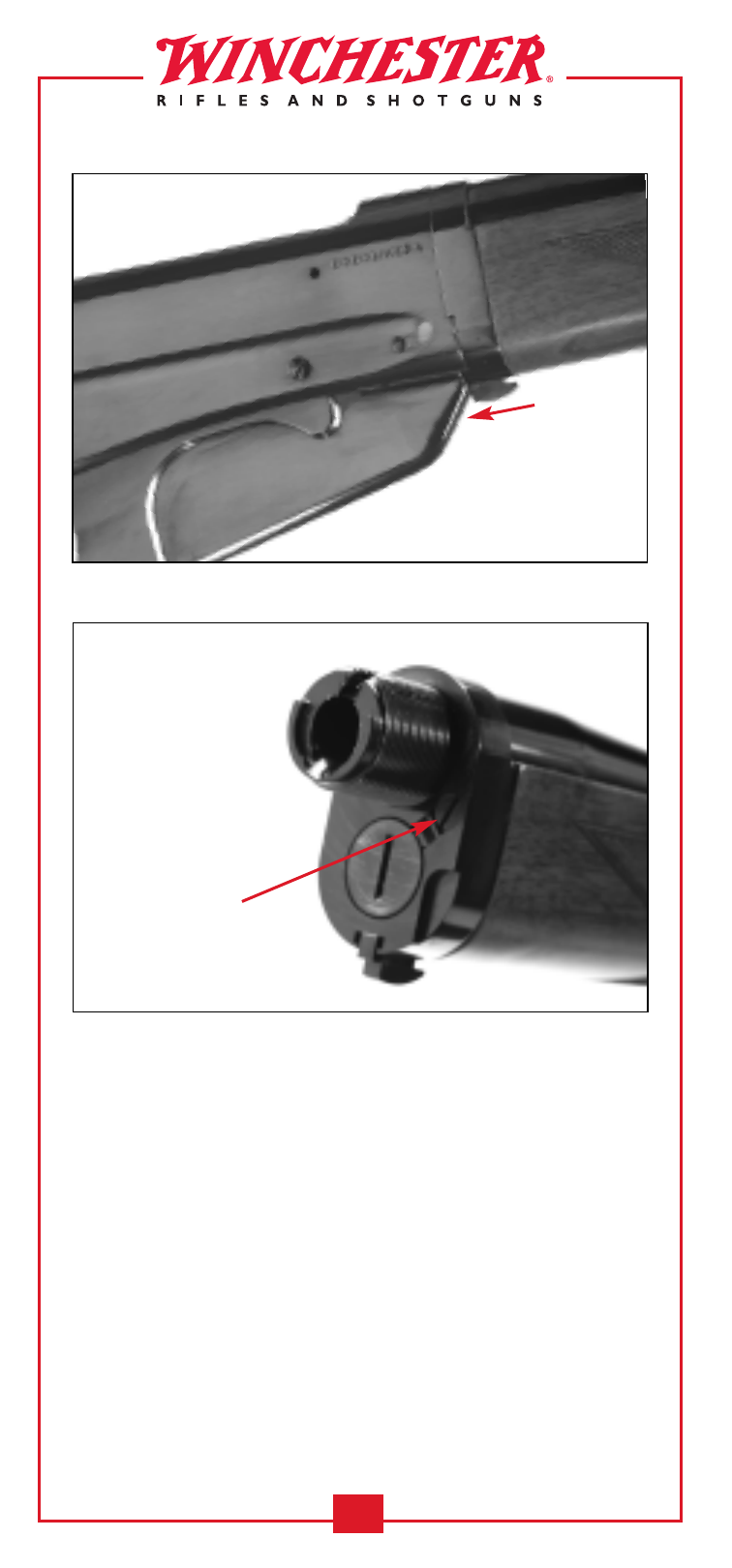

FIGURE 7
FIGURE 8
Slide the barrel
lock towards
the receiver.
Loosen the
Adjusting Screw
Lock Screw.
