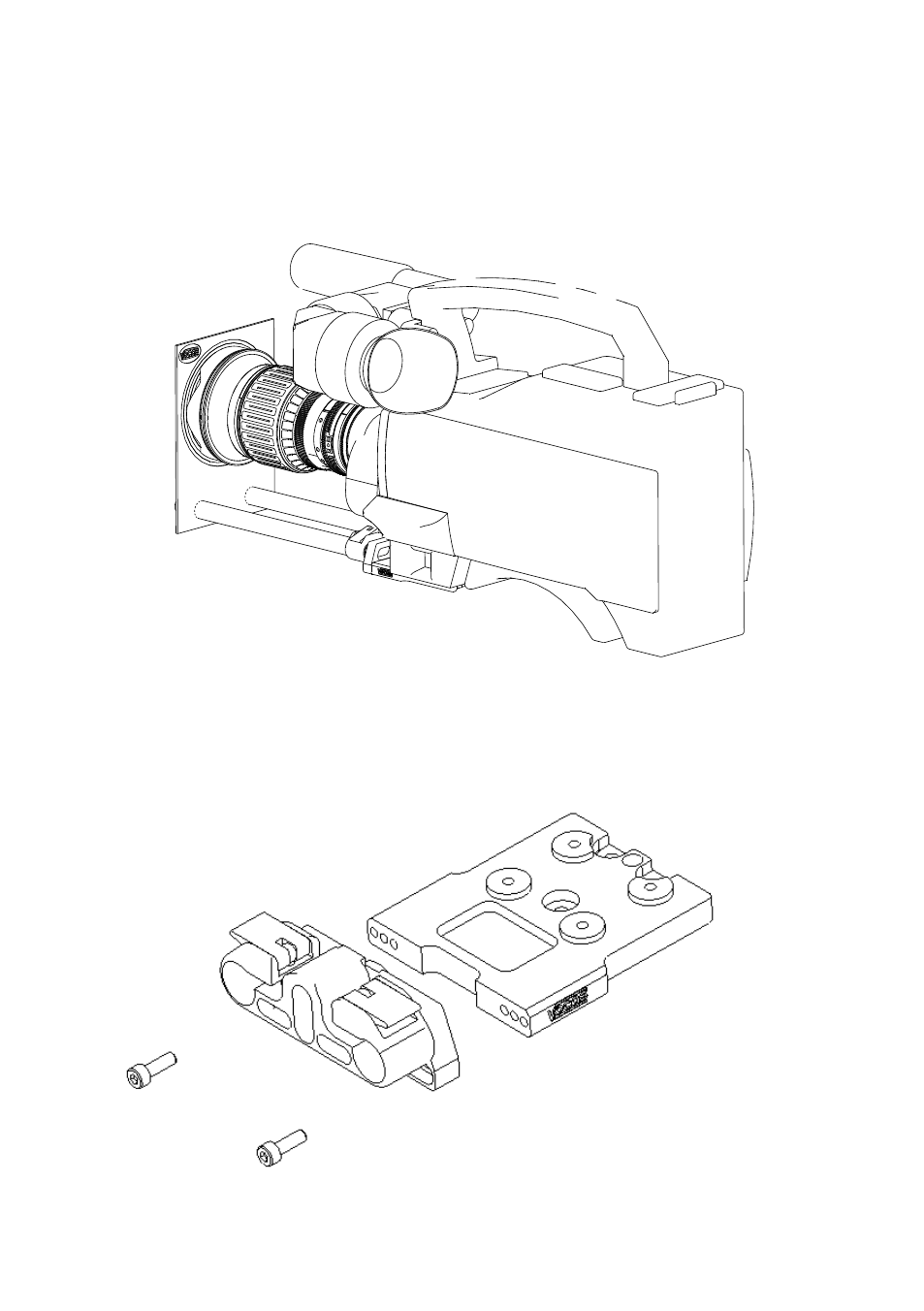

For proper alignment of the tubes, the support can be adjusted in both vertical
and horizontal directions. Please see the “guide to components” which screws
have to be used to adjust the support. To check the alignment, the supplied
“Alignment card” can be used. Slide the two holes in the card over the two
installed 15mm tubes and check if the lens front corresponds with the big circles
on the Alignment card.
The alignment card can also be used as a back focus- or white card.

If more horizontal adjustment is needed, there are more sets of holes for the
horizontal alignment screws available.
