How to adjust the clamping mechanism:
The clamping mechanism can be readjusted for a tighter or looser grip on the
tubes:
1. Flip up the clamper.
2. Remove the 15mm tube.

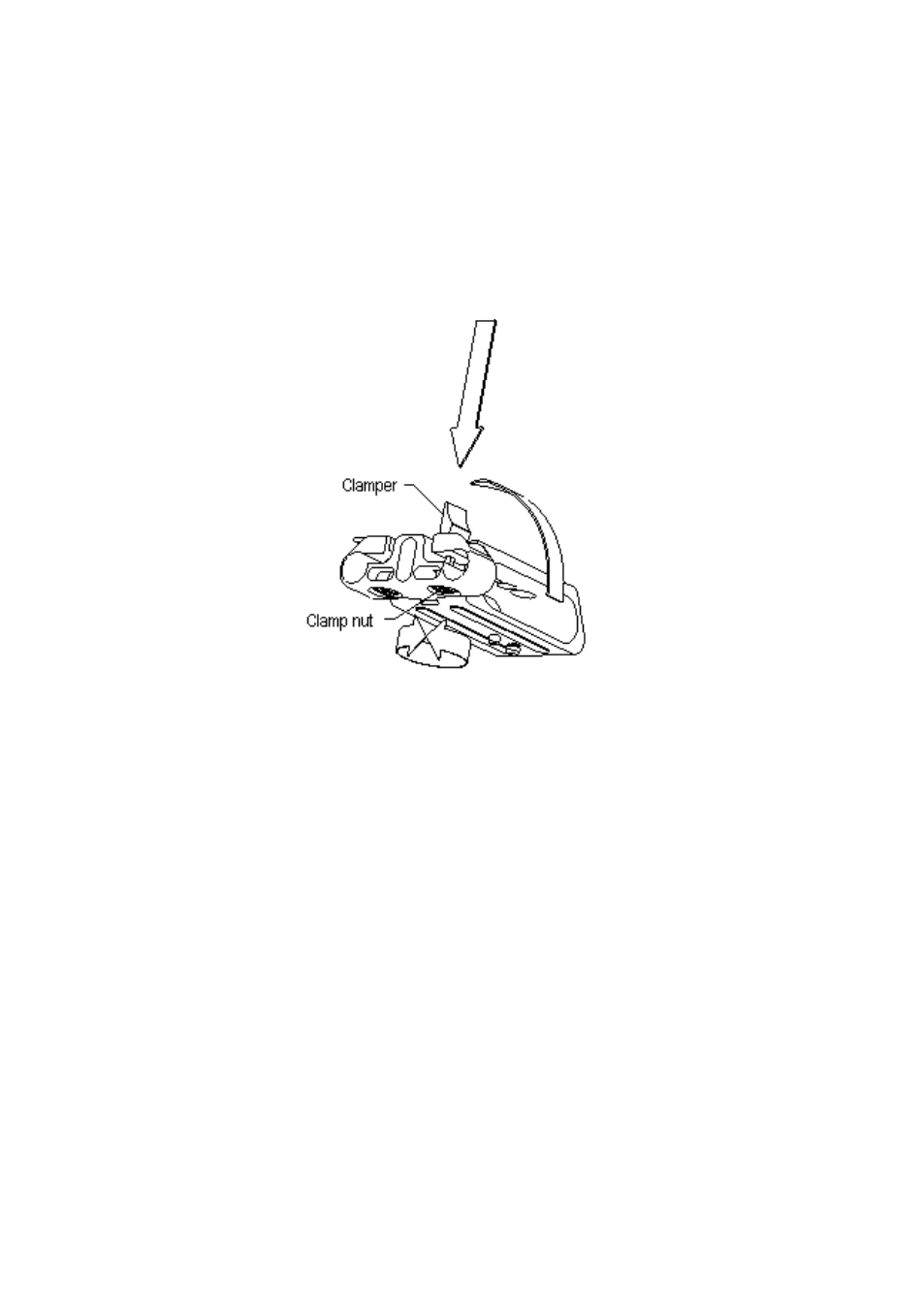

3. To release the clamp nut, push the clamper downwards, in the direction
of the Clamp nut.
4. Rotate the Clamp nut clockwise to tighten, or counter clockwise to
loosen the mechanism.
