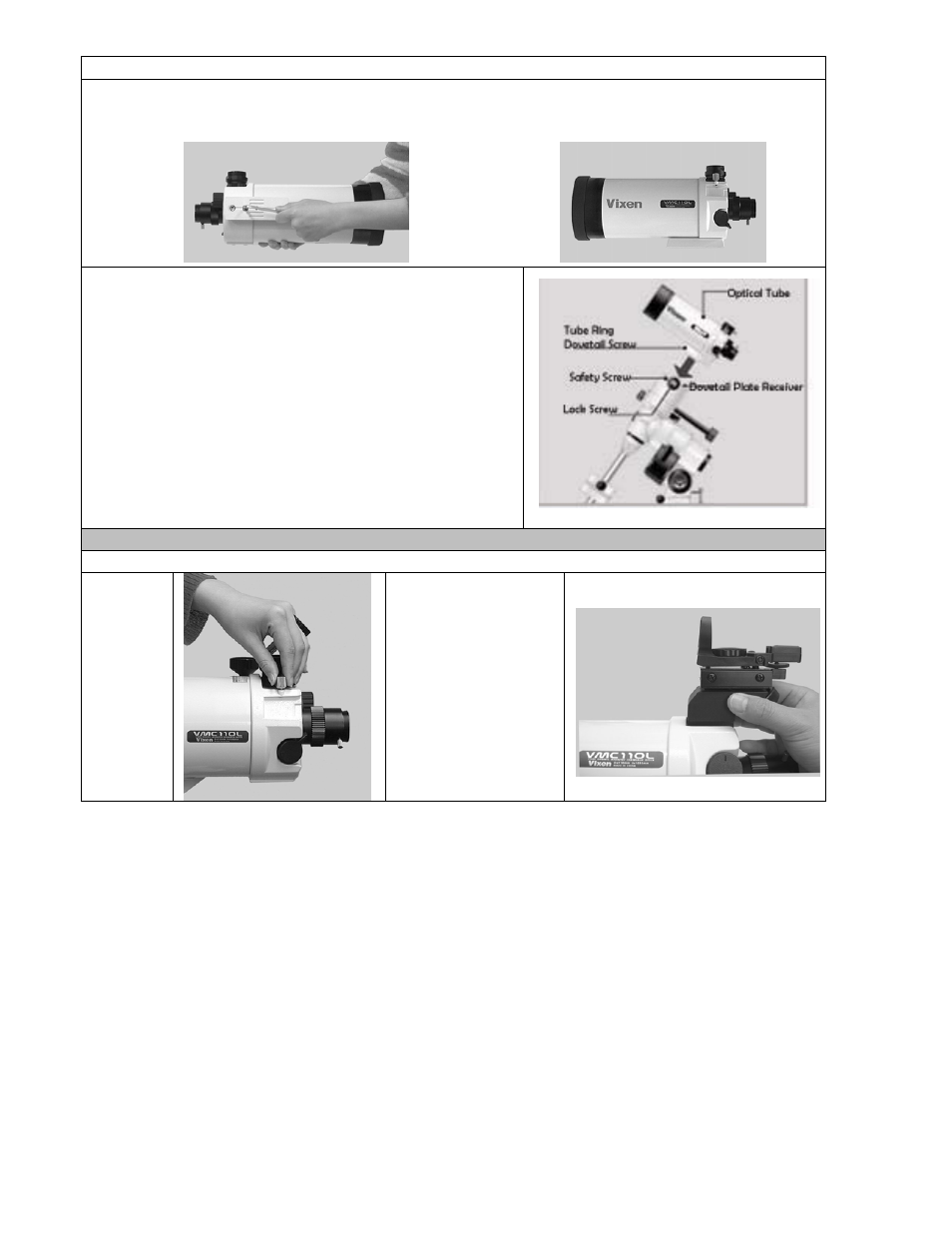

Example: Attaching to the GP2 Mount
*Change the position of the dovetail tube plate on the VMC110L optical tube with the supplied Allen
wrench. If you attach it onto a Vixen mount other than the SKYPOD and PORTA,
remove the dovetail tube plate from the side of the VMC110L optical tube.
*Attach the dovetail tube plate to the bottom of the
VMC110L optical tube as shown in the figure.
*Loosen both the dovetail‐plate lock screw and safety screw
until the tips of these screws no longer extend into the inner
part of the dovetail block. Slide the dovetail‐mounted scope
into the dovetail mounting block of the mount and tighten
the dovetail lock screw (centered on the notch) onto the
dovetail tube plate until snug.
*First tighten the dovetail lock screw, and then tighten the
small chrome safety screw onto the dovetail mounting block
until snug.
ATTACHING THE FINDER SCOPE
Loosen
the
chrome
finder
bracket
lock screw
on the
telescope.
Attach the finder
scope as shown in the
figure. Tighten the
finder bracket lock
screw securely.
