Installing the MMAC-Plus Module
2-6
Installing an FPIM
The 9F106-01 module is shipped without FPIMs. To install an FPIM, follow the
procedure below:
1.
Remove the module if it is installed in the MMAC-Plus chassis.
2.
Remove the blank front cover over the FPIM slot.
3.
Install the FPIM as shown in Figure 2-4. Ensure that the rear connector is
seated firmly before tightening the two mounting screws.

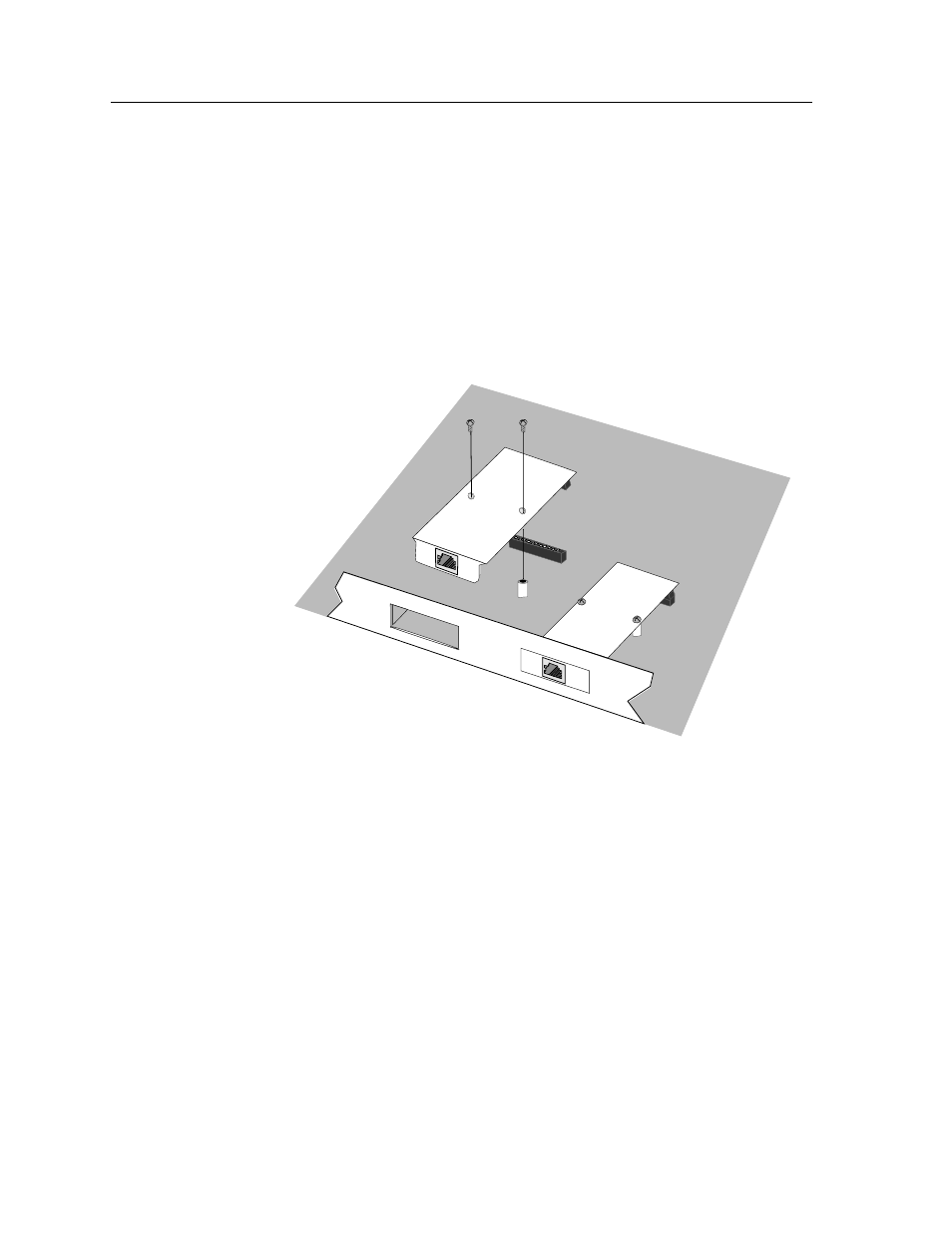

Figure 2-4. Installing an FPIM
