3. Product Instruction

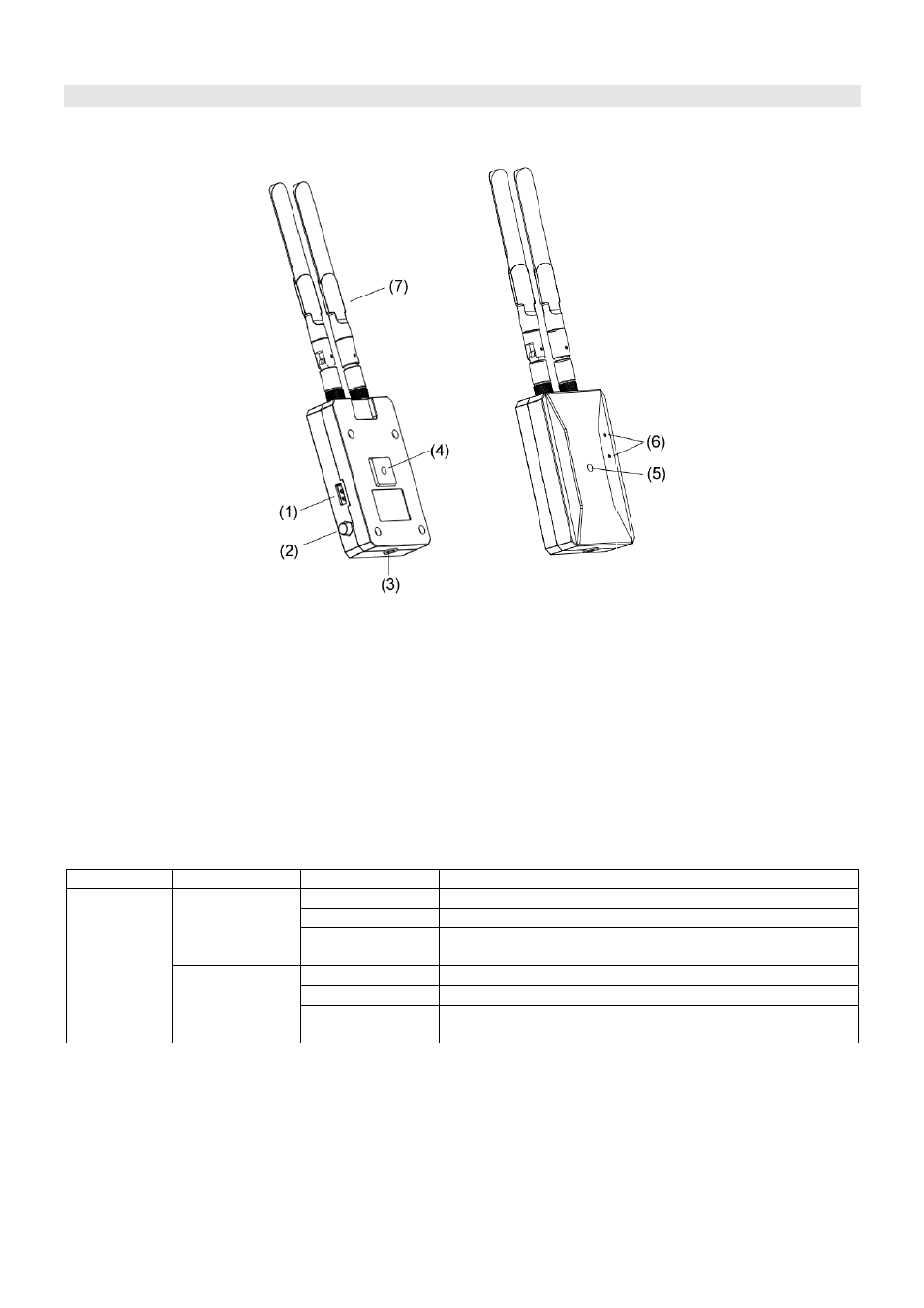

Transmitter S-4913T
Front View Rear View
⑴ HDMI: HDMI input (HDMI-A type connector)
⑵ DC 7-17V: DC Power input socket
Voltage range: DC 7-17V; Connector: 5.5mm/2.1mm Pole-tap
Pin assign: Outer: negative, Inner: positive
⑶ ⑷ ⑸ Installation thread: 1/4”-20 screw thread installation
⑹ LED status indicators
Including Video Signal and Wireless connection condition indicators
⑺ Antenna
The description of LED status indicator
Device
Indicators
Status
Description
Constant On
Wireless connected with the receiver
Normal Flashing Searching the connection with the receiver
NET
Fast Flashing
System fault (Meanwhile the VIDEO indicator is fast
flashing as well)
Constant On
The receiver S-4913R has got SDI Video output
Normal Flashing No SDI Video output at the receiver
S-4913T
Transmistter
Video
Fast Flashing
System fault (Meanwhile the NET indicator is fast
flashing as well)
