SWIT Electronics S-2310 User Manual
Characteristics, Cautions, Specifications

Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference
Characteristics
◆
Daylight 5600K, Color Index Rating > 85
◆
Focusable Beam Spread of 12 – 75 degrees
◆
9,100 – 60,000 Lux/m Luminance
◆
Dimmable: 0-100% Power Output
◆
Removable collapsible Barndoor
◆
U-Shape Light Stand and Hanging Bracket
◆
Silent and flicker free
◆
DMX control, on-board control and remote control
◆
Low electricity draw and cool-to-touch design
Cautions
1. Never disassemble the light or touch its inside with metal
objects to avoid damage.
2. Never solder the LED bulbs by non-professionals
3. Never block the louvers, otherwise LED lighting effect and
lifetime will be greatly reduced
4. Only use the light in the temperature range of -10
~40
.
℃
℃
Specifications
Model
S-2310
LED
200W LED module
Beam angle
12° - 75°
Color
temperature
5600K
Power
≤250W
Working
voltage
AC100V-240V
Dimension
320(W)×350(H)×270(D)mm
Weight
9.25kg
Accessories
Power Supply Ballast w/ Cables, Barndoor
U-Shape bracket, DMX Cables, Handheld
Wireless Remote Control, Security Cable
Luminance
Distance
1m
2m
3m
4m
5m
S-2310
Spot
60000
Lux
16000
Lux
2100
Lux
560
Lux
250
Lux
S-2310
flood
9100
Lux
2100
Lux
370
Lux
125
Lux
57
Lux

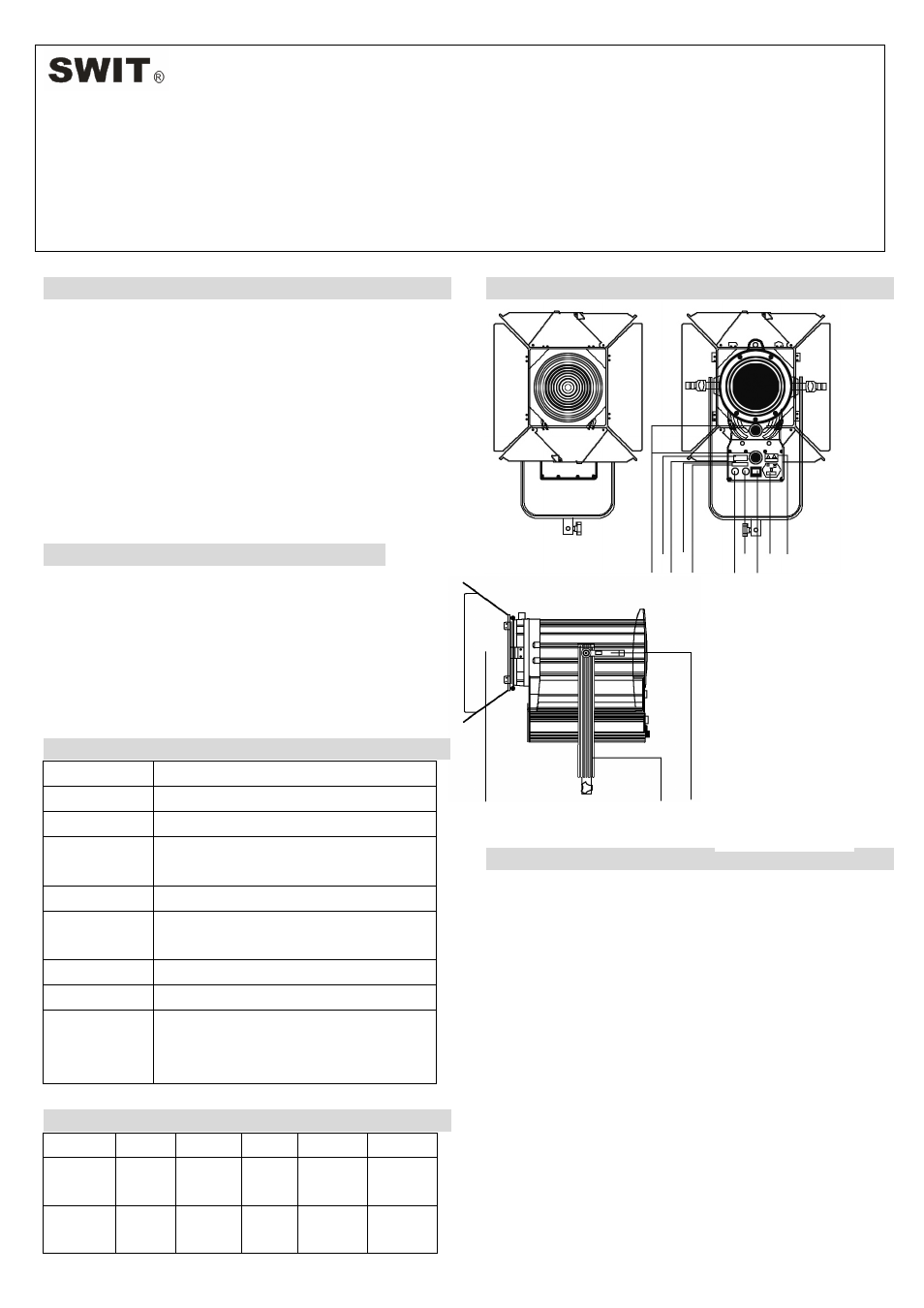

Front and rear view
2 4 7 9 10
1 3 5 6 8
11
12 13
Operation instructions
1. Connect the light with the ballaster by the 9-pin cable,
2. Power the light with the AC power adapter or corresponding
battery, turn it on. Press button “MODE” till the digital display
shows “B***”, *** stands for brightness, from 0 to 100%. Press
button “+””-“, or rotate the dimming knob to adjust the brightness.
3. Rotate the focus knob to adjust between spot and flood.
4. Remote controller: Hold A and D button on the remote controller
for 5 seconds until the buzzer beeps once, and then the controller
is coded to the light. A: increase brightness. D: decrease
brightness. B: flood. C: spot.
5. Hold A and B button for 3 seconds, or press button
“MODE” on
the ballast to change the digital display to “A***”. Now “***” stands
for DMX address. Press button “+””-“ to adjust DMX address from
1 to 512. Connect the light to a DMX light console, and make the
DMX address same, then the light can be controlled by DMX
console. .
LED Fresnel Light S-2310
User Manual
SWIT Electronics Co., Ltd.
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: [email protected]
1. 9 pin socket
2. Digital display
3. Button”+”
4. Button”
-”
5. Mode
6. Dimming knob
7. Focus knob
8. Power switch
9. Power socket
10. DMX socket
11. Barndoor
12. U-shape bracket
13. Fasten knob
