2. Panel Instruction

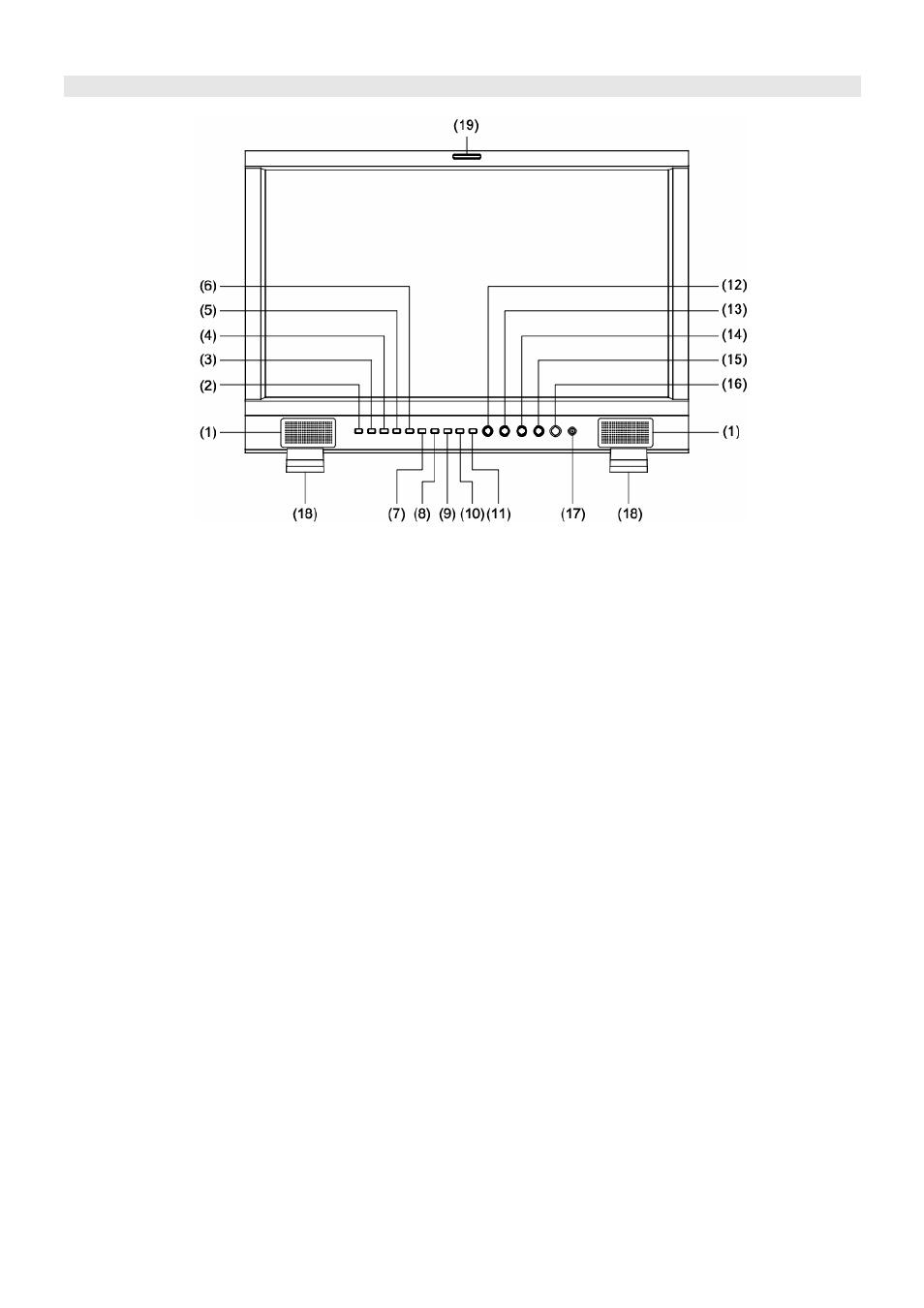

Front view
⑴ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is
plugged in)
⑵ SDI1: Press “SDI1” to switch to SDI input 1
⑶ SDI2: Press “SDI2” to switch to SDI input 2
⑷ HDMI: Press “HDMI” to switch to HDMI input
⑸ CVBS: Press “CVBS” to switch to CVBS input
⑹, ⑺, ⑻, ⑼ F1, F2, F3, F4: User definable function keys
⑽ DISPLAY: Press “Display” to display safe area, scale marker, title and the current input signal information.
⑾ MENU: Press to enter Menu
⑿ ENTER: Select and Apply
Under menu system, revolve “ENTER” to adjust settings and press to apply; and out of menu system,
directly revolve “ENTER” to adjust volume.
⒀ BRIGHT: Revolve “BRIGHT” to adjust brightness value from 0～100. Default value is 50.
⒁ CONTRAST: Revolve “CONTRAST” to adjust contrast value from 0～100. Default value is 50.
⒂ SATURATION: Revolve “SATURATION” to adjust saturation value from 0～100. Default value is 50.
⒃ POWER: Power on/off
Connect with power cable, press the “POWER” to switch on the monitor. Press again to switch off.
Disconnect with power cable if the monitor will not be used for a period of time.
⒄ PHONE：3.5mm earphone socket, for SDI embedded audio, HDMI embedded audio monitoring.
⒅ Desktop Stand Feet
⒆ TALLY Light: Red, Green and Yellow 3-color TALLY indicator
