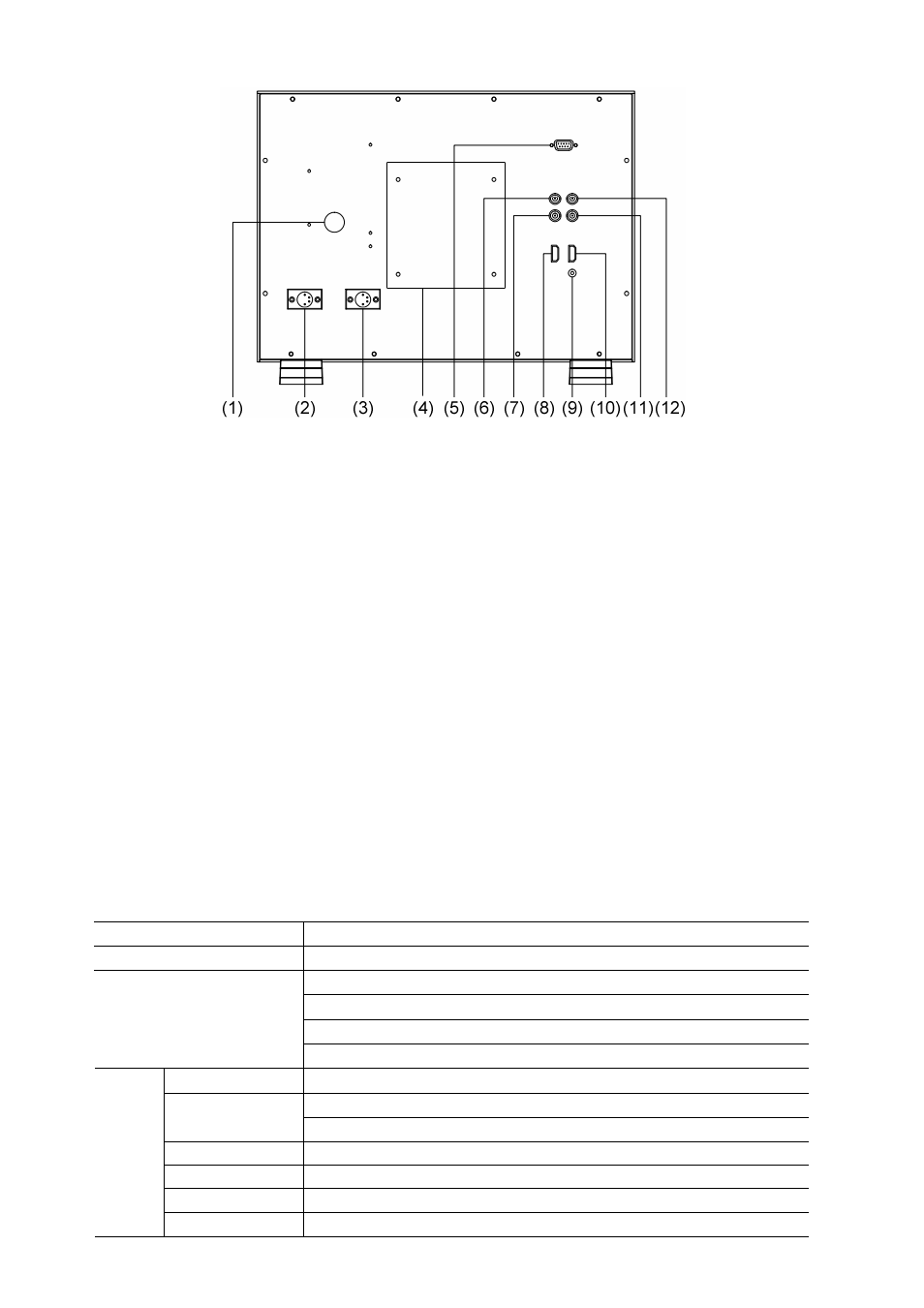

Rear view
⑴ Battery plate Install:
V-mount or Gold mount battery plates install position, with a hole to connect the battery plate power
wires to the main board inside.
⑵ DC IN 11V-17V BACK UP: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive)
⑶ DC IN 11V-17V MAIN: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive)
⑷ VESA Mount: Standard 10×10cm VESA bracket installation
⑸ TALLY controlling port (DB-9)
⑹ SDI-LOOP: 3G/HD/SD-SDI loop through output (BNC connector)
When SDI-IN2 is displayed, the SDI-LOOP outputs the SDI-IN2 signal, and when SDI-IN1 or other input
sources are displayed, the SDI-LOOP outputs the SDI-IN1 signal.
⑺ SDI-IN1: 3G/HD/SD-SDI input (BNC connector)
⑻ HDMI-LOOP: HDMI loop through output
⑼ AUDIO-IN: Analog stereo audio input (3.5mm)
⑽ HDMI-IN: HDMI input
⑾ SDI-IN2: 3G/HD/SD-SDI input (BNC connector)
⑿ CVBS-IN: Composite video input (BNC connector)
Input formats
Input Supported formats
CVBS PAL / NTSC
480i / 576i / 480p / 576p
720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50), 1080psf (30 / 29.97 / 25 / 24 / 23.98)
HDMI
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M 1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
SMPTE-274M
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
SDI
ITU-R BT.656 576i (50)
