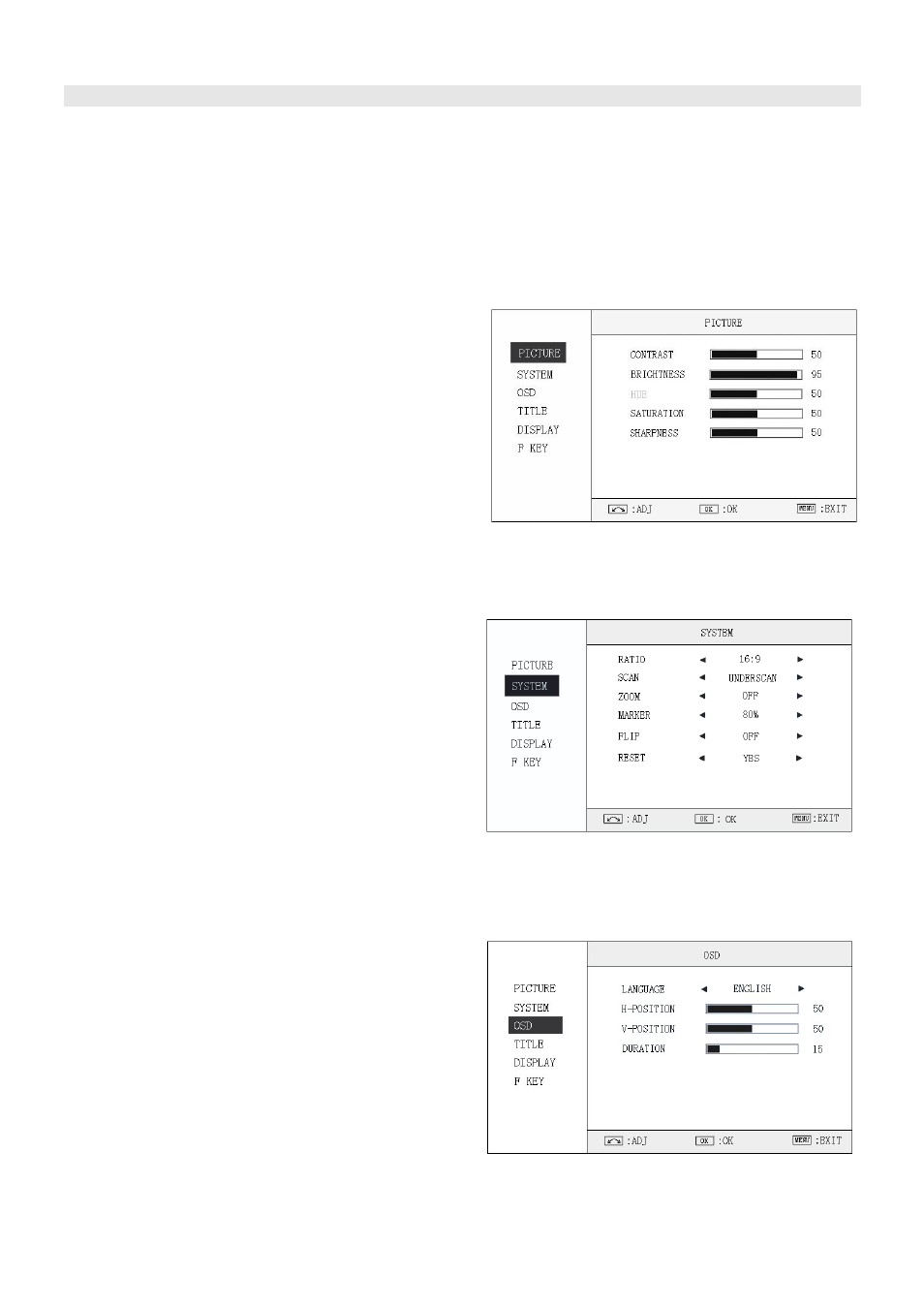

3. Menu Operation
⑴ Press “MENU” and it will display menu system
⑵ Revolve “OK” to select an item. The selected item will be highlighted display.
⑶ Press “OK” to enter the selected item.
⑷ Under menu system, press “MENU” to back to previous menu.
*The menu will automatically save and quit if it remains idle.
3.1 PICTURE submenu
The PICTURE submenu includes:
⑴ CONTRAST: 0-100 value adjustment
⑵ BRIGHTNESS: 0-100 value adjustment
⑶ HUE: 0-100 value adjustment
(Only available under CVBS NTSC input)
⑷ SATURATION: 0-100 value adjustment
⑸ SHARPNESS: 0-100 value adjustment
3.2 SYSTEM submenu
The SYSTEM submenu includes:
⑴ RATIO: Aspect ratio “16:9” / “4:3” selection
⑵ SCAN: “UNDERSCAN” / “OVERSCAN” selection
⑶ ZOOM: “OFF”, “ZOOM1” and “ZOOM2” selection
ZOOM1: Canon DSLR scale zoom-in
ZOOM2: Pixel to Pixel zoom-in
⑷ MARKER: Select and set the safe area scale from
80%, 85%, 90% and 95%.
⑸ FLIP: Select “ON” to flip the picture by 180°.
⑹ RESET: Select “YES” to recover all to factory setting.
3.3 OSD submenu
The OSD submenu includes:
⑴ LANGUAGE: Menu language selection
⑵ H-POSITION: Menu horizontal position (0-100)
adjustment, real-time preview and default value: 50.
⑶ V-POSITION: Menu vertical position (0-100)
adjustment, real-time preview and default value: 50.
⑷ DURATION: Menu timeout setting (5-60)
Set a time (in seconds) in which the menu will
automatically quit if remains idle. Default: 15.
