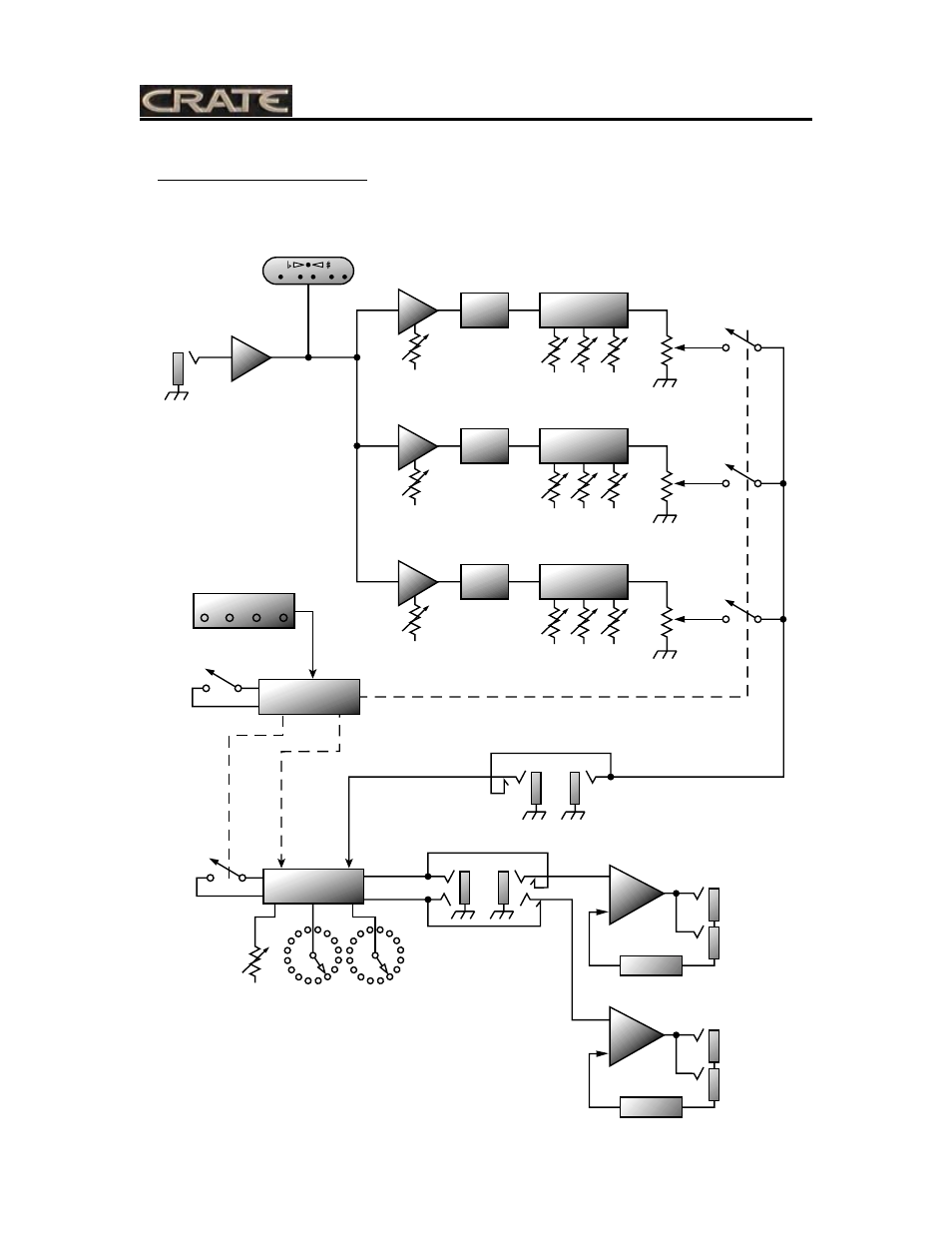

System Block Diagram:
MUTE
REVERB EFFECTS DELAY
INPUT
CHANNEL 1
INPUT
BUFFER
GAIN MID HIGH LOW
LEVEL
FLEX
WAVE
(LOW
GAIN)
CHANNEL 2
GAIN MID HIGH LOW
LEVEL
FLEX
WAVE
(MEDIUM
GAIN)
CHANNEL 3
GAIN MID HIGH LOW
LEVEL
FLEX
WAVE
(HIGH
GAIN)
SWITCH
CONTROLLER
DSP
TAP/
SAVE
DSP
A/B
FOOTSWITCH
1 2 3 4
TUNER
A BC D EF G
POWER
AMP 1
SPEAKER
OUTPUTS
LEFT
(CHORUS
WET)
RETURN
MONO EFFECTS LOOP
SEND
SEND
STEREO EFFECTS LOOP
RETURN
DAMPING
POWER
AMP 2
SPEAKER
OUTPUTS
RIGHT
(CHORUS
DRY)
DAMPING
VTX200
Three-Channel Guitar Amplifier with Advanced DSP
