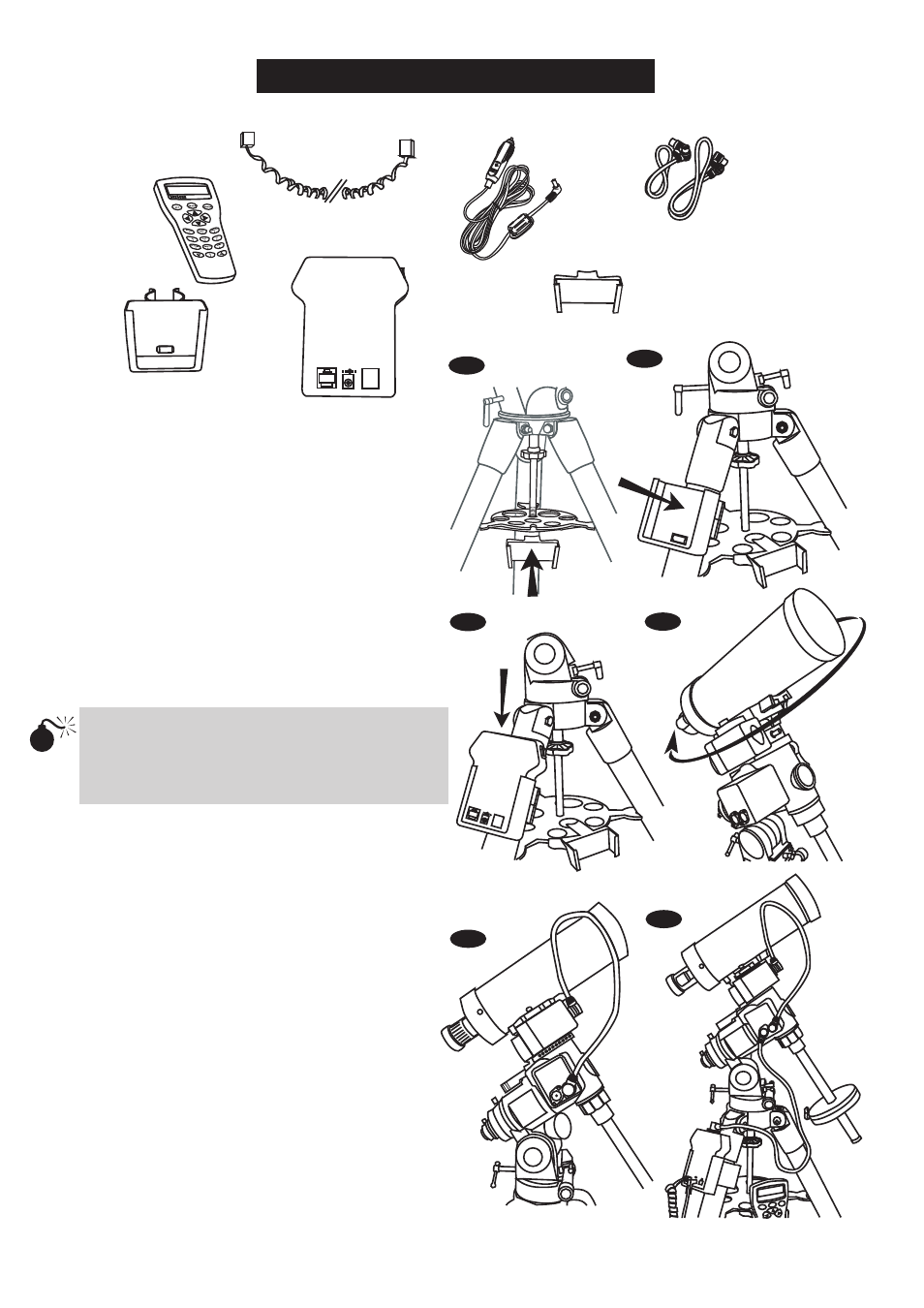

Locate the hand control holder. Slide the holder
onto the accessory tray as shown in Fig.1.
Point the mount to the North, or South in the
Southern Hemisphere. Clip the motor controller
holder onto the leg that's on the right hand side
of the mount, as seen in Fig.2.
Slide the motor controller into the holder, as
seen in Fig.3
Rotate the mount in Dec axis so that the Dec
motor is on the same side of the receptacles of
the mount, as seen in Fig.4.
1)
2)
3)
4)
Locate the short motor cable. Plug one end of
the cable into the receptacle labeled "Dec.IN",
and the other into the the receptacle labeled
"Dec. OUT" on the mount. (Fig.5)
Locate the long motor cable. Plug one end of
the cable into the motor controller and the
other into the receptacle labeled "R.A. IN" on
the mount. (Fig.6)
The hand control cable has a RJ-45 connector
on both ends. Plug one end into the hand
control and the other into the outlet on the
motor controller.
Locate the power cord. Make sure that the
power switch on the motor controller is OFF.
Plug the cigarette lighter end of the cable into
the battery and the other into the motor
controller.
5)
6)
7)
8)
Fig.1
Fig.2
190107V1
EQ3 SynScan INSTALLATION
SETTING UP
CONTENTS
CONNECTING THE CABLES
Fig.3 Fig.4
Hand Control
Hand Controller Auto Guide
DC 12V
Motor Controller
Power Cord
Motor Cables
Hand Control
Holder
Motor Controller
holder
Hand Control Cable
Fig.5
Fig.6
To avoid potential electronic-magnetic interference
to other devices, the motor controller holder must be
clipped firmly onto the stainless leg and the motor
Hand Controller
Auto Guide DC 12V
