Revel M20 - Manual (Page 9)

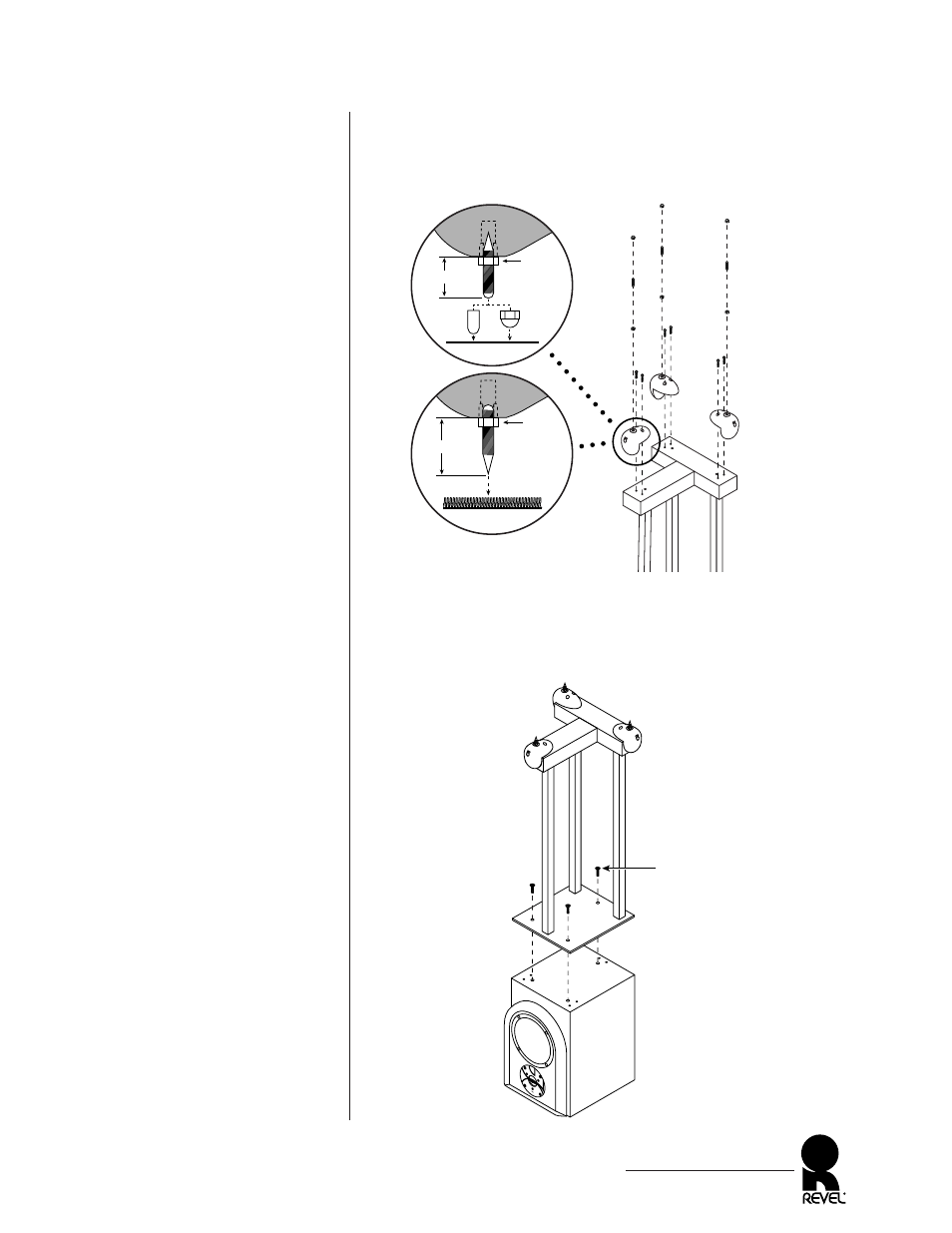

Figure 7. Installing feet
and spikes.
Figure 8. Installing the
assembled REVEL
PERFORMA PEDESTAL 1
onto the REVEL PERFORMA
M20 loudspeaker.
4. Place the stand as shown in Figure 7 and install the feet (from
Step 1) onto the bottom of the ‘T’ base. Thread spikes about
halfway into each foot and use the wrench to tighten each one
with a locking nut (see details below).
5. Place your REVEL PERFORMA M20 loudspeaker as shown in
Figure 8 onto a carpeted surface or soft towel. Attach the assem-
bled stand with three 8-32 x 3⁄4" flat head screws. Turn the
unit upright. Repeat all steps for the other stand.
REVEL PERFORMA M20
Owner’s Manual
9
(3) Spikes
(3) Covers
(optional)
(3) Nuts
Lock Nut
CARPETED FLOORS
spike end
Foot
1 1⁄ 8" max.
Spike
7⁄ 8" max.
Lock Nut
HARD FLOORS
round end
or Dome
Cover Slip
Cover
Foot
Spike
(3) Feet
(6) Screws
(for Feet)
M20
Performa
Pedestal 1
(Assembled)
(3) 8 - 32 x 3 ⁄4"
Flat Head Screws
(Start All Screws
Before Tightening)
