Note: All of the parts shown in the following illustrations are supplied
with the C-Stands.

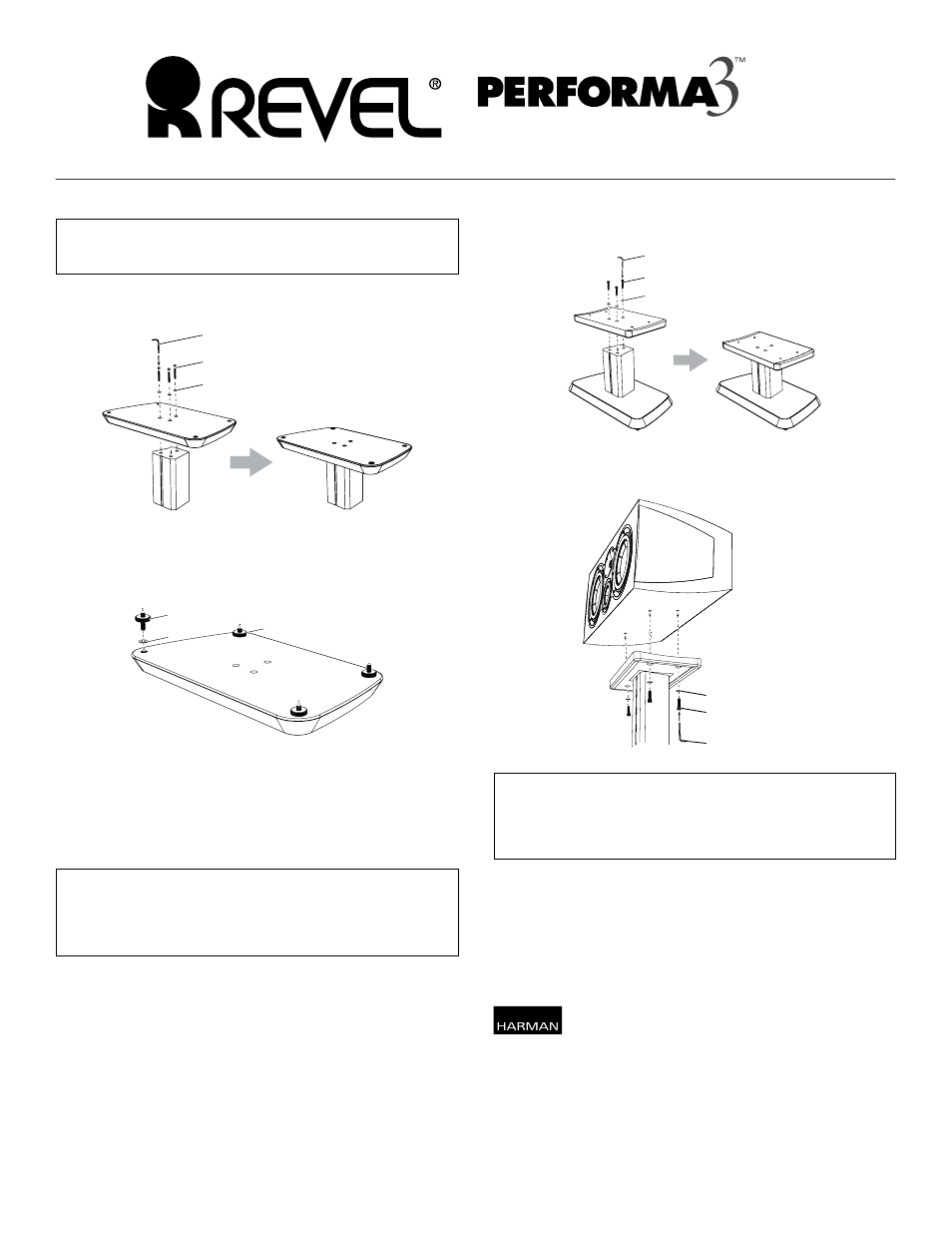

1. Attach the stand base to the stand riser as shown in the illustration below.
Large
Allen Wrench
Black M6 x 50mm
Fine-Thread Bolt
Washer
2. Spin the clamping rings onto the spikes and insert the spikes into the bases
as shown in the illustration below. You can install the spikes with either the
pointed end or rounded end protruding from the base.
Rounded end out
(wood or tile floors)
Pointed end out
(carpeted floors)
Spike and
Locking Ring
Washer
• If the stand is to be placed on a carpeted floor, install the spikes with the
pointed ends protruding from the stand base.
• If the stand is to be placed on a wood or tile floor, install the spikes with
the round ends protruding from the stand base.
After determining the final locations for the speakers you can place coins under
the spikes to protect the floor surface from damage.
Note: If you wish you can install the spikes with the pointed ends
protruding from the stands for placement on wood or tile floors. In this
case you must place coins or similar items under the spikes to avoid
damaging the floor surface.
Rotate the locking ring clockwise to firmly secure the spike to the cabinet.
Make sure to thread the locking rings of all four spikes to achieve a level
balance when the stand is placed rightsideup on the floor.
3. Attach the stand top to the stand riser as shown in the illustration below.
Large Allen Wrench
Black M6 x 30mm
Fine-Thread Bolt
Washer
4. Attach the speaker to the stand as shown in the illustration below. Only
Revel Performa3 C208 and C205 speakers can be attached to the C-Stand.
Small
Allen Wrench
Black M8 x 30mm
Fine-Thread Bolt
Washer
IMPortANt: If you are attaching the C208 or C205 to the C-Stand
you cannot use the adjustable feet that were included with the
speaker. the C-Stand places the speaker at the proper angle for
seated listeners without requiring additional adjustments.
