Brinkmann 4 Burner Gas Grill User Manual
Page 29
28

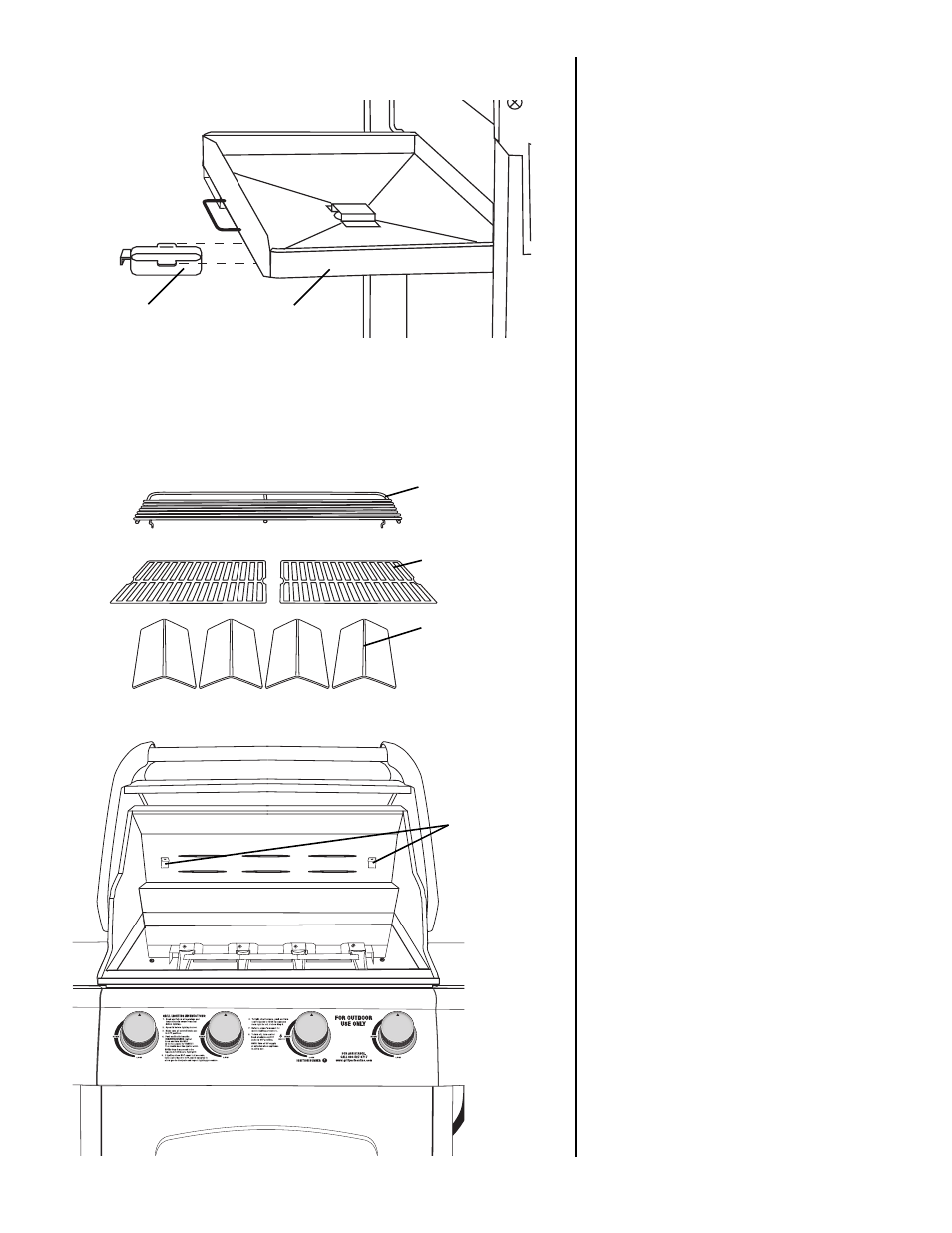

Step 14
Insert grease tray into opening on
backside of grill. Make sure to slide
tray onto tracks as illustrated.
Step 15
Place the heat distribution plates
on lower level of grill body
assembly directly above burners.
Step 16
Place cooking grills on support
ribs directly above heat
distribution plates.
Step 17
Place warming rack in brackets so
that it sits above the cooking grills.
Cooking Grills
Heat
Distribution
Plates
Warming Rack
Brackets
Grease Tray
Grease Cup
