OSD Audio ISS8 User Manual
Audio, Owner’s manual, Iss4

OSD
AUDIO
R
Protected Loudspeaker Switcher
Please read the Manual carefully before operating this unit.
and value in everything we make. To ensure you get the most out of your new ISS468, please take a moment to read this manual before you get started.
WARNING
Owner’s Manual
OSD Audio • 1405 Pioneer St • Brea • CA • 92821 • www.osdaudio.com • Tel (562) 697-2600 • Fax (562) 697-2668
ISS4
ISS6 ISS8

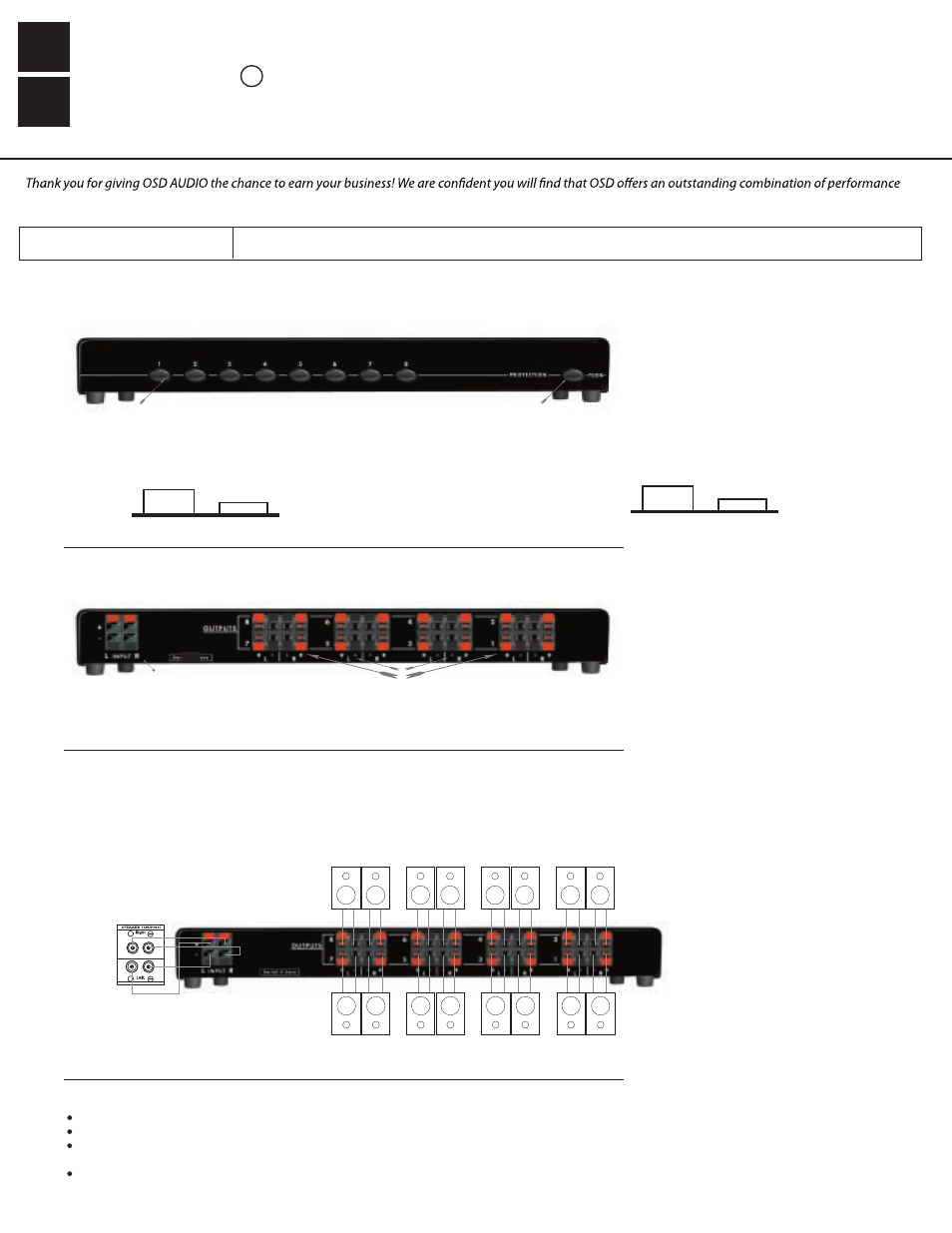

Controls
1
Loudspeaker selectors 1 through 8 – Press the button in to listen
to the desired loudspeakers.
2
Single Pair Direct Switch – Impedance protection switch for the
amplifier/receiver. Use as directed in this owners manual.
1
2
Front Panel
3
Connection from amplifier – from the L(left) and R(right)
loudspeaker output of your receiver or amplifier (100 watts
MAX)
4
Loudpeaker Connections – connections to be made from the
QLS8.1 to the desired loudspeakers, with the corresponding
selector on the front panel.
Rear Panel
3
4
Typical Hook Up
The diagram below shows an overview of a typical system using 8 loudspeaker pairs.
Overview of typical system
Installation Tips
18 or 16 gauge stranded loudspeaker wire is recommended. 14 gauge is recommended for runs longer than 50 feet.
You can mix any combination of 4, 6, 8 and 16 ohm loudspeakers
Wire according to local laws. Specific "CL" fire rating may be required according to your local building codes. Your dealer may know
more about obtaining such wire.
Avoid running close to AC power wiring for safety and to avoid the possibility of picking up any noise.
+
+
Connect to receiver/amplifier R/L
loudspeaker output
Loudspeaker OFF
Loudspeaker ON
Amplifier
Single Pair
OFF
Single Pair
Engaged
