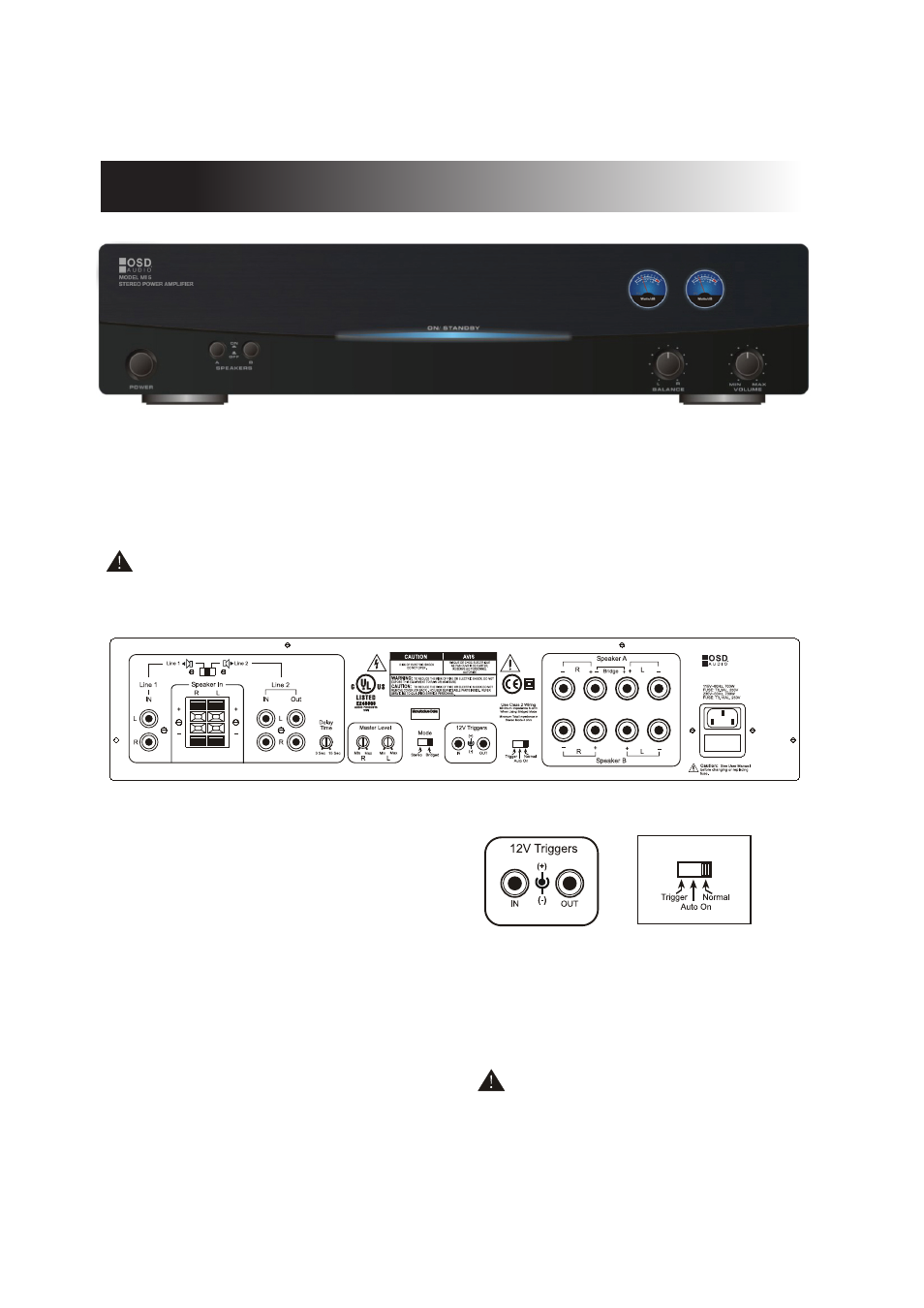

The MI5 Powered Amplifier can be turned on and off independently
via a switch on the front panel, by signal sensing, or remotely by a
triggered DC input. There is a switch located on the lower edge of
the rear panel of the amplifier to select how you would like to turn
on the MI5 power Amplifier. If you would like to control the unit’s
power On/Power off status manually from the front, place the
switch in the unit’s power On/Power off status by means of signal
sensing, place the switch in the “Auto On” position. If you would
like to control the unit’s power On/Power off status by a DC
Remote trigger, place the switch in the ”TRIGGER” position, and
connect the remote triggering device to the terminal labeled “
TRIGGER IN” next to the switch.
MI5 Powered
Amplifier
Congratulations on your purchase of OSD Powered Amplifier.
Note: If any part of this product is damaged or missing,
Please call OSD Audio Return Department
At (714) 447-9880
Using the controls/ Front Panel
Power
MI6 Powered Amplifier. Please take a few moments to read this
entire manual, and be sure to retain this document for future
reference please read and observe all safety instructions detailed
on page.
The front panel switch will manually switch the MI5 Powered
Amplifier on or off. A blue led behind the faceplate lens indicates its
power status. Whenever the amplifier’s power switch is in the “ON”
position and the amplifier is in ”active” status the lens is illuminate
blue. If the amplifier is “ON” but in the “standby” status the lens is
illuminated RED.
You should use a 3.5mm phone plug in the “IN” connector to make
this connection. The tip of the connector is positive, and the sleeve
of the connector is negative. A second terminal in the same block is
labeled “OUT”. This allows for remote turn-on of other devices
when the MI5 powered Amplifier is powered on. Use the same
polarity for the terminals of this plug. Please read the owner’s
manual for any devices you are attempting to connect in this
manner to ensure compatibility.
Note: The front panel power switch must be in the “ON”
Position for the triggers or “Auto ON” features to operate.
MODEL MI5
Using The Controls/ Back Panel
Power
3
